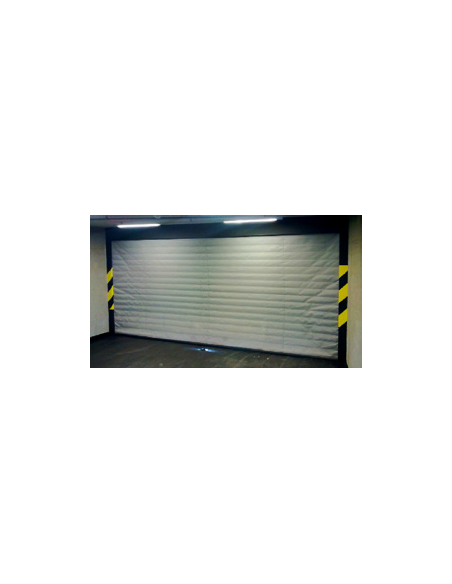

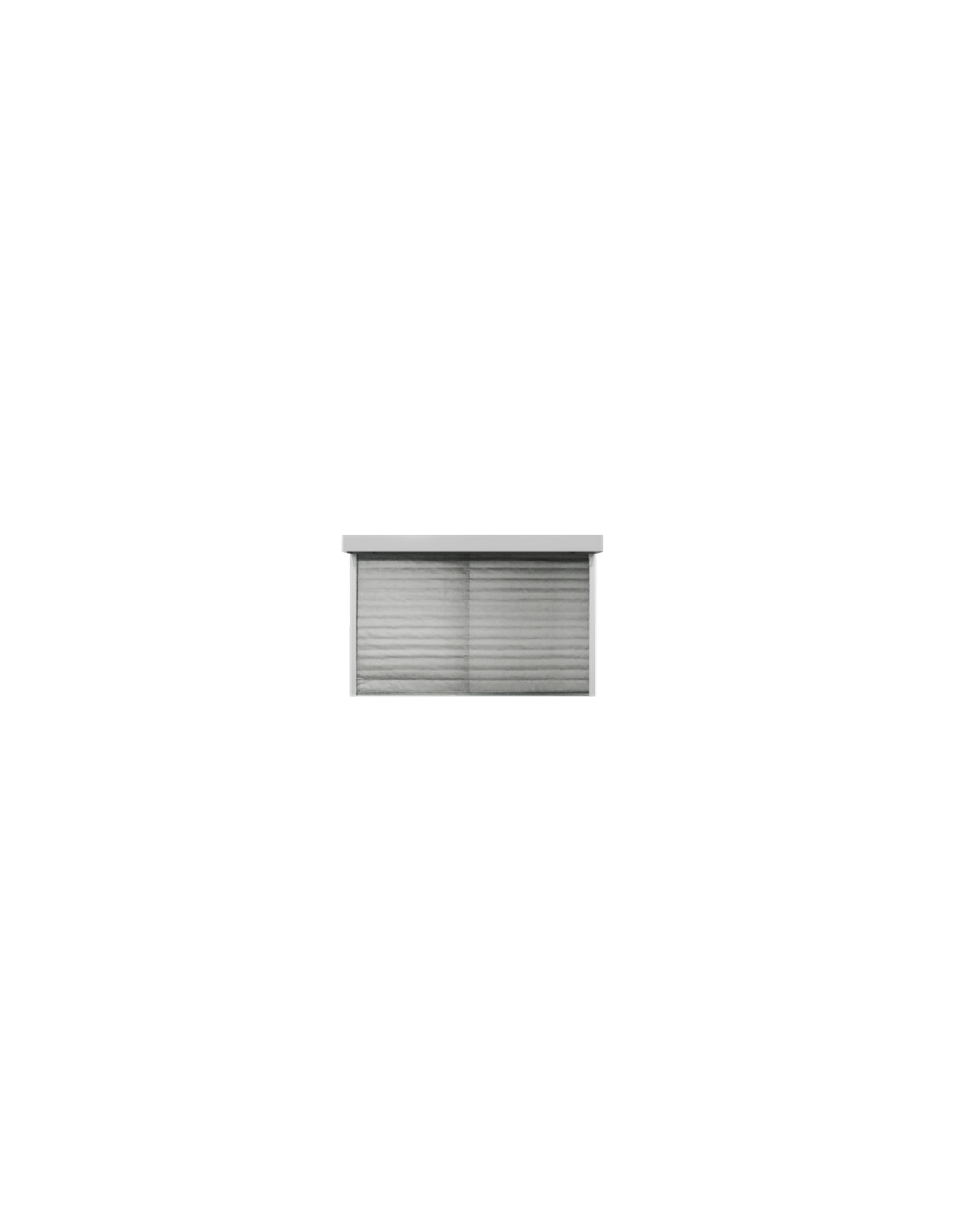

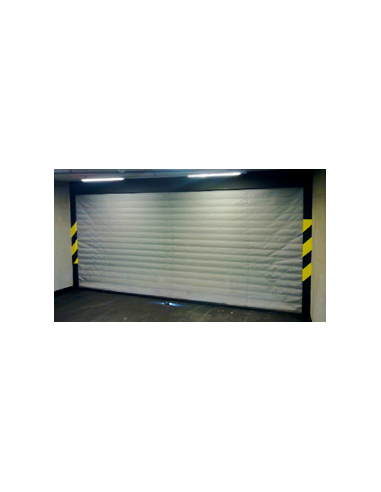

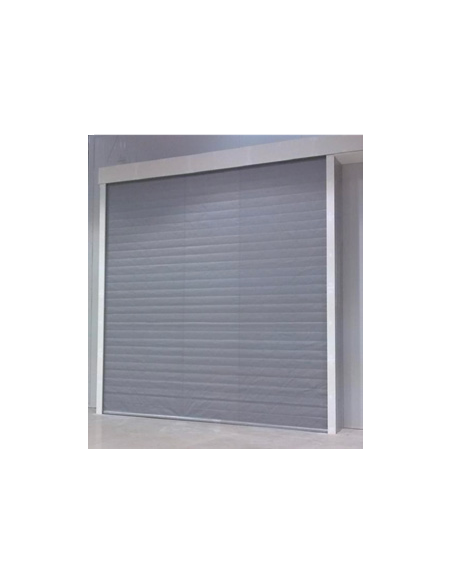

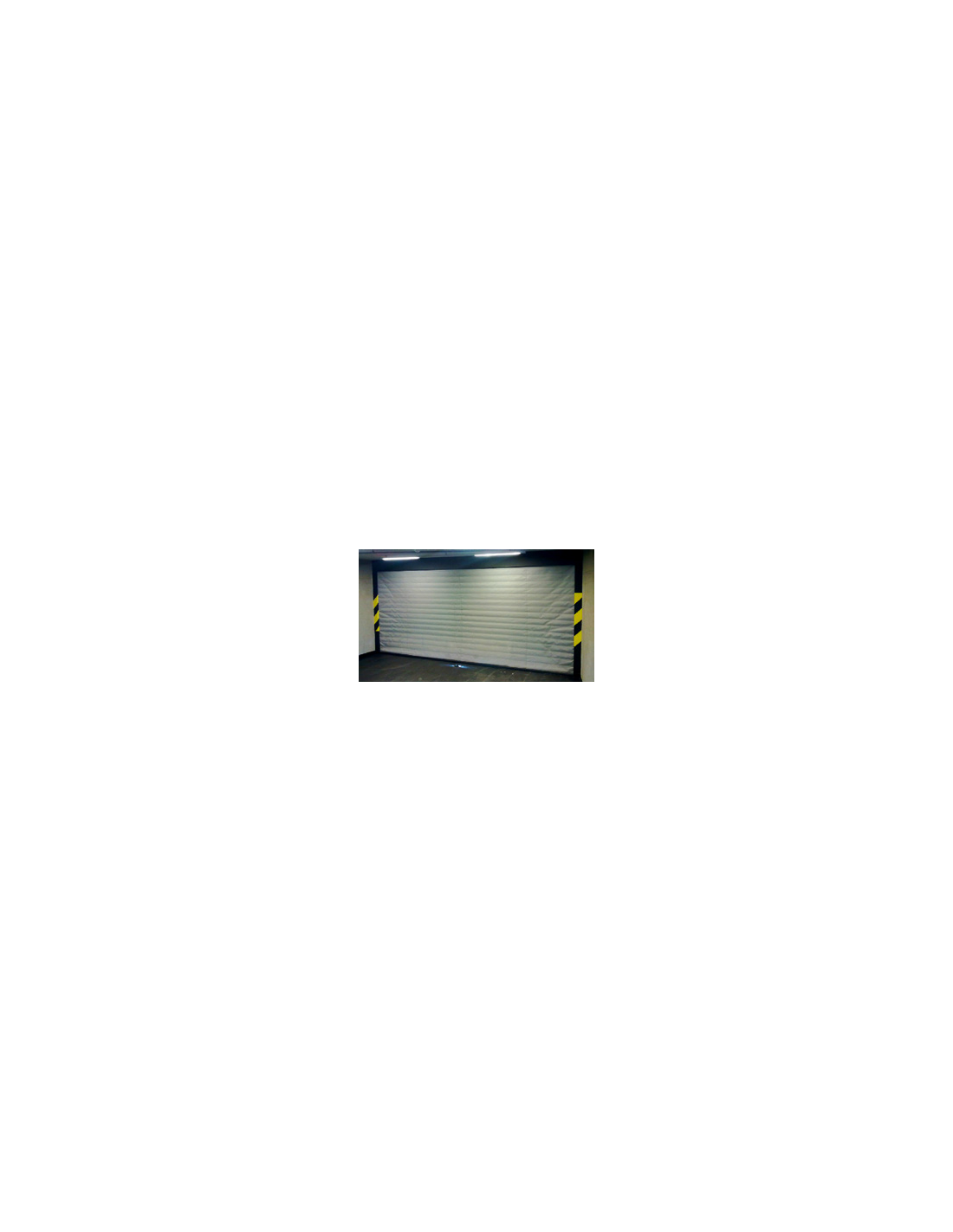

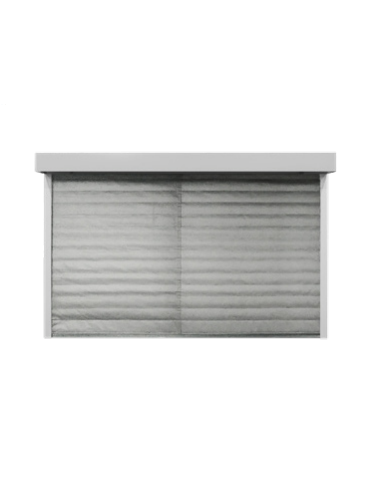

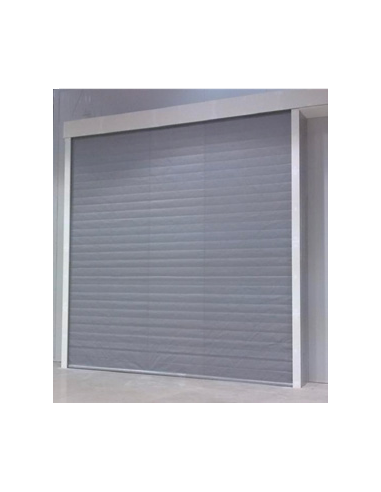

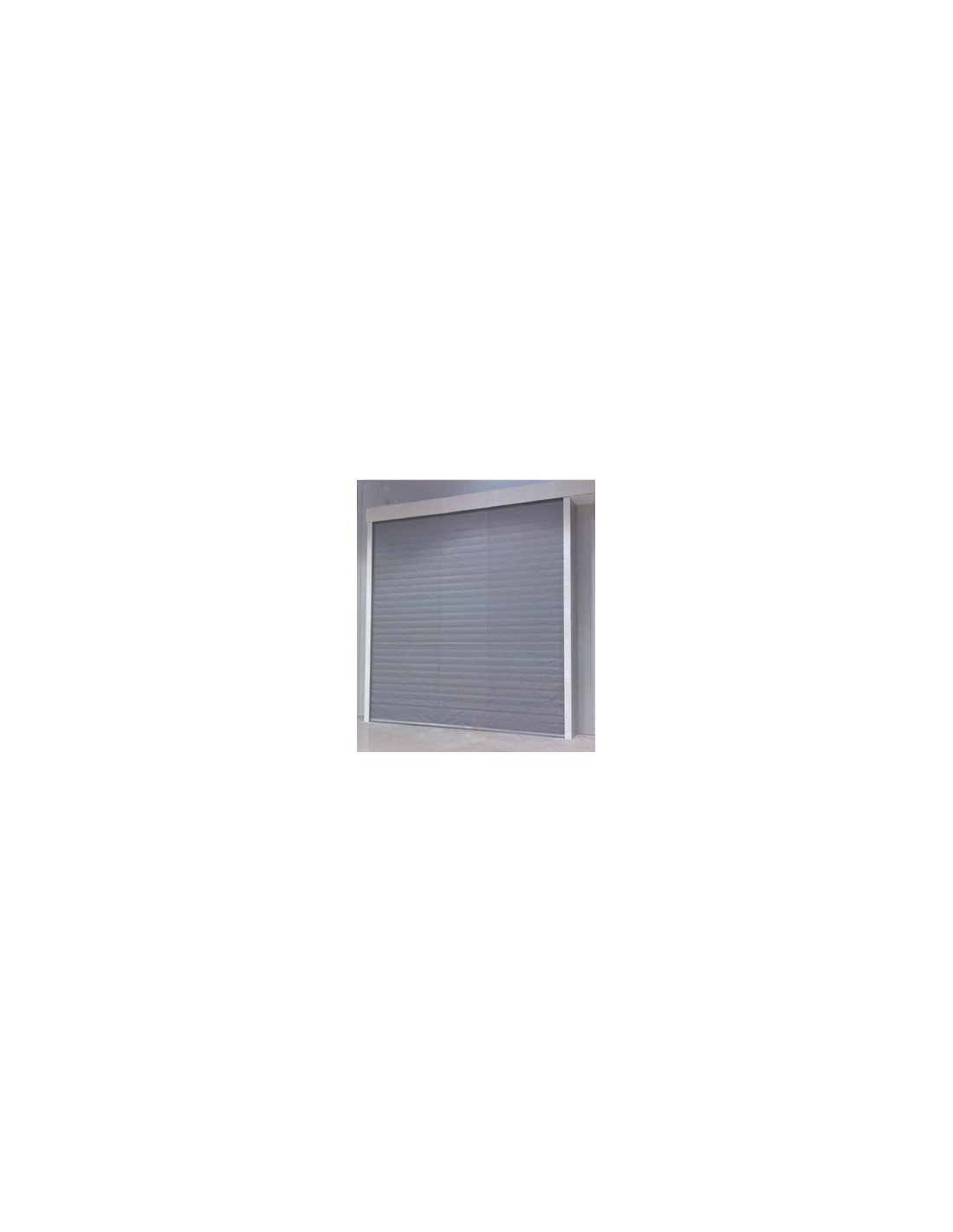

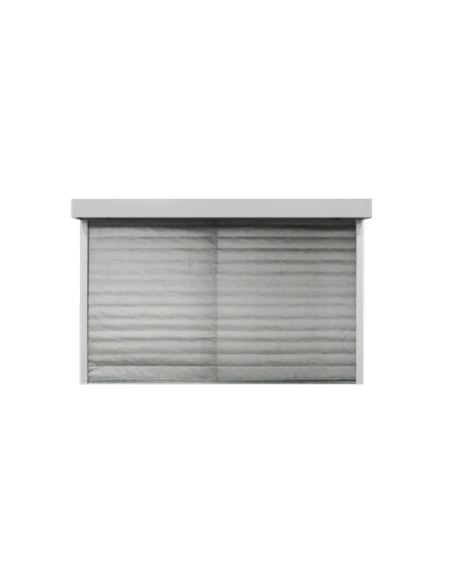

A lightweight, flexible two-piece roller fire curtain in EI class protects against fire and thermal radiation. The system consists of two layers wound on two shafts.
The curtains are manufactured using membrane technology from a special multi-layer composition with an outer grey fabric and side reinforcements. Fire motors ensure gravitational closing, and the integrated fall protection allows for a safe, controlled descent. The EI 120 version requires a smaller lintel than a single-part curtain.
| Product type | Flexible two-piece roller blind |
|---|---|
| Direction of movement | Vertical |
| Purpose | Closing vertical openings in building partitions |
| Fire resistance class | EI 60, EI 90, EI 120 |
| Certificate | CE 1812-CPR-1577, issued by Efectis [No. 1812] |
| Standards | EN 16034, EN 13241 |
| Curtain weight | 2.5 kg/m² |
| Maximum dimensions | CE 8,000 × 18,000 mm / 9,740 × 10,000 mm (W × H) |
| Minimum installation dimensions | Lintel 520 mm, sides 200 mm |
The product is suitable for industrial, commercial, logistics, warehousing, infrastructure and special purpose facilities that require a certified fire, smoke control, acoustic, ballistic or electromagnetic shielding solution. Specific dimensions, configuration and installation conditions are selected according to the project.
The solution must be selected based on the opening dimensions, partition type, required resistance class, installation conditions, control logic and integration with building security systems. Additional alarm, security, anti-corrosion and control options are available.
