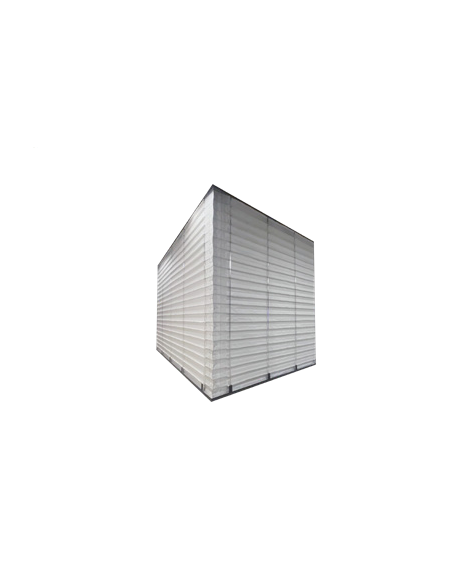

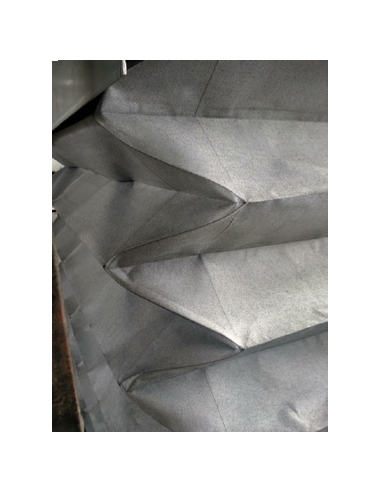

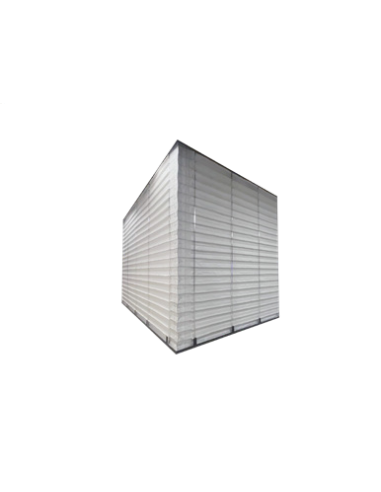

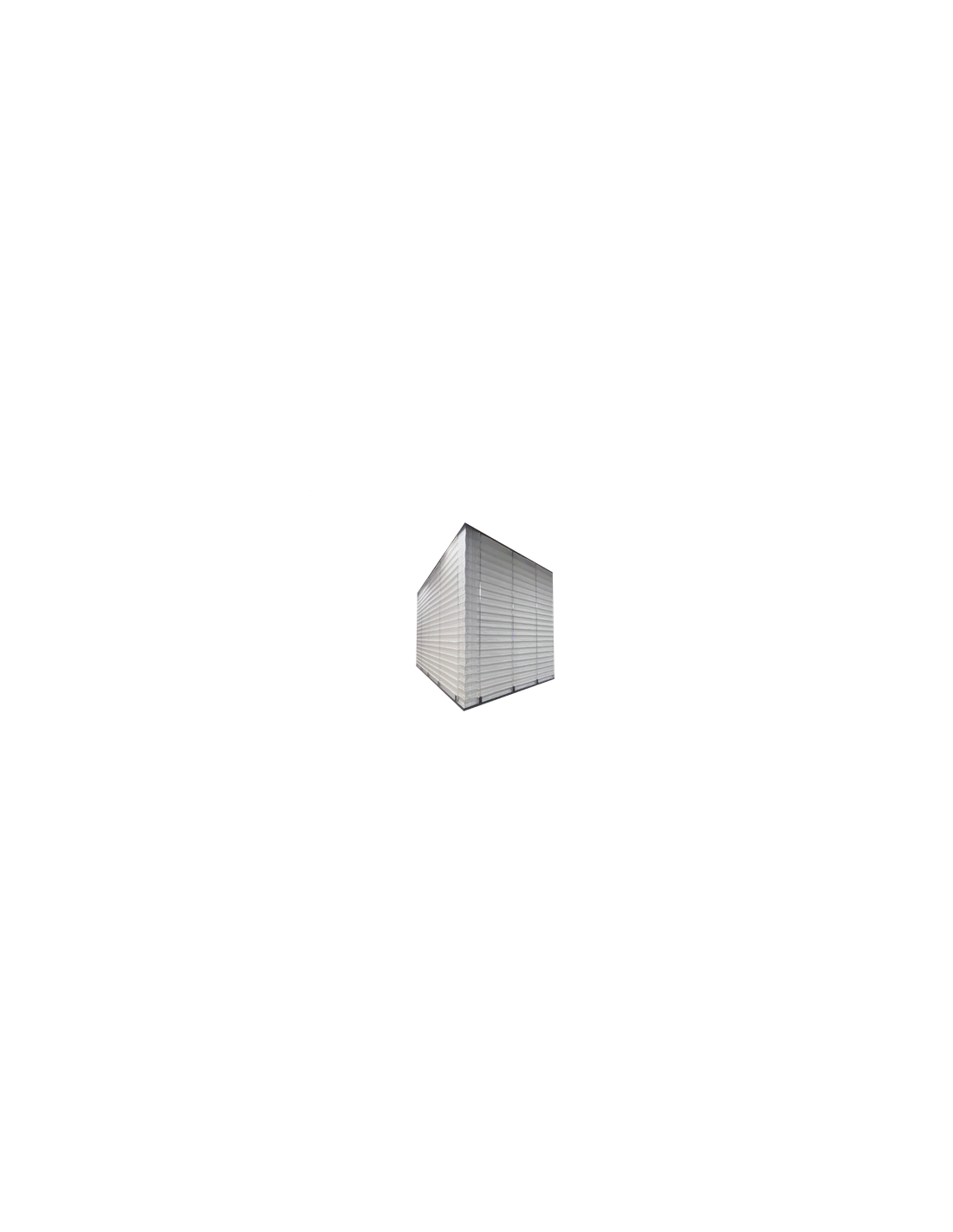

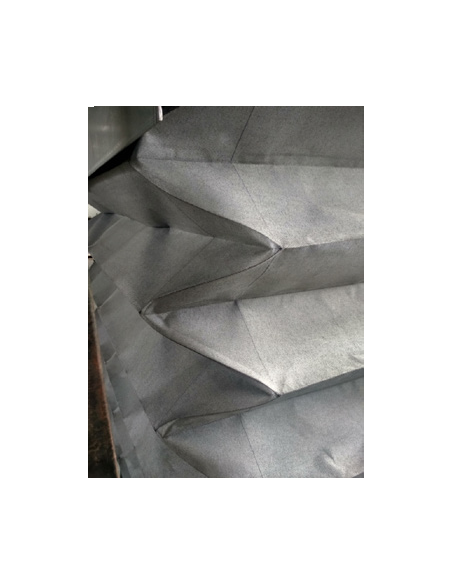

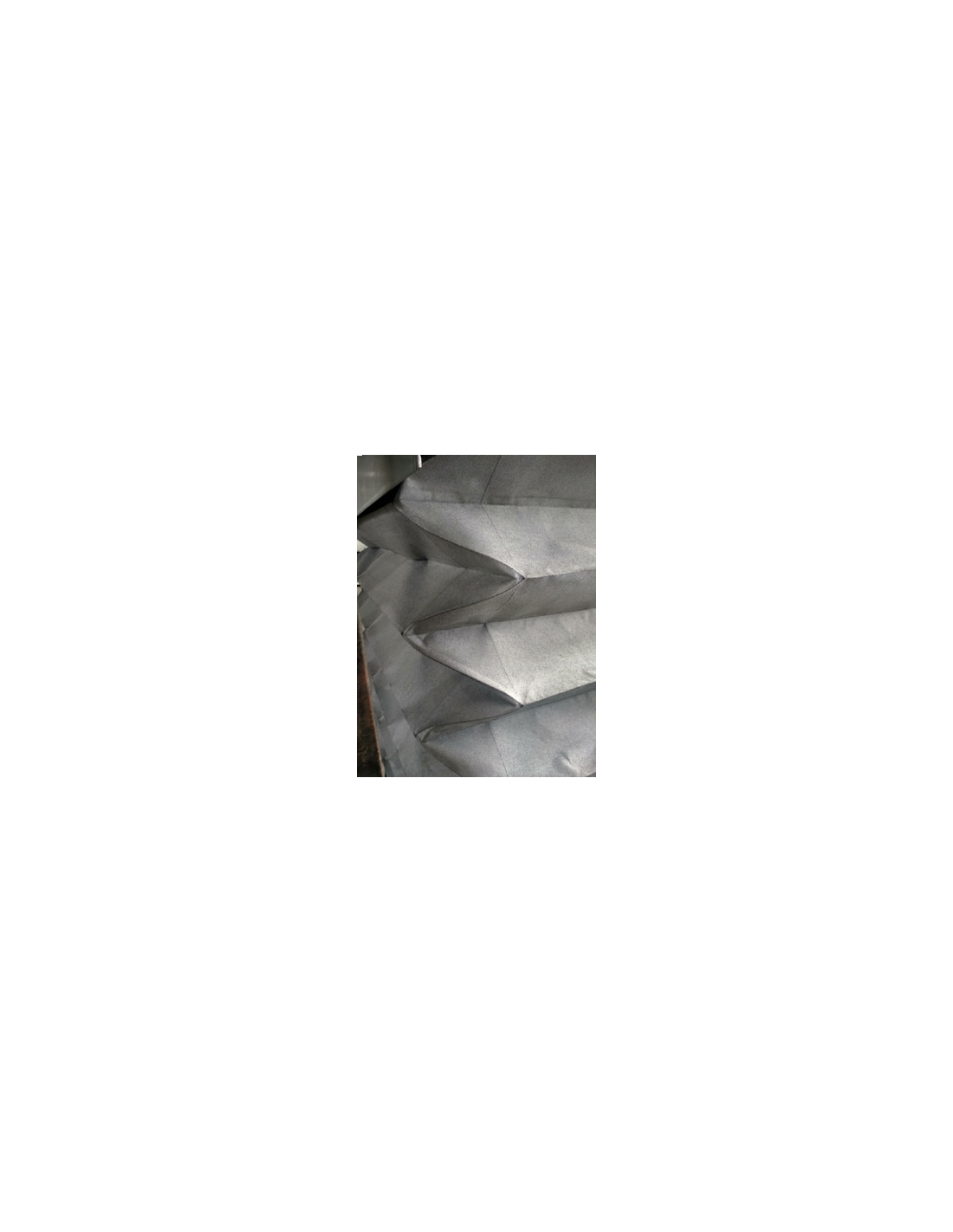

Extremely lightweight flexible folding accordion fire curtains in class E are an innovative solution for fire protection.

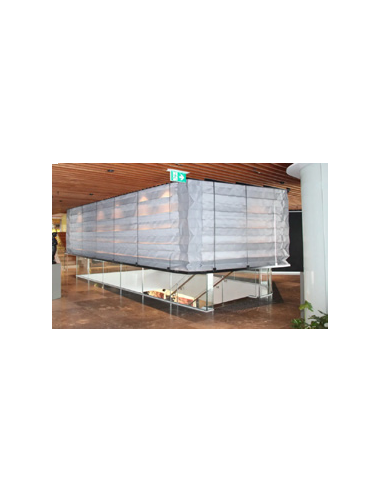

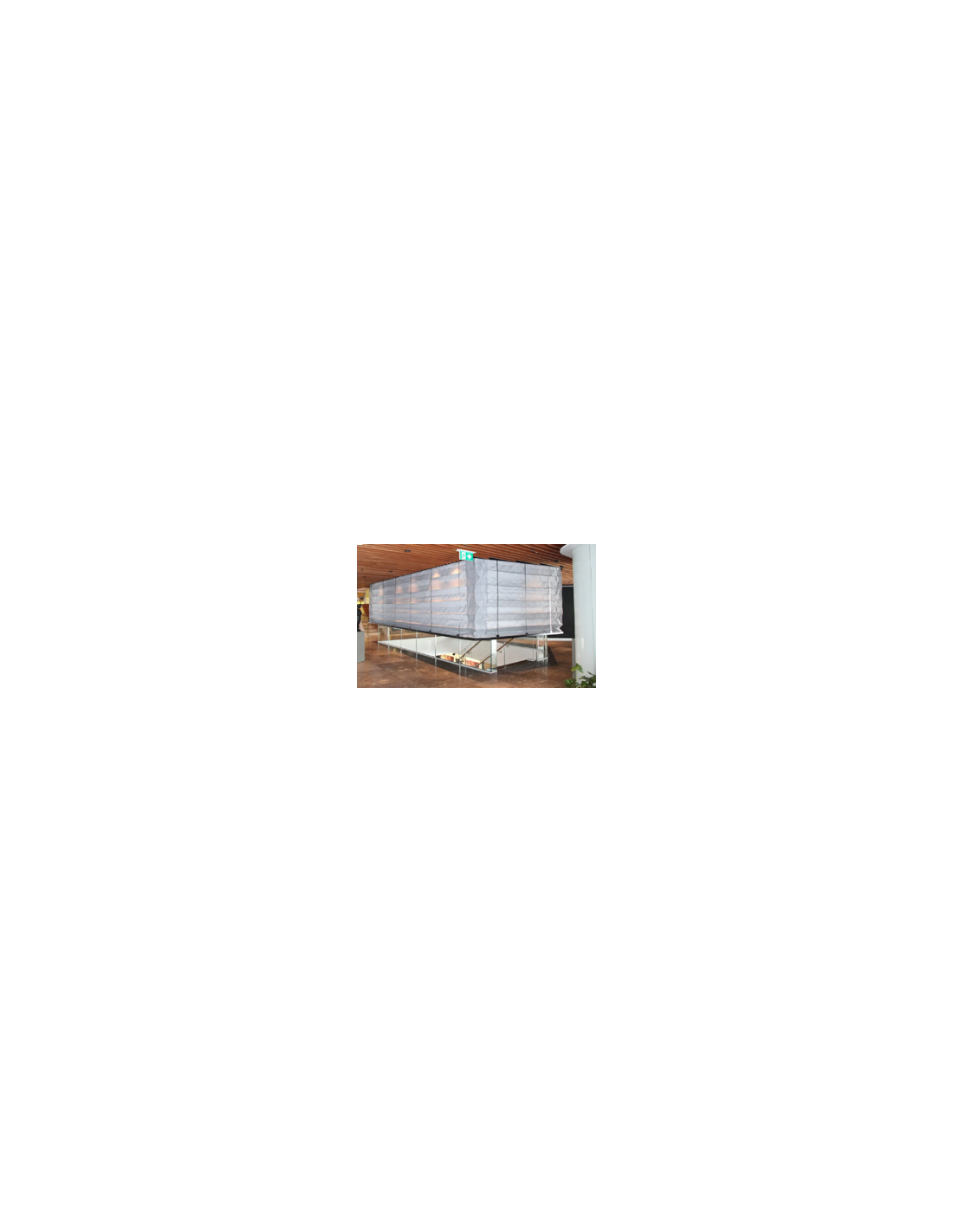

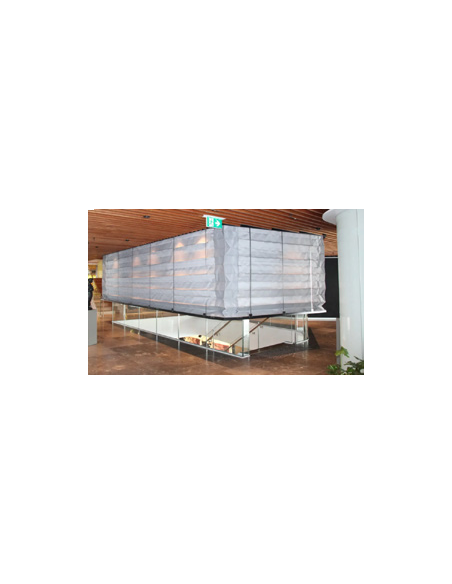

The modular design allows the curtains to be installed anywhere and in a variety of shapes without space-constraining guides. Fire-fighting motors ensure gravitational closing even in the event of a power failure, and integrated fall protection allows for a safe and controlled descent. Single-module or multi-module systems in L, U and other open or closed shapes are available.
| Product type | Flexible folding curtains |
|---|---|
| Direction of movement | Vertical |
| Purpose | Closing vertical openings and protecting individually designated spaces without the need for walls or columns |
| Fire resistance class | E120, E180, E240 |
| Certificates | CE 0370-CPR-6389, CE 0370-CPR-6390, issued by Applus [No. 0370] |
| Standards | EN 16034, EN 13241 |
| Curtain weight | 0.75 kg/m² |
| Dimensions | CE: module width between guide and corner(s) up to 20,000 mm, height up to 12,000 mm |
| Minimum installation dimensions | The product is individually adapted to the project situation |
The product is suitable for industrial, commercial, logistics, warehousing, infrastructure and special purpose facilities that require a certified fire, smoke control, acoustic, ballistic or electromagnetic shielding solution. Specific dimensions, configuration and installation conditions are selected according to the project.
The solution must be selected based on the opening dimensions, partition type, required resistance class, installation conditions, control logic and integration with building security systems. Additional alarm, security, anti-corrosion and control options are available.
