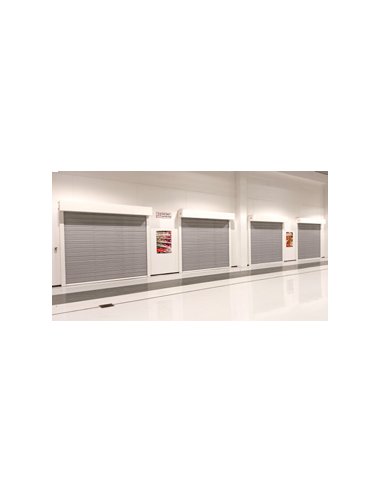

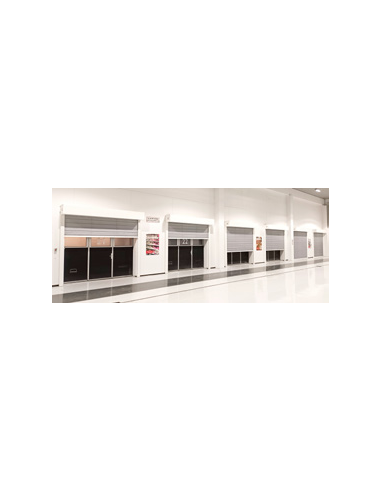

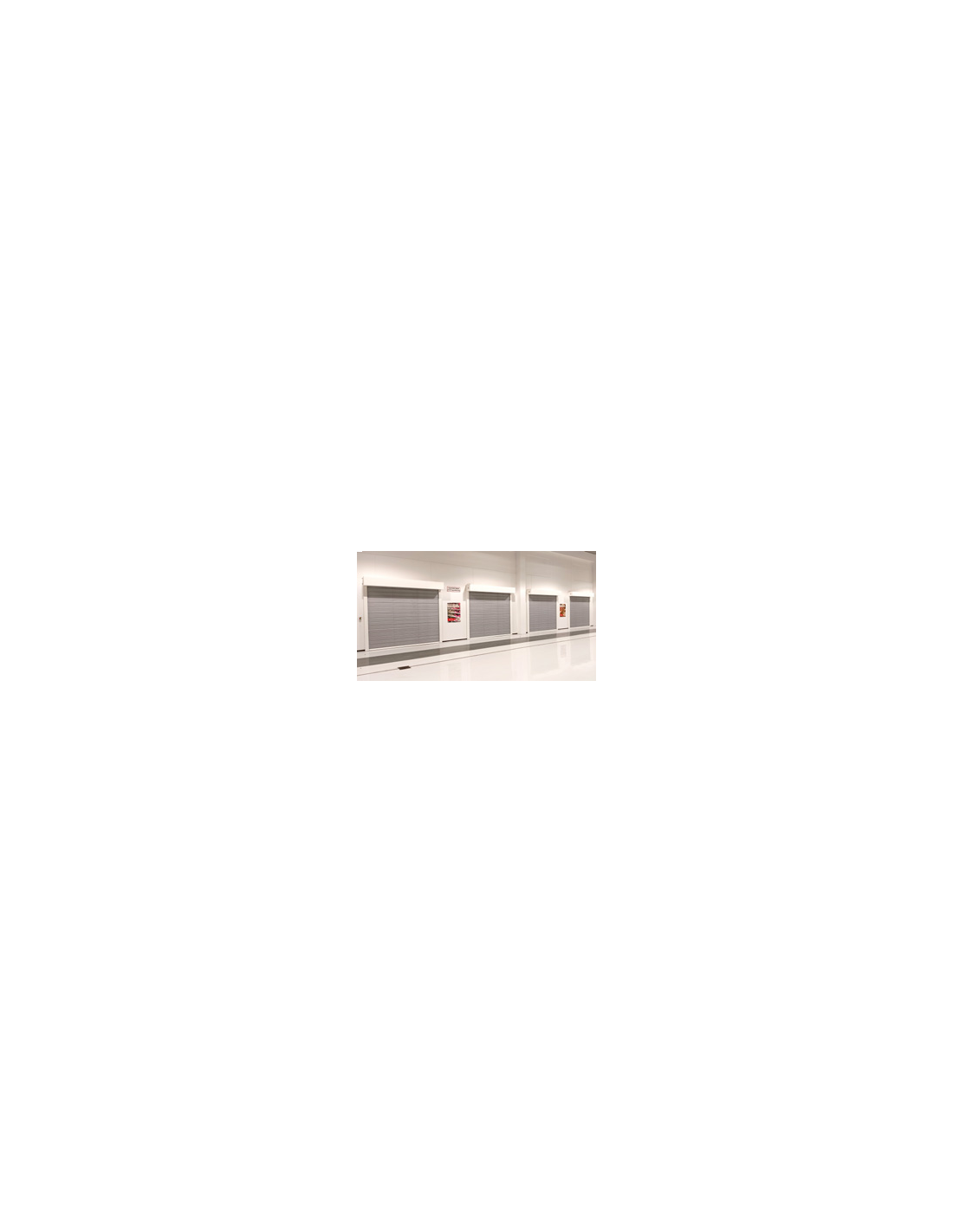

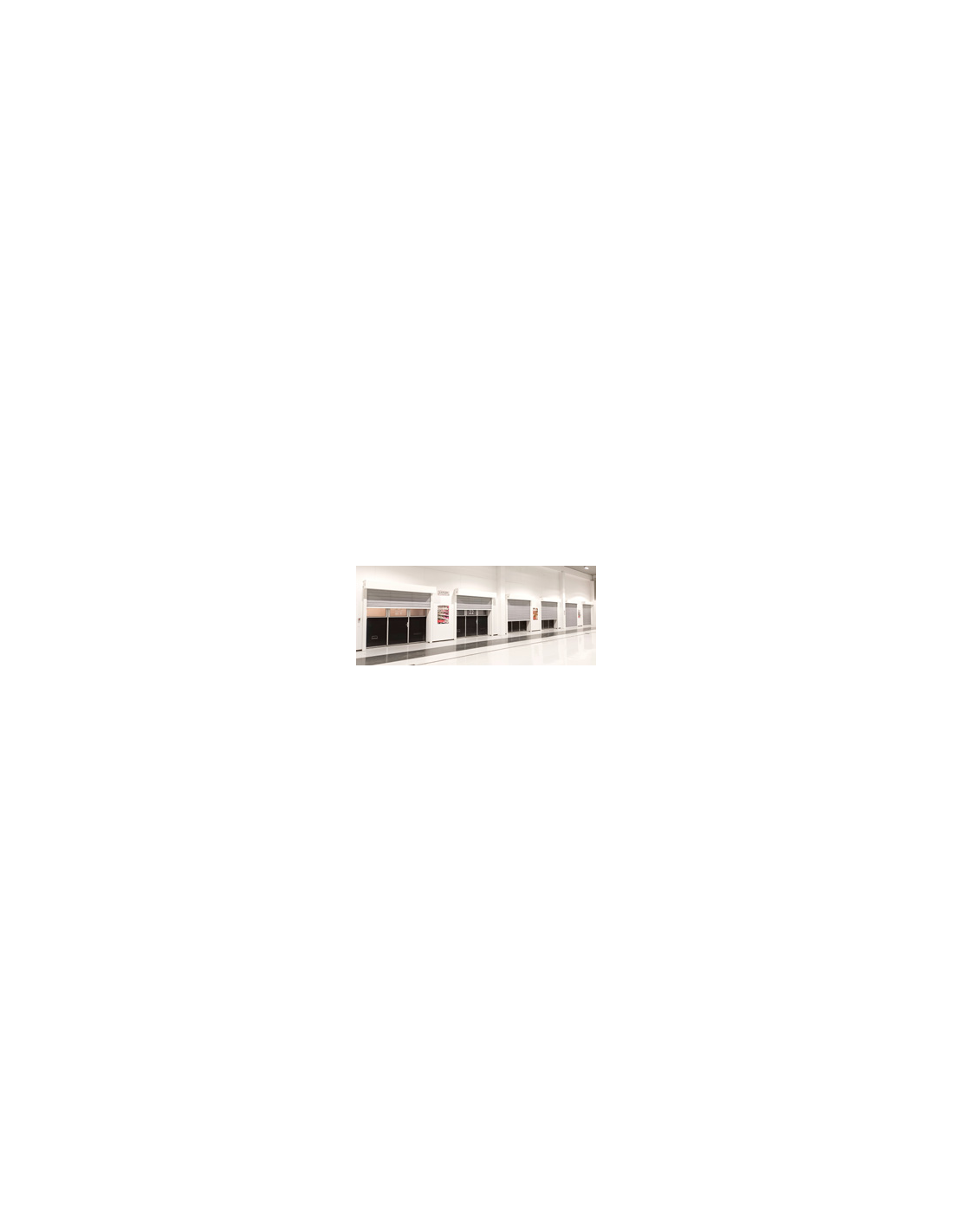

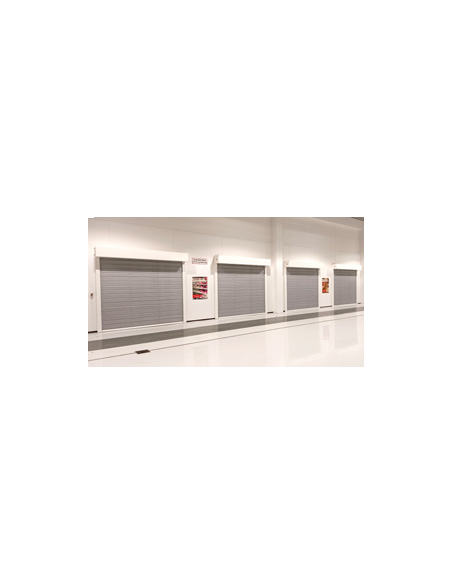

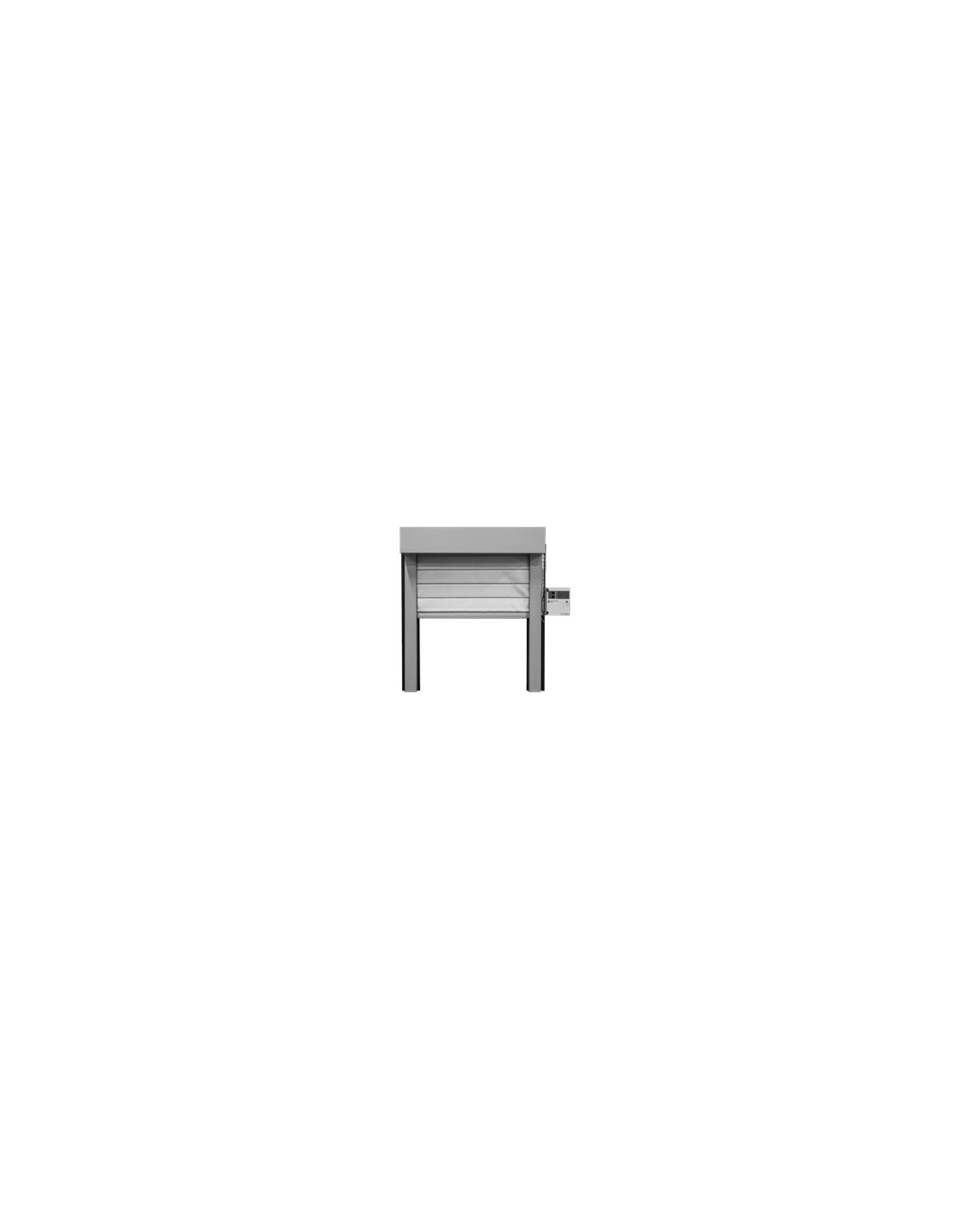

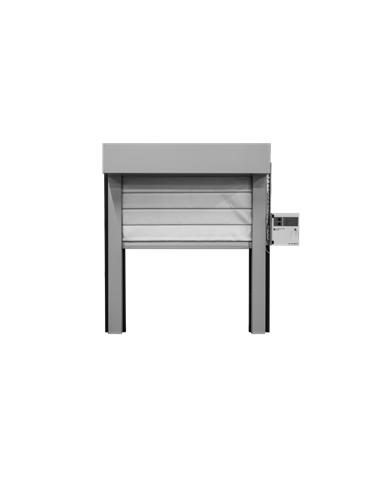

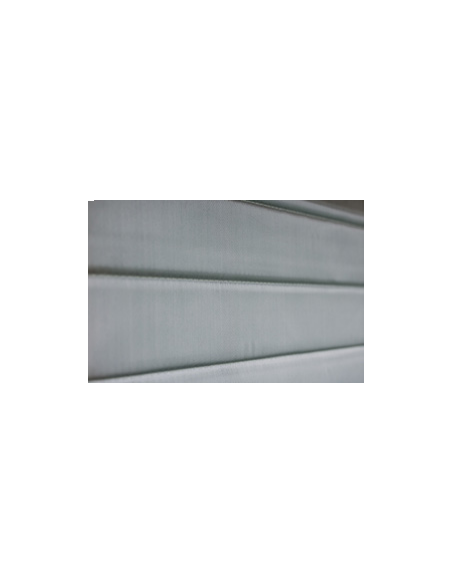

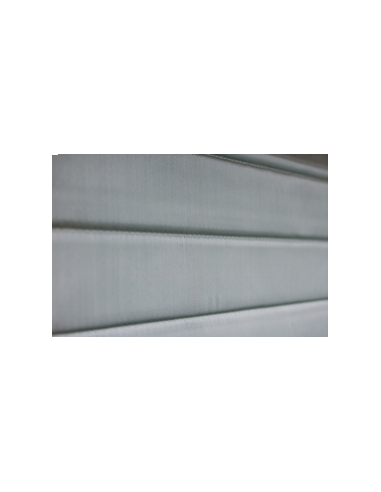

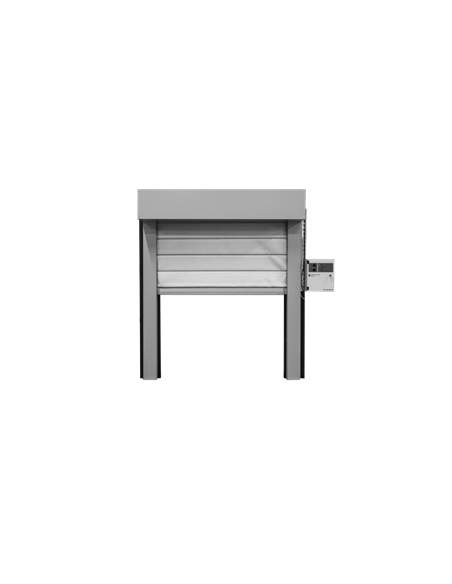

Extremely lightweight, flexible fire curtain for vertical openings. The system provides protection against fire and thermal radiation and does not require fire insulation panels. The curtain is made of a special grey fabric with reinforced side edges to prevent tearing in the guides.
Fire engines ensure gravity closure in the event of a power failure, while integrated fall protection allows for a safe and controlled descent. The system can be integrated with a fire alarm system (FAS) and used in commercial and industrial facilities.
| Product type | Flexible roller blind, one piece |
|---|---|
| Direction of movement | Vertical |
| Purpose | Closing vertical openings in building partitions |
| Fire resistance class | EI 60 |
| Certificate | CE 1396-CPR-0232, issued by Fires [No. 1396] |
| Standards | EN 16034, EN 13241 |
| Curtain weight | 4.5 kg/m² |
| Maximum dimensions | CE 22,000 × 12,000 mm (W × H) |
| Minimum installation dimensions | Lintel 315 mm, sides 160 mm |

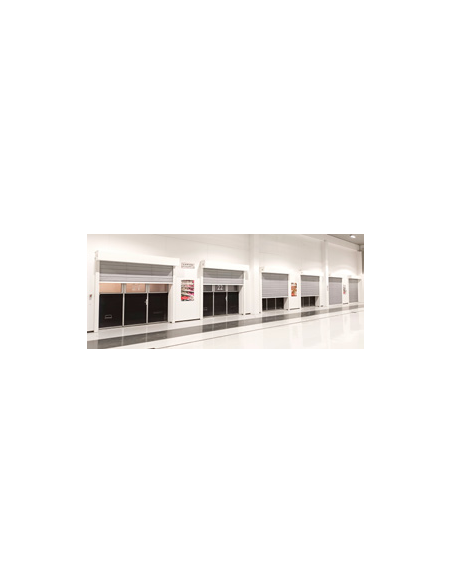

The product is suitable for industrial, commercial, logistics, warehousing, infrastructure and special purpose facilities that require a certified fire, smoke control, acoustic, ballistic or electromagnetic shielding solution. Specific dimensions, configuration and installation conditions are selected according to the project.
The solution must be selected based on the opening dimensions, partition type, required resistance class, installation conditions, control logic and integration with building security systems. Additional alarm, security, anti-corrosion and control options are available.
