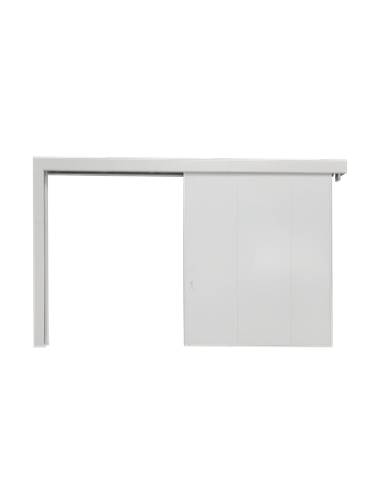

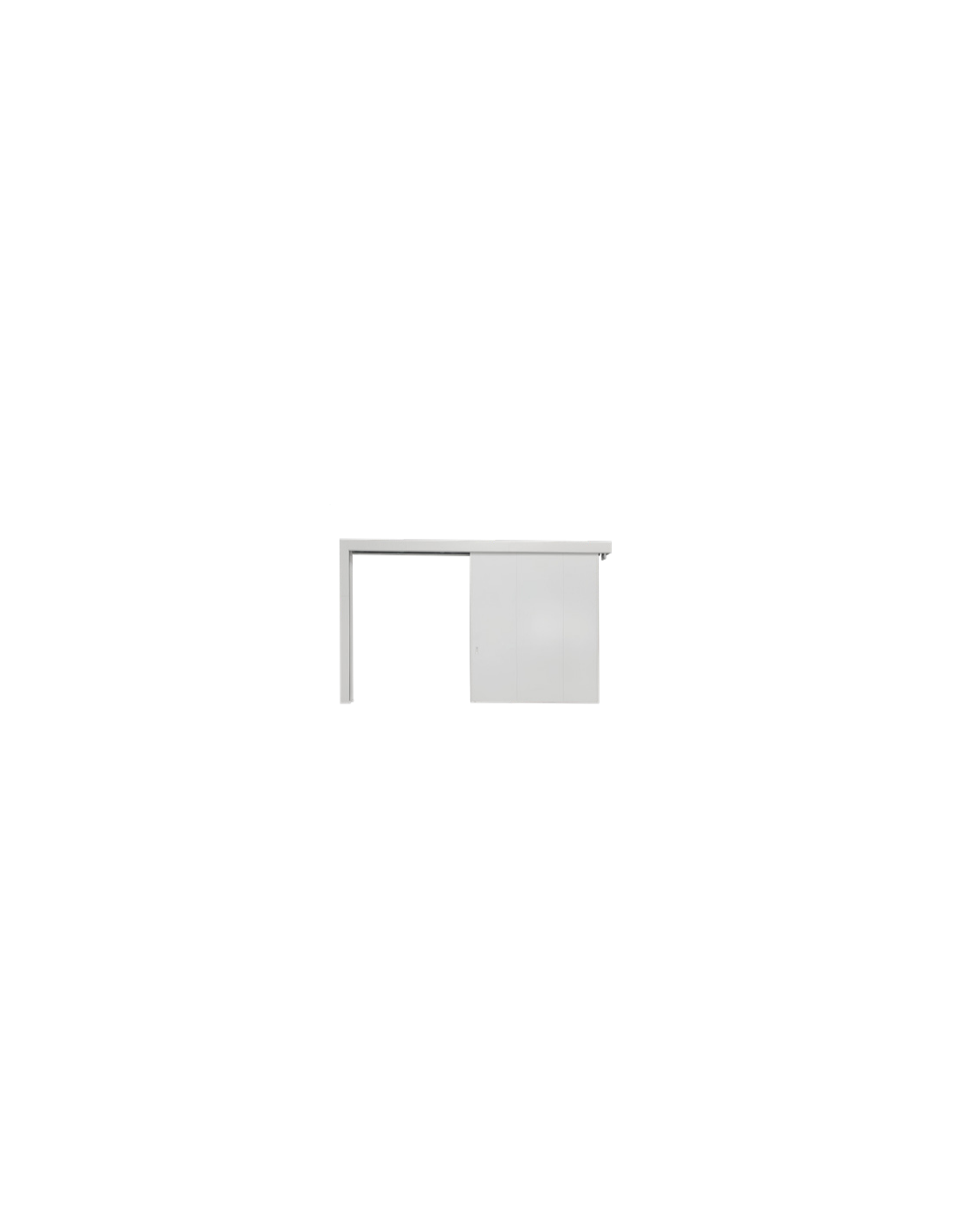

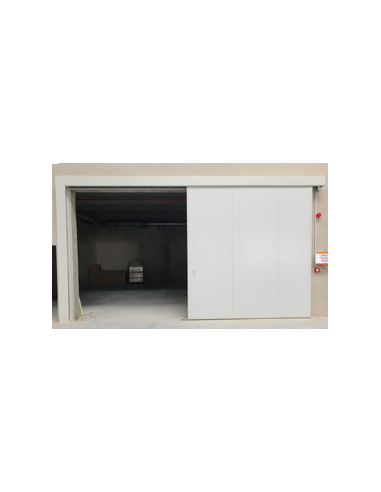

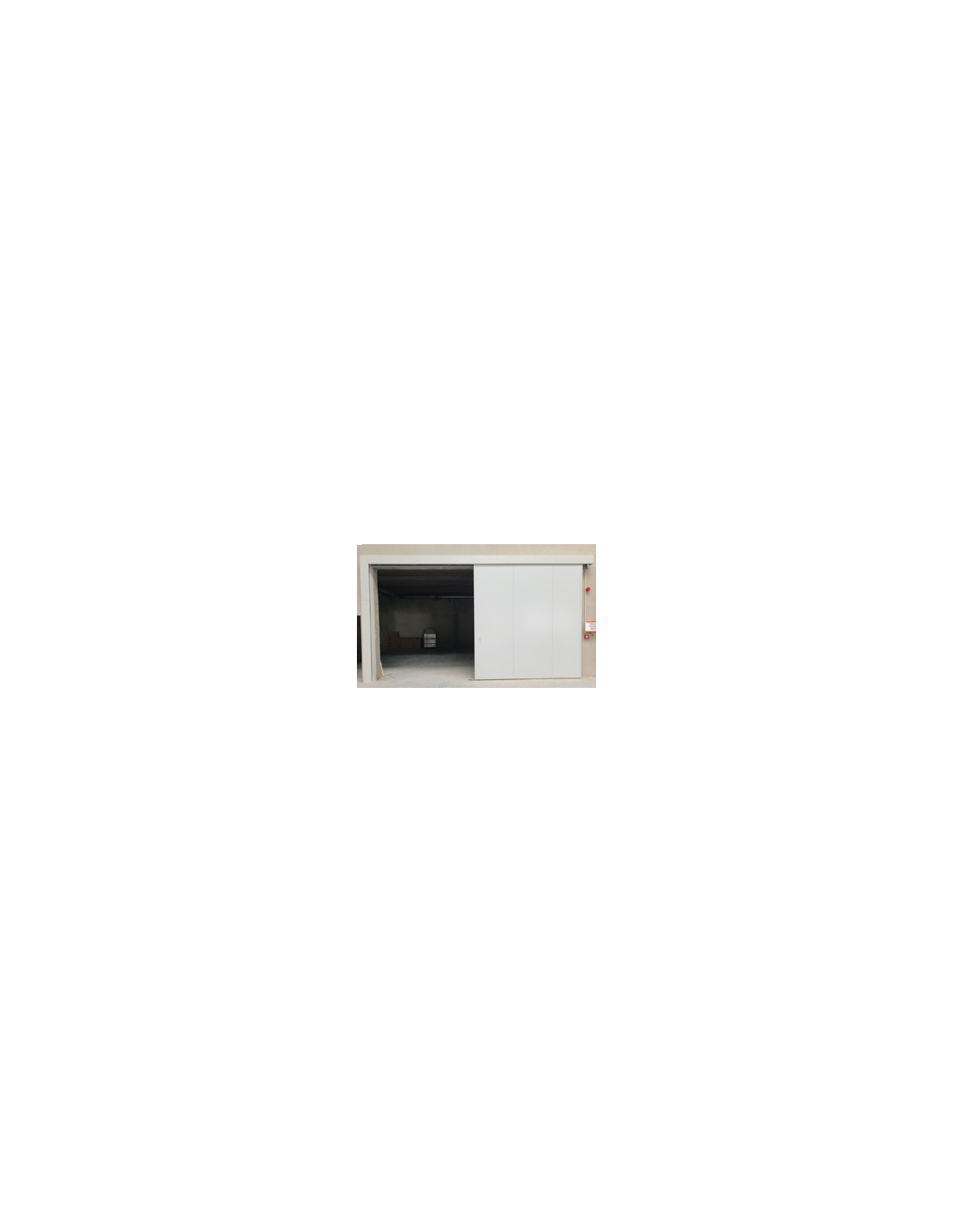

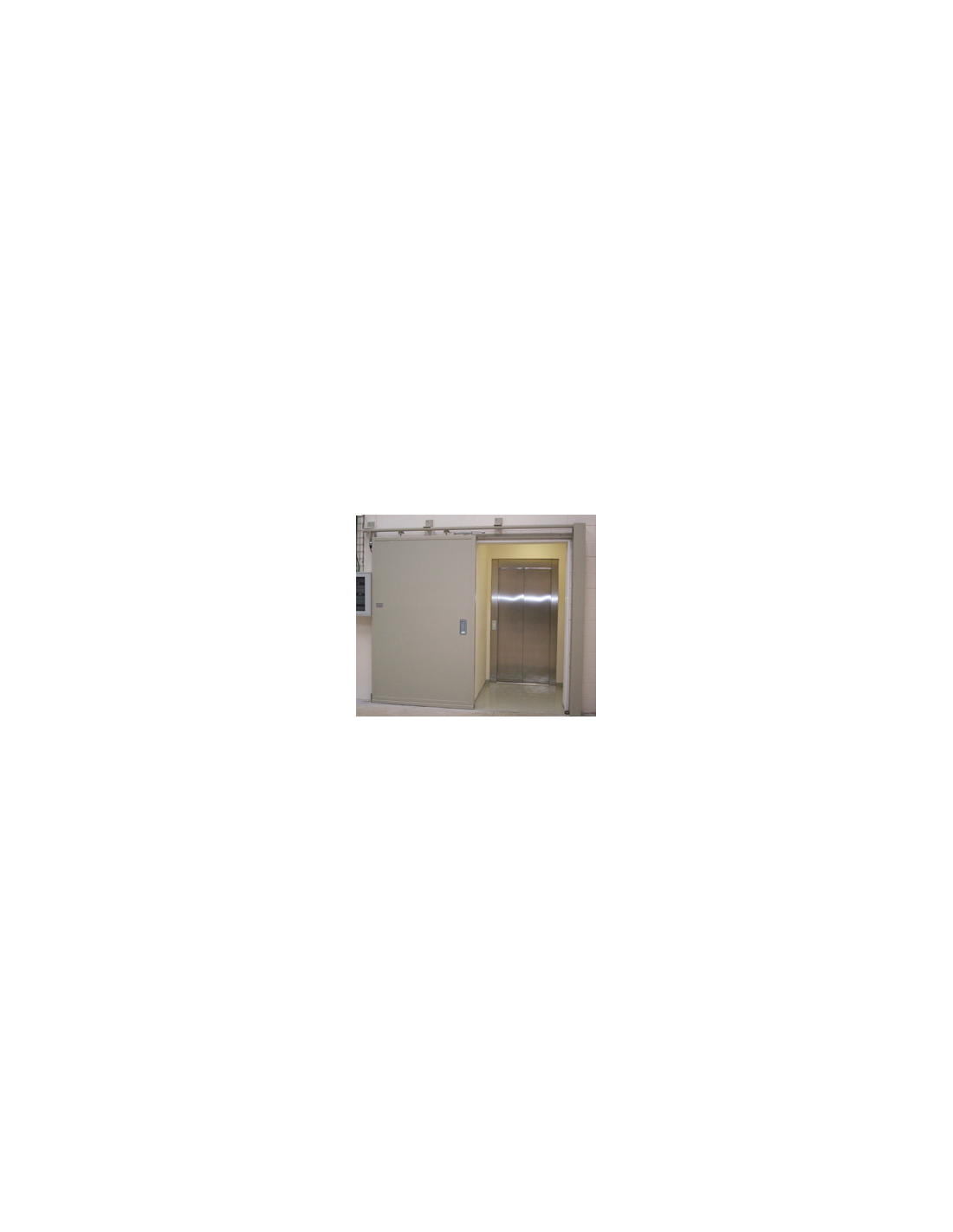

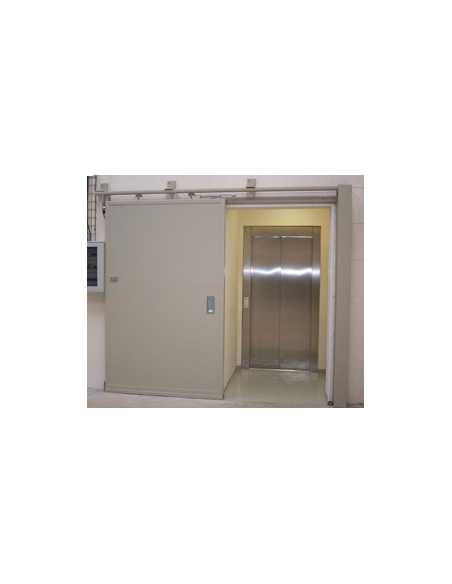

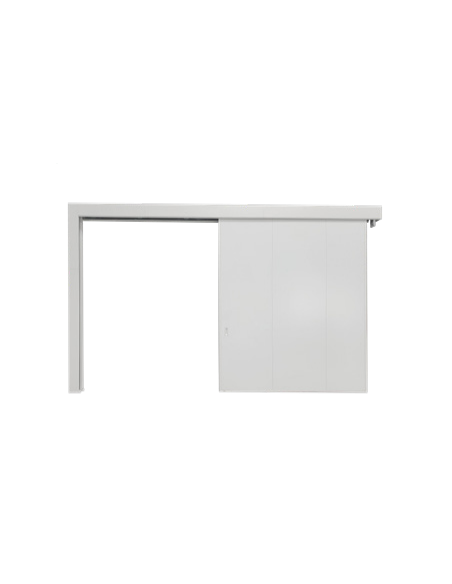

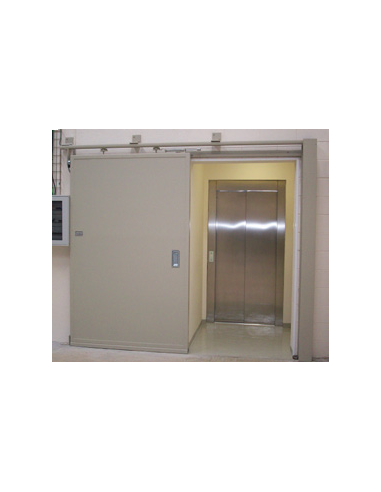

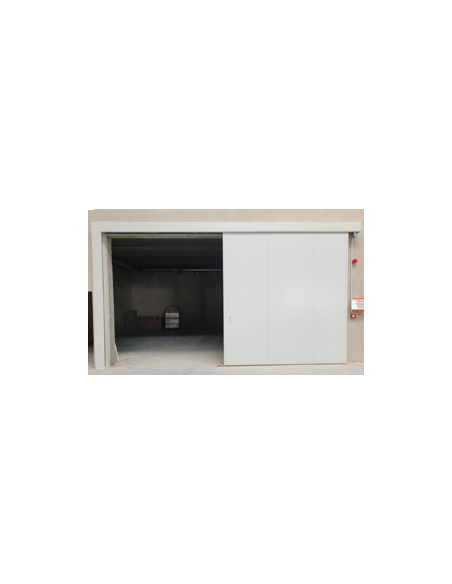

One-piece fire-rated sliding doors in EI class are a proven solution that provides protection against fire and thermal radiation.
The gate leaf is made of 100 mm thick multilayer panels with mineral wool filling. Recessed handles are installed on both sides of the leaf, facilitating manual opening.
| Product type | Single-section sliding gate |
|---|---|
| Direction of movement | Horizontal |
| Purpose | Closing vertical openings in building partitions |
| Fire resistance class | EI 60, EI 120 |
| Certificate | CE 0370-CPR-5958 issued by Applus [No. 0370] |
| Standards | EN 16034, EN 13241 |
| Panel weight | 21–23 kg/m² |
| Panel color | Galvanized |
| Connecting and steel parts | Galvanized |
| Maximum dimensions | CE 7,960 × 6,395 mm (W × H) |
| Minimum installation dimensions | Lintel 280 mm, setback 250 mm, opening side: opening + 180 mm |
The product is suitable for industrial, commercial, logistics, warehousing, infrastructure and special purpose facilities that require a certified fire, smoke control, acoustic, ballistic or electromagnetic shielding solution. Specific dimensions, configuration and installation conditions are selected according to the project.
The solution must be selected based on the opening dimensions, partition type, required resistance class, installation conditions, control logic and integration with building security systems. Additional alarm, security, anti-corrosion and control options are available.
