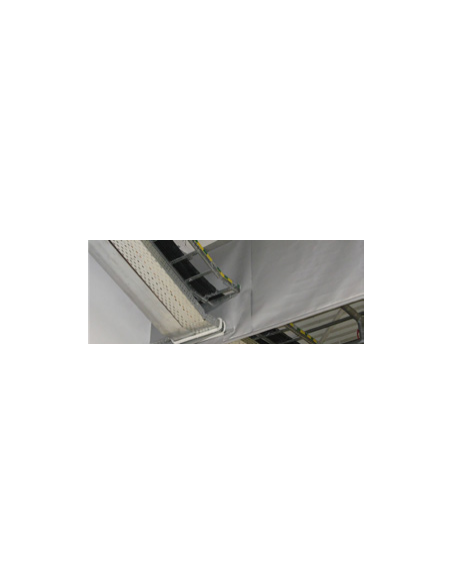

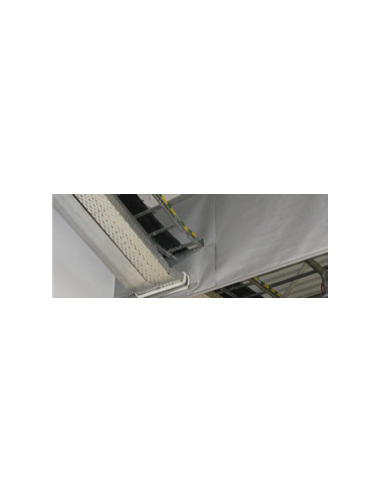

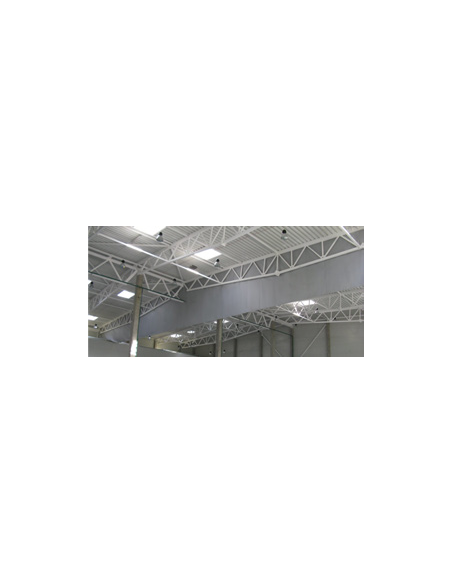

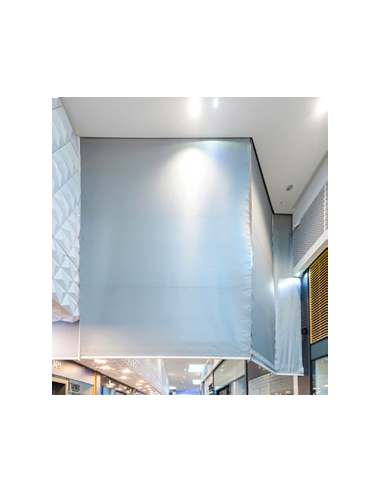

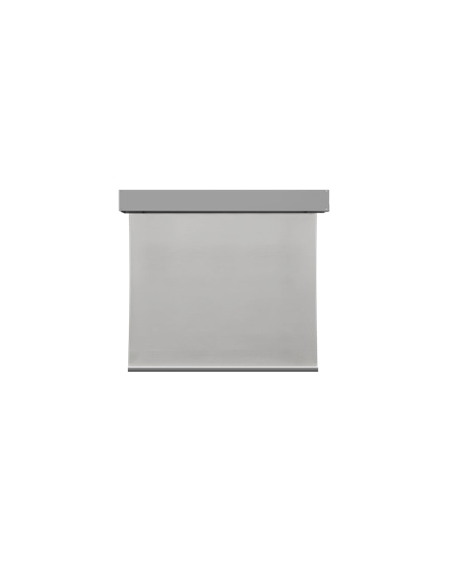

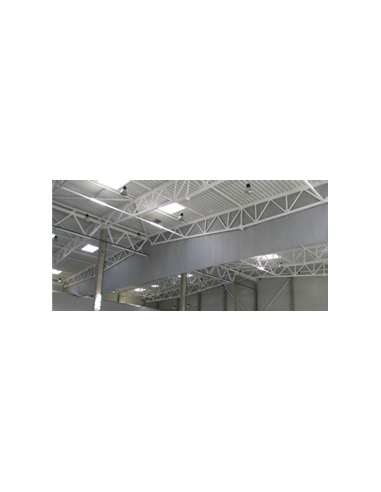

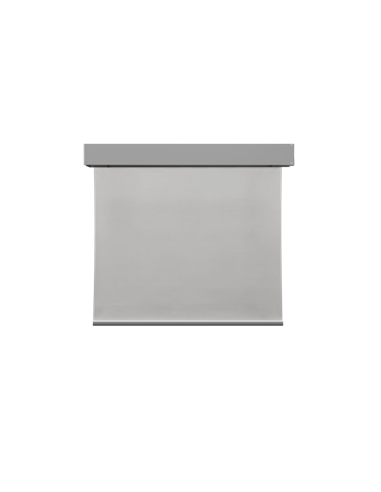

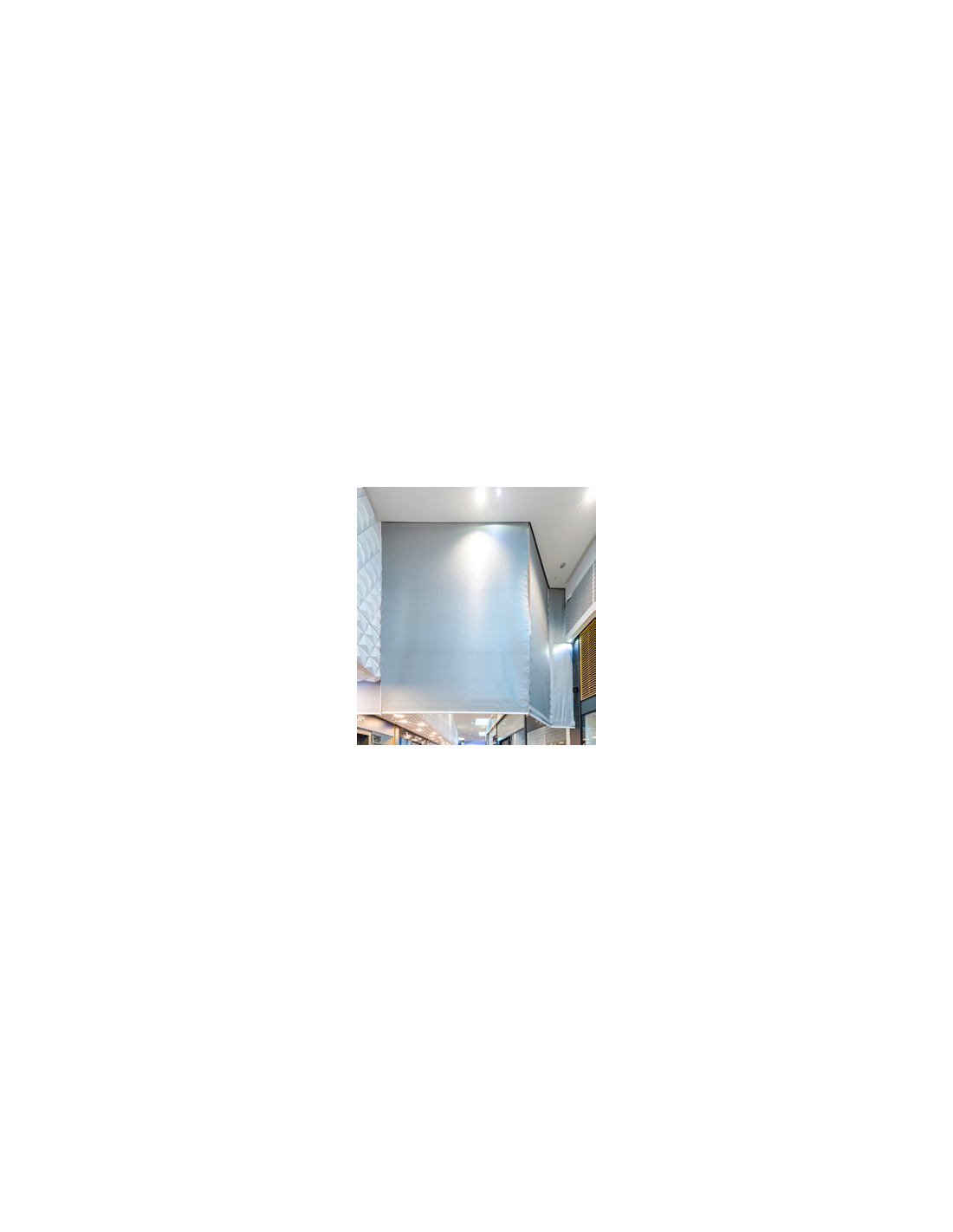

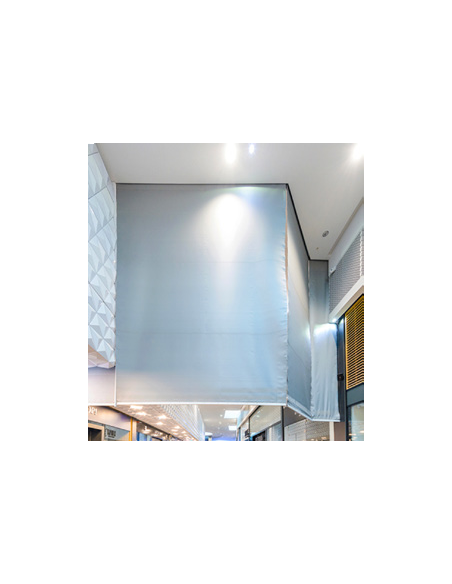

Extremely lightweight flexible automatic or stationary smoke curtains in classes D and DH are a proven solution for limiting the spread of smoke.
The modular design allows you to connect curtains and form a barrier of unlimited length and shape. The low weight of one module makes it easy to adapt to the shape of the ceiling and install.
| Product type | Automatic and stationary smoke curtains |
|---|---|
| Direction of movement | Stationary/vertical |
| Purpose | Protection against smoke spread and control of its direction |
| Class | D 120, DH 120 |
| Certificates | CE 1396-CPR-0125, issued by Fires [No. 1396]; CE 1488-CPR-0112/W, issued by ITB [No. 1488] |
| Standard | EN 12101 |
| Curtain weight | 0.75 kg/m² |
| Dimensions | Unlimited |
| Minimum installation dimensions | ASB: min. 200 mm ceiling / lintel; SSB: min. 30 mm ceiling / lintel |
The product is suitable for industrial, commercial, logistics, warehousing, infrastructure and special purpose facilities that require a certified fire, smoke control, acoustic, ballistic or electromagnetic shielding solution. Specific dimensions, configuration and installation conditions are selected according to the project.
The solution must be selected based on the opening dimensions, partition type, required resistance class, installation conditions, control logic and integration with building security systems. Additional alarm, security, anti-corrosion and control options are available.
