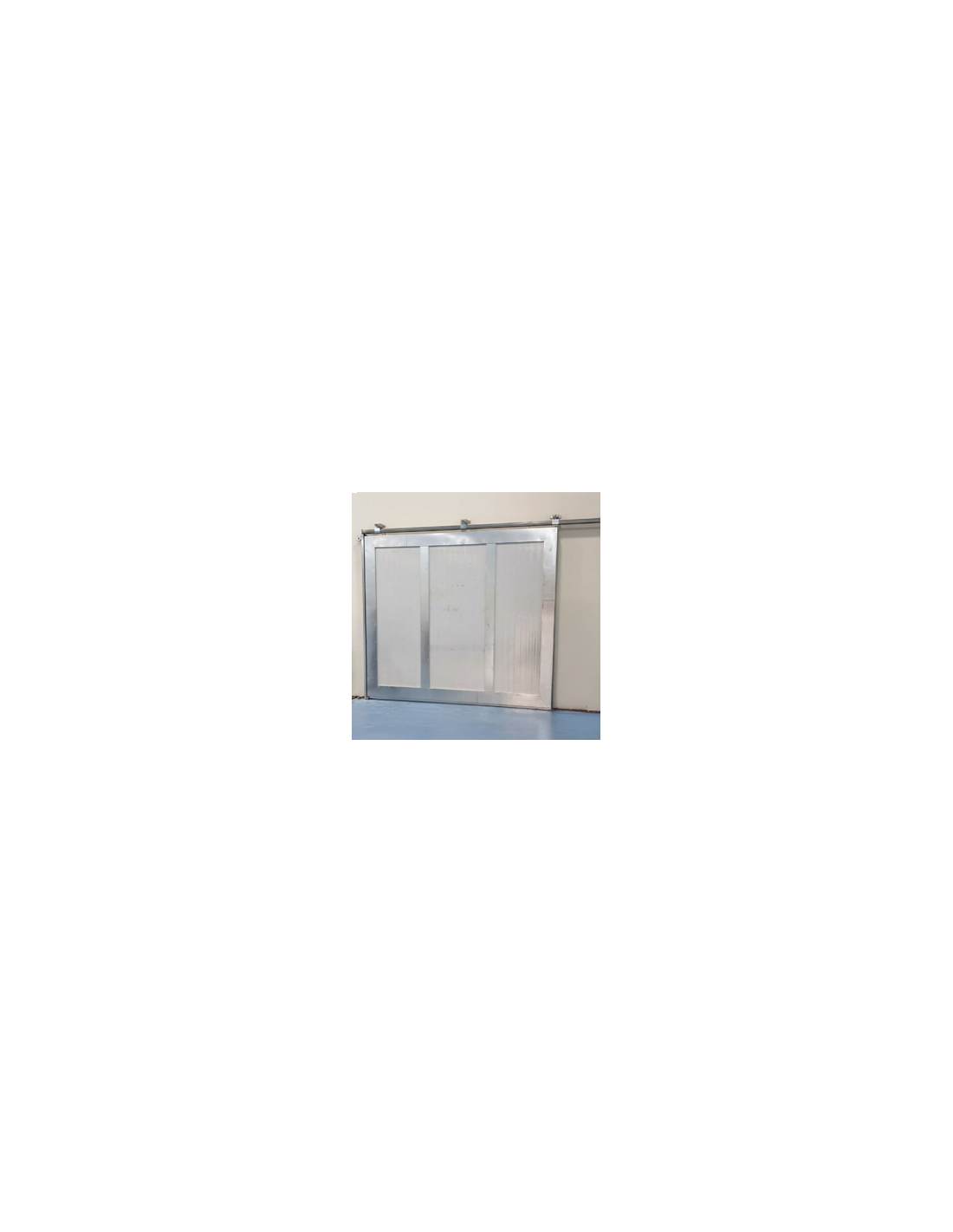

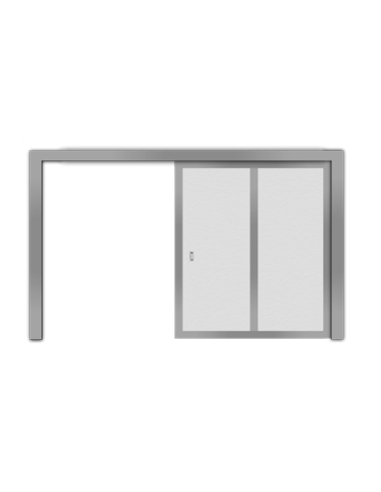

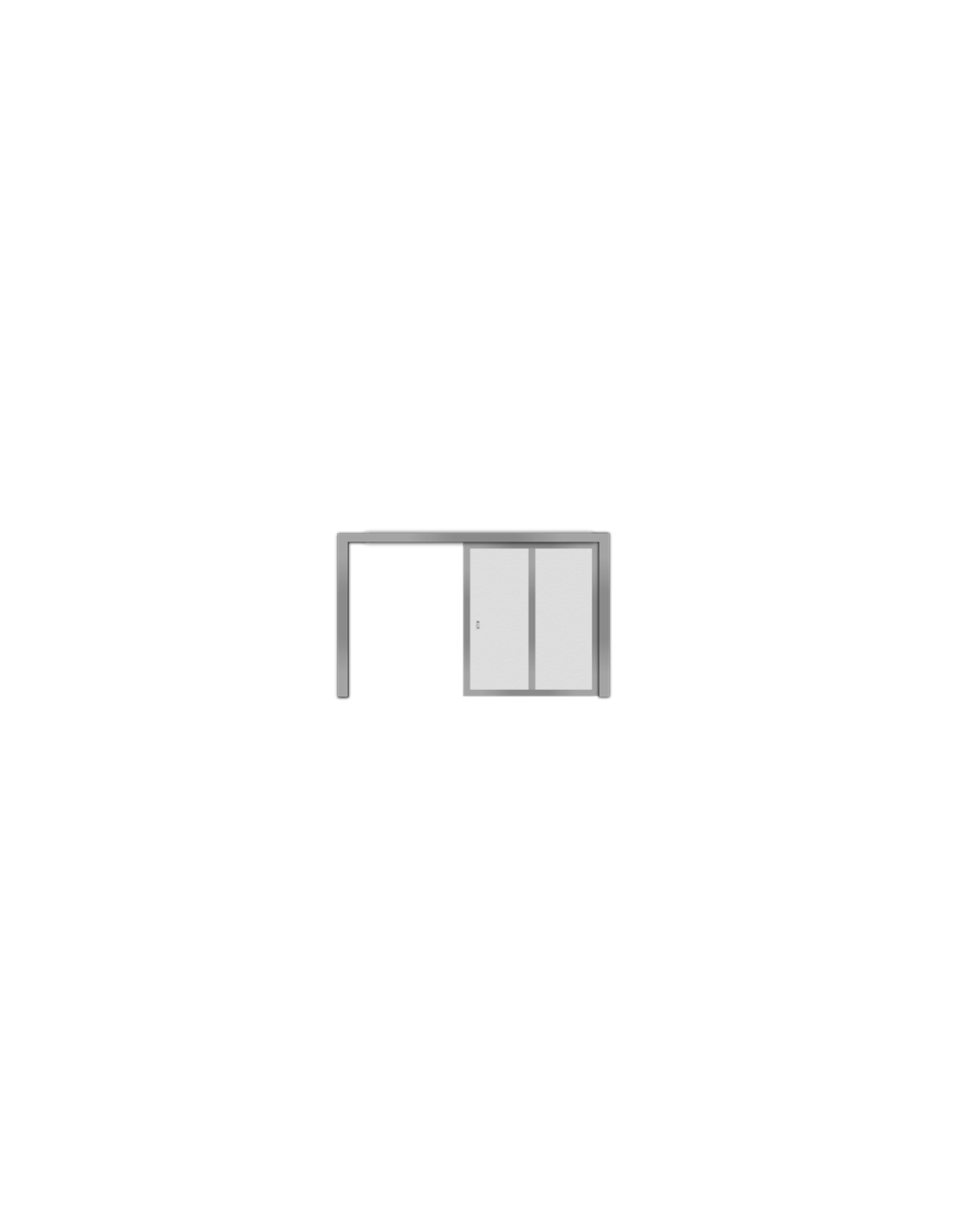

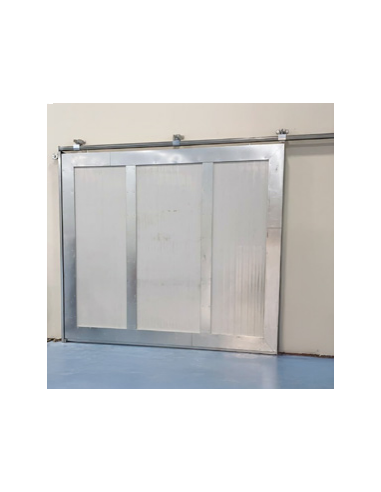

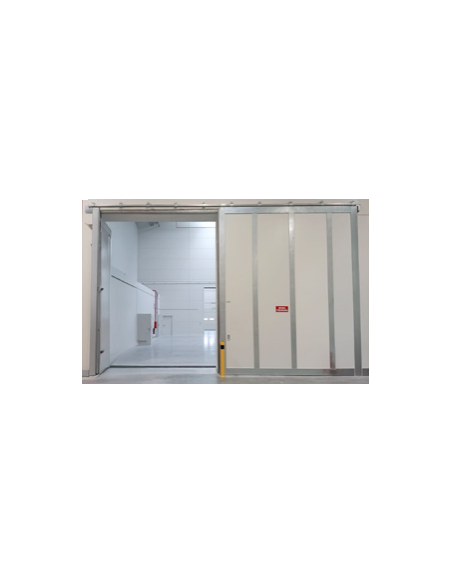

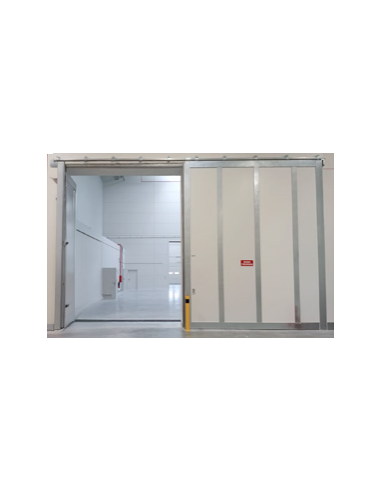

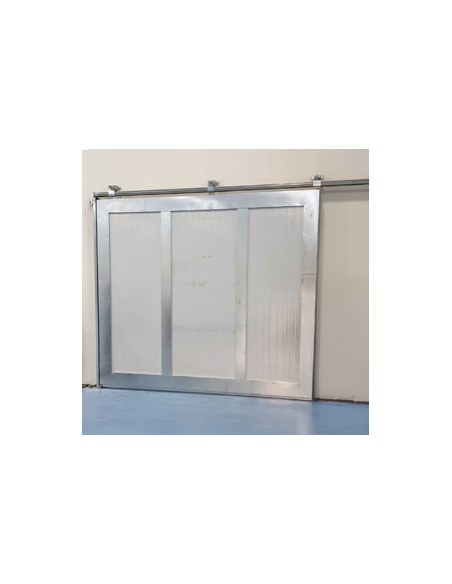

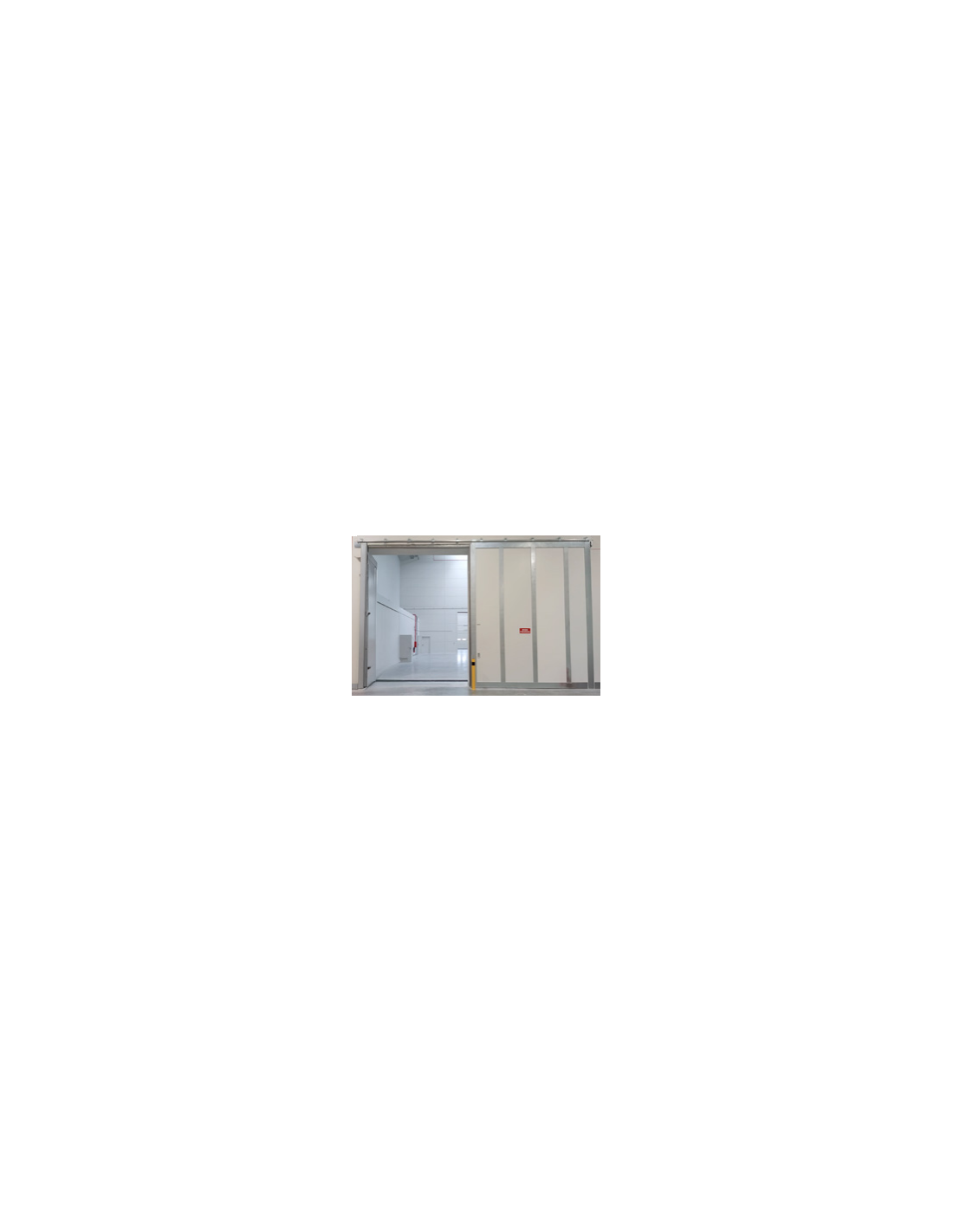

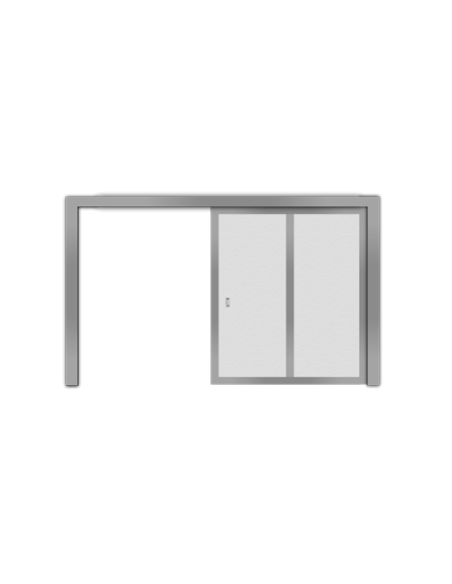

Sliding one-piece fire doors in EI 180 and EI 240 classes are a reliable solution that provides protection against fire and thermal radiation.
The gate leaf is made of 100 mm thick multilayer panels with mineral wool filling. The leaf has recessed handles on both sides for manual opening.
| Product type | Single-section sliding gate |
|---|---|
| Direction of movement | Horizontal |
| Purpose | Closing vertical openings in building partitions |
| Fire resistance class | EI 180, EI 240 |
| Certificates | CE 0370-CPR-3948, CE 0370-CPR-3950, issued by Applus [No. 0370] |
| Standards | EN 16034, EN 13241 |
| Panel weight | 21–23 kg/m² |
| Panel color | Galvanized |
| Maximum dimensions | CE 4,500 × 4,500 mm (W × H) |
| Minimum installation dimensions | Lintel 350 mm, setback 300 mm, opening side: opening + 340 mm |
The product is suitable for industrial, commercial, logistics, warehousing, infrastructure and special purpose facilities that require a certified fire, smoke control, acoustic, ballistic or electromagnetic shielding solution. Specific dimensions, configuration and installation conditions are selected according to the project.
The solution must be selected based on the opening dimensions, partition type, required resistance class, installation conditions, control logic and integration with building security systems. Additional alarm, security, anti-corrosion and control options are available.
