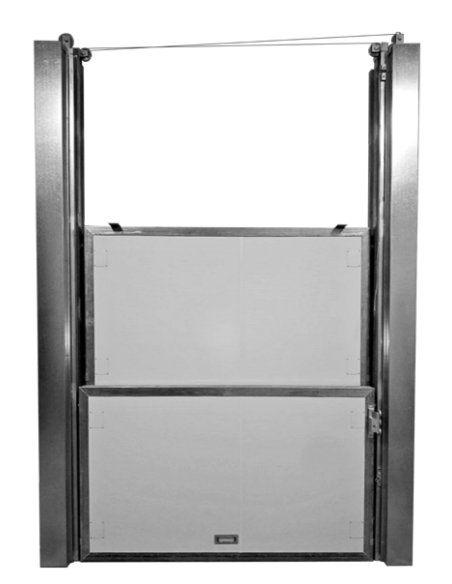

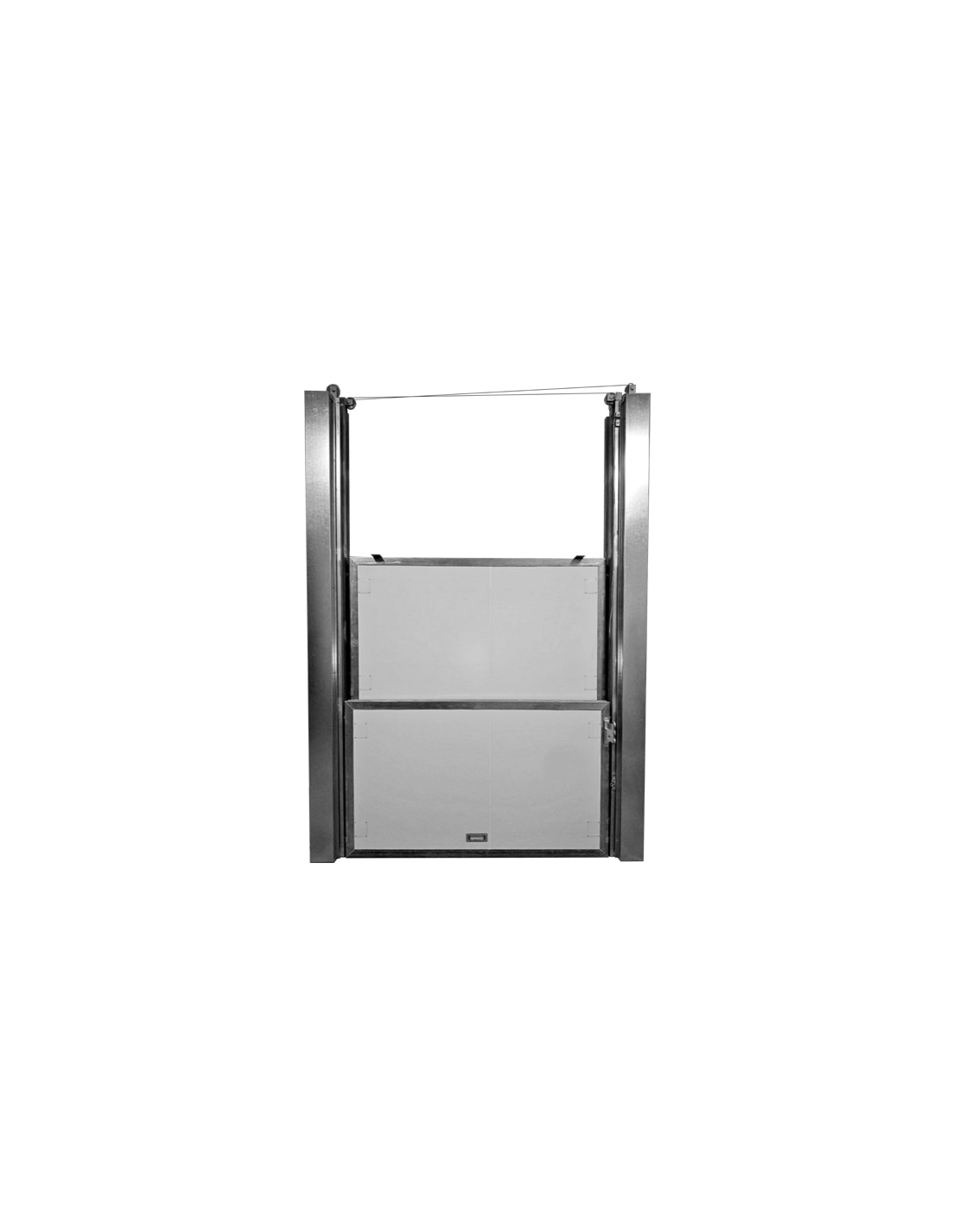

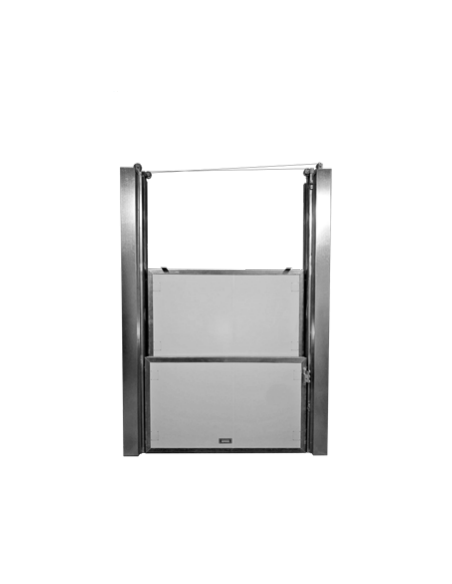

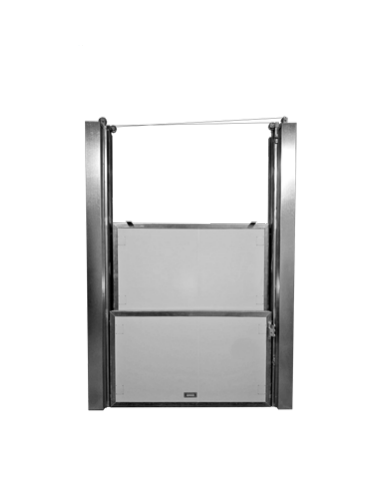

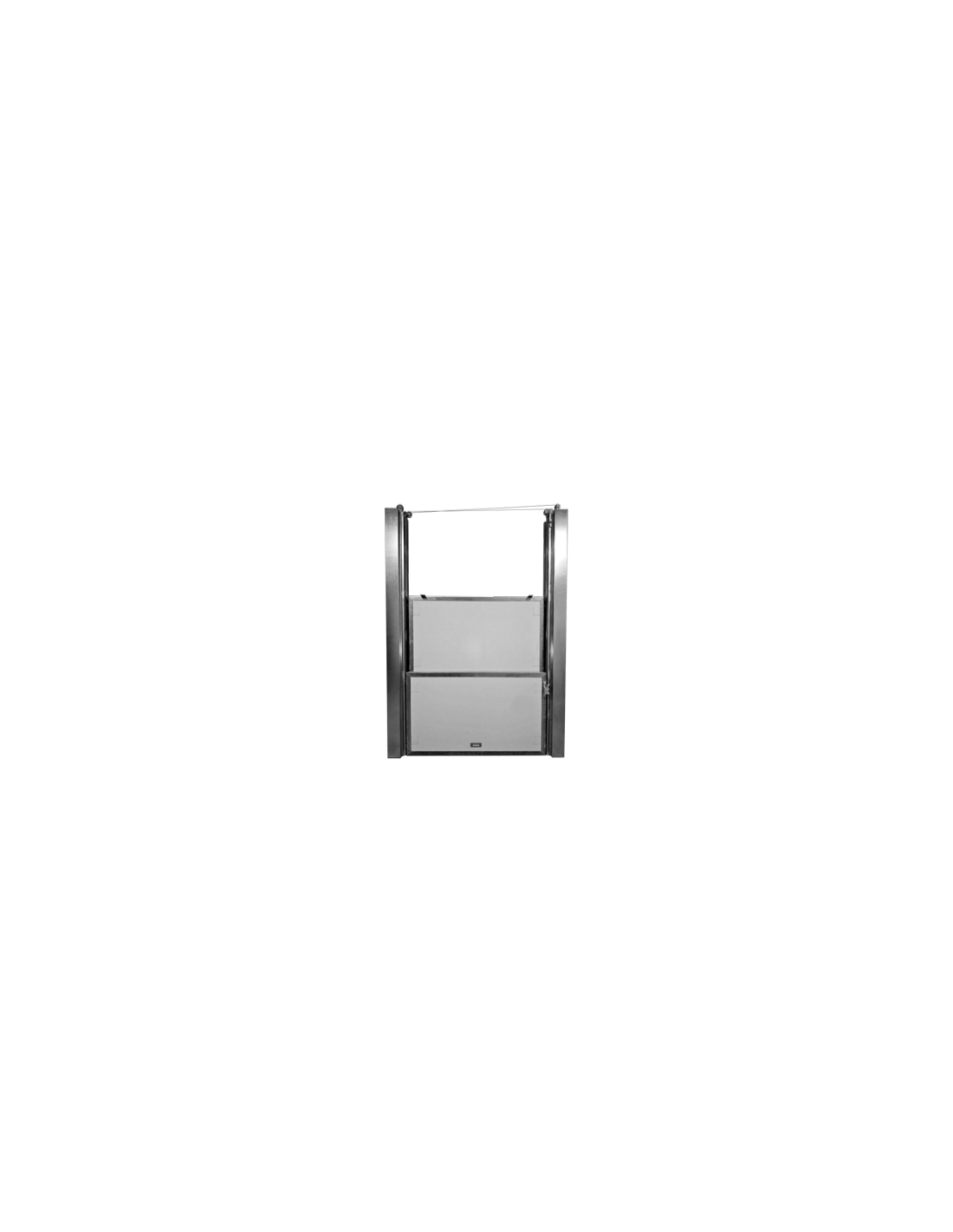

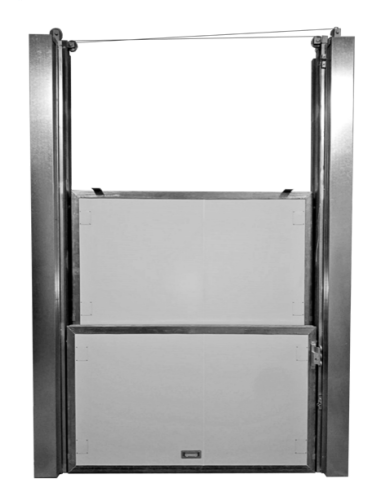

Vertically sliding telescopic guillotine fire doors in EI class are a proven solution for protection against fire and thermal radiation.
The gate leaf is made of 100 mm thick sandwich panels with mineral wool filling. The lower part of the gate leaf is equipped with recessed handles. A precisely selected counterweight with an integrated closing speed regulator ensures automatic and controlled closing of the gate.
| Product type | Multi-leaf guillotine gates |
|---|---|
| Direction of movement | Vertical |
| Purpose | Closing vertical openings in building partitions |
| Fire resistance class | EI 60, EI 120 |
| Certificates | CE 0370-CPR-3951, CE 0370-CPR-3952, issued by Applus [No. 0370] |
| Standards | EN 16034, EN 13241 |
| Panel weight | 21–23 kg/m² |
| Panel color | Galvanized |
| Maximum dimensions | CE 5,445 × 7,425 mm (W × H) |
| Minimum installation dimensions | Lintel: 1/2 opening width + 500 mm, counterweight side 610 mm, opposite side 220 mm |
The product is suitable for industrial, commercial, logistics, warehousing, infrastructure and special purpose facilities that require a certified fire, smoke control, acoustic, ballistic or electromagnetic shielding solution. Specific dimensions, configuration and installation conditions are selected according to the project.
The solution must be selected based on the opening dimensions, partition type, required resistance class, installation conditions, control logic and integration with building security systems. Additional alarm, security, anti-corrosion and control options are available.
