Street workout outdoor exercise machines
Remember the ladders on the school playground? Our sets are a new, expanded version. Streetworkout equipment is especially popular among young people and adults. Both men and women want to show off their skills among their peers.
The medium set is designed for CrossFit and streetworkout training. Various exercise elements will give a huge dose of adrenaline to demanding users. Expansion is possible with additional equipment such as benches, low handrails and many others.
How to use: Slowly step onto the platform, hold onto the handrails and start exercising at any pace. The exercises can also be performed without holding onto the handrails.
Exercise difficulty : Difficult.

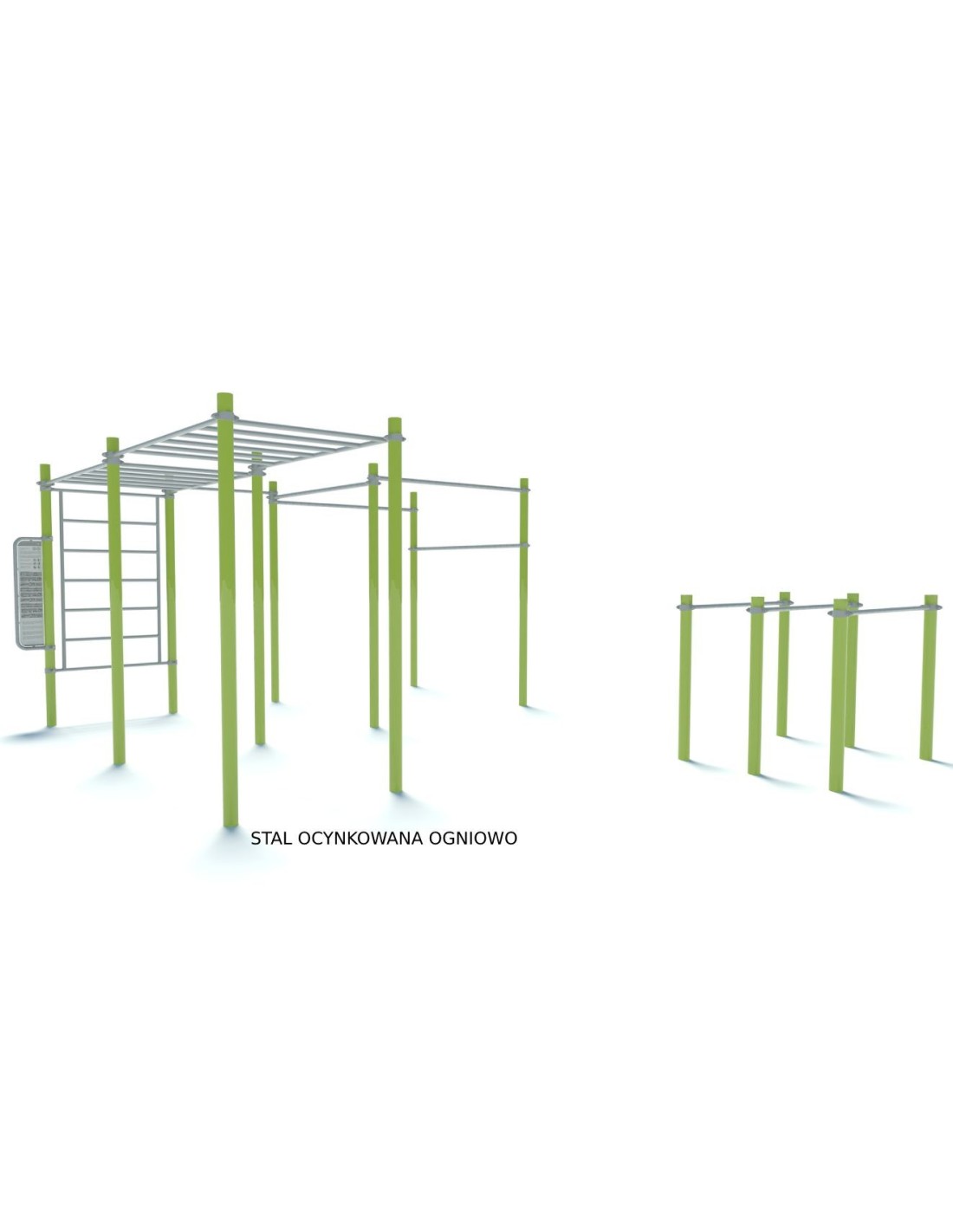

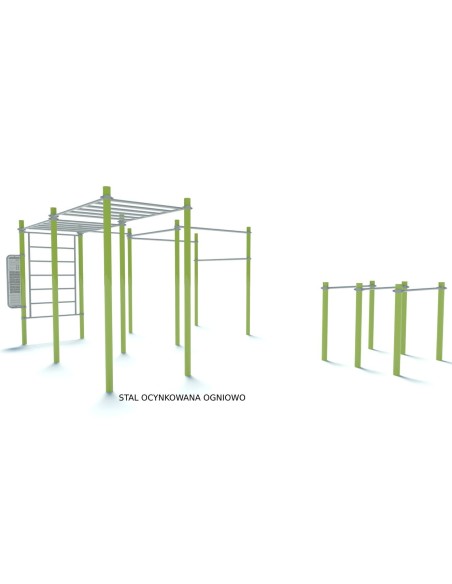

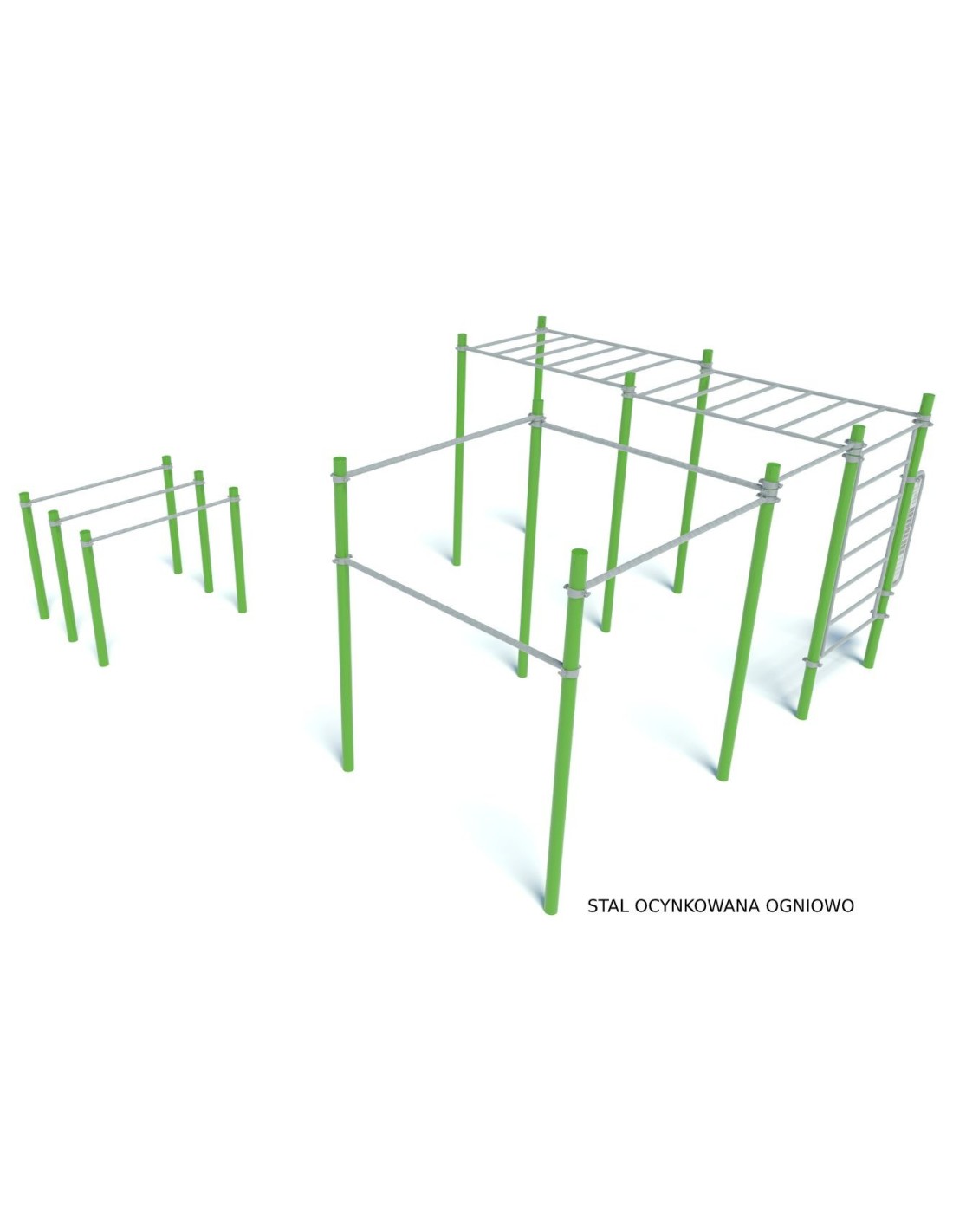

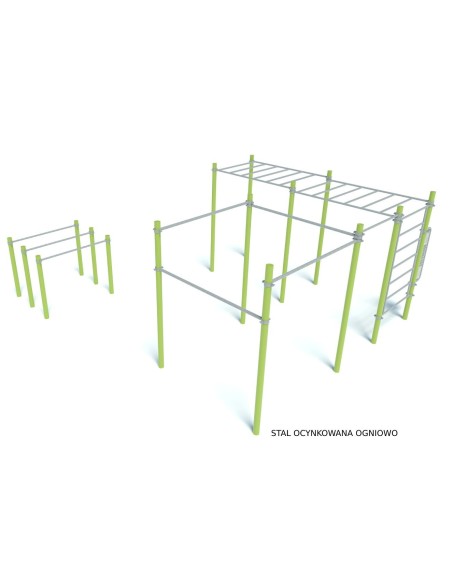

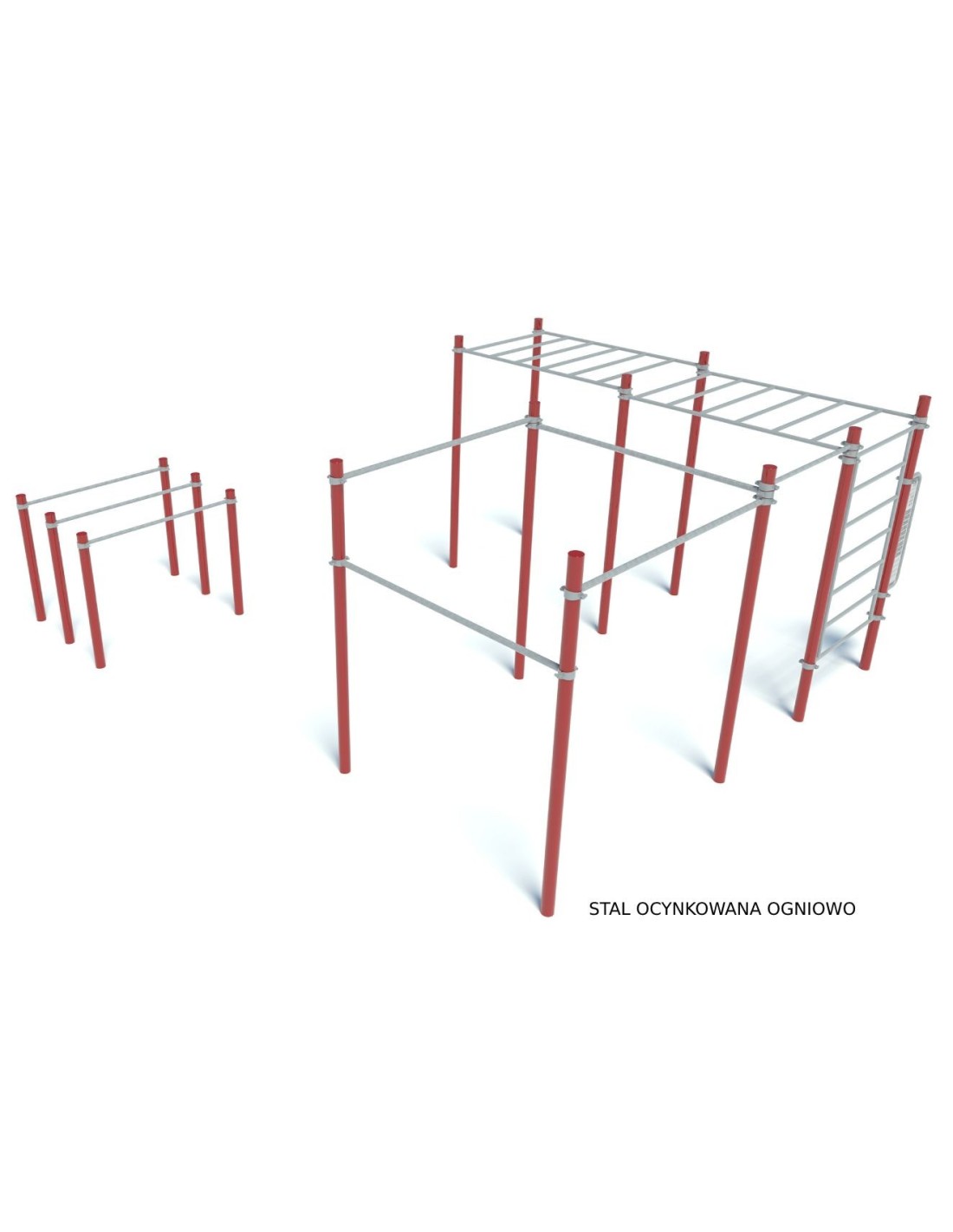

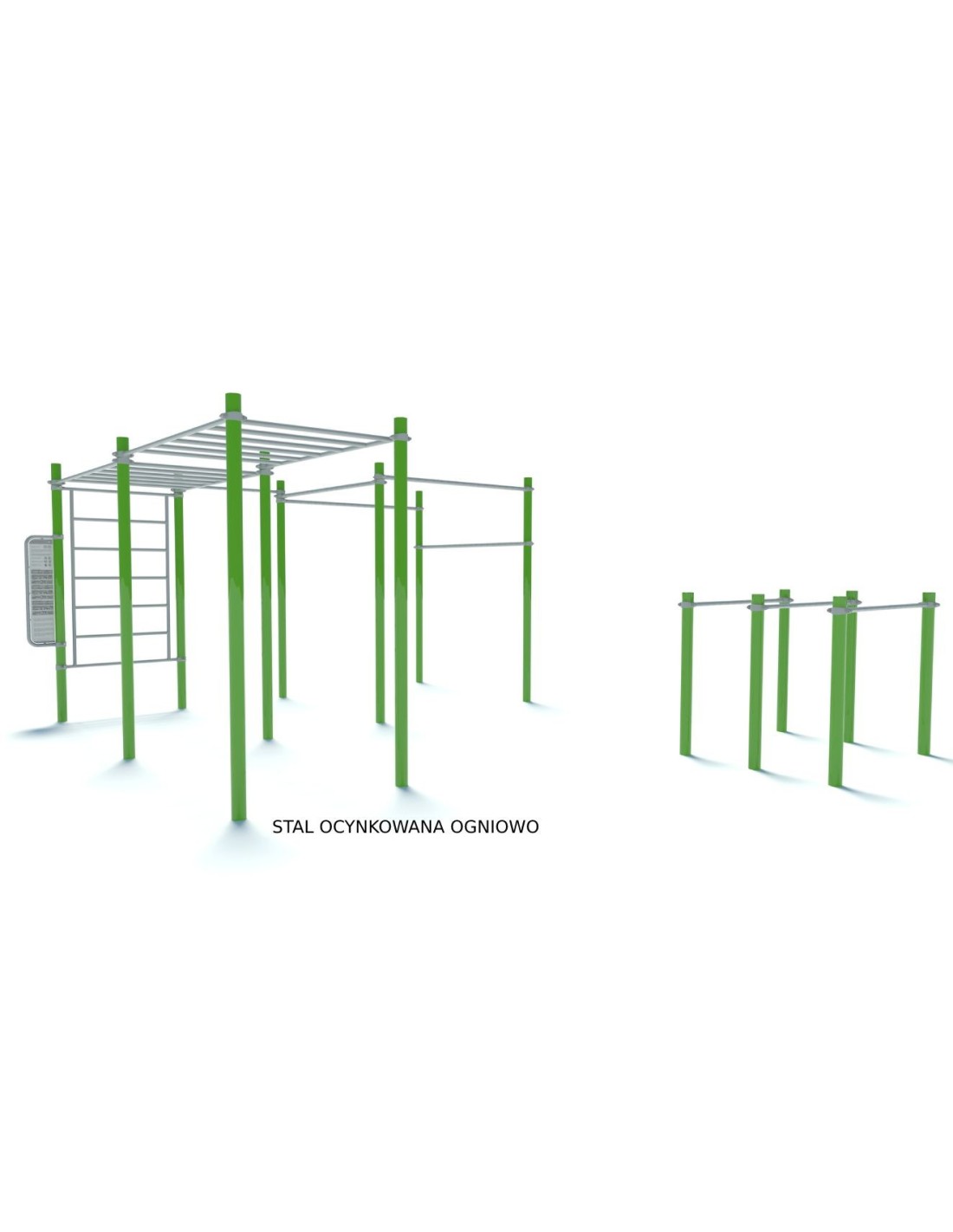

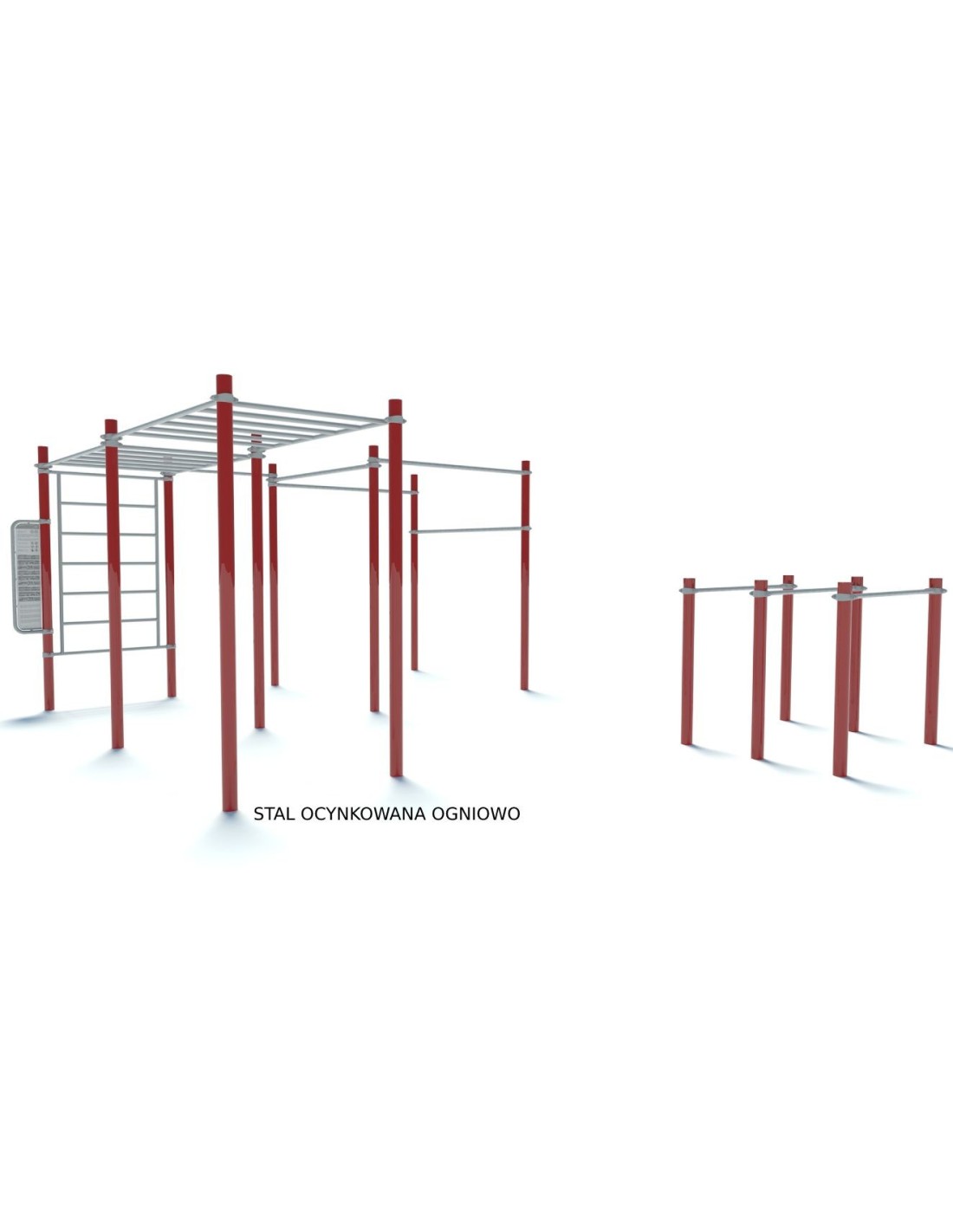

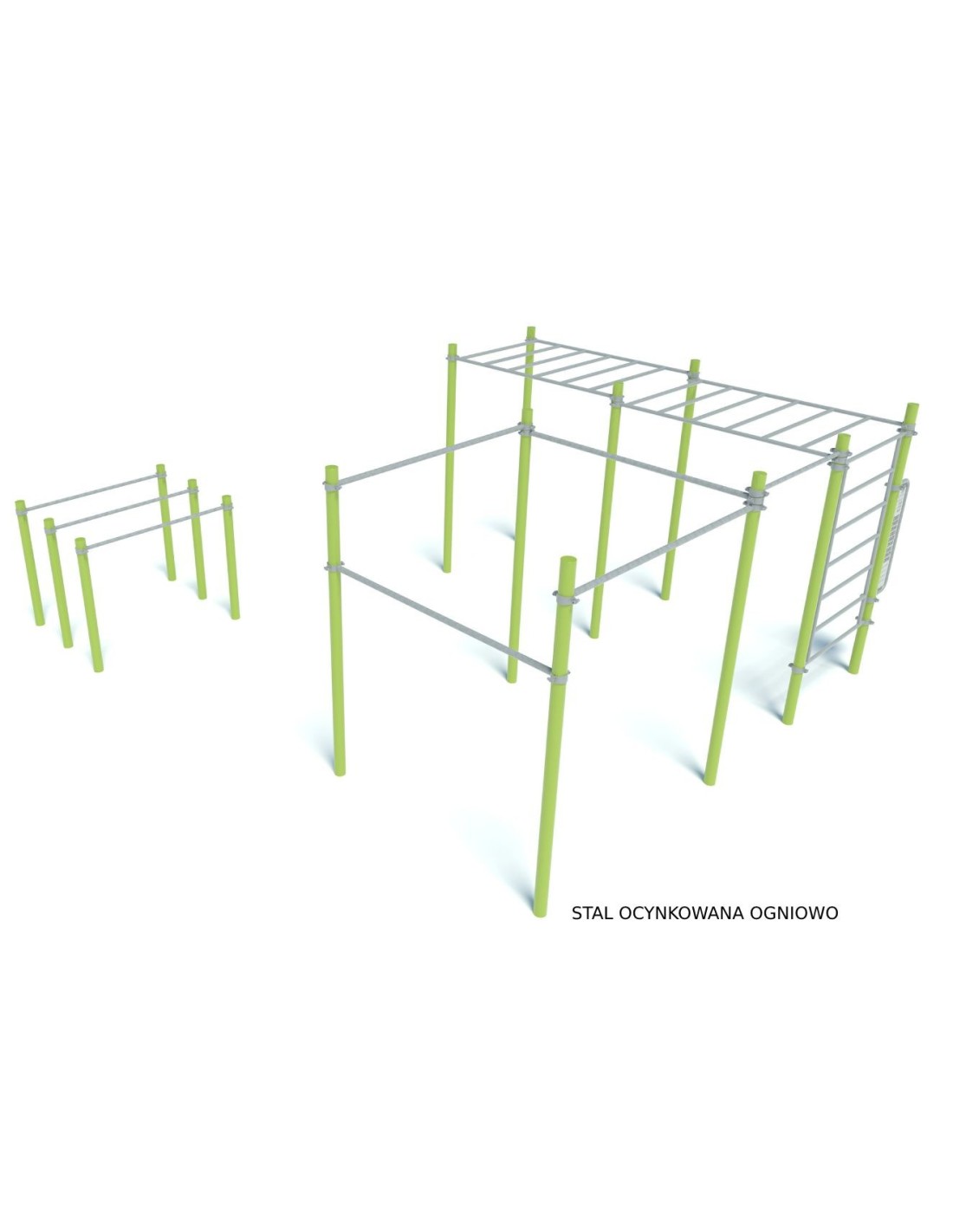

In the basic version, the posts are hot-dip galvanized and powder-coated, while other elements, i.e. bars, ladders, handrails, are hot-dip galvanized without painting.

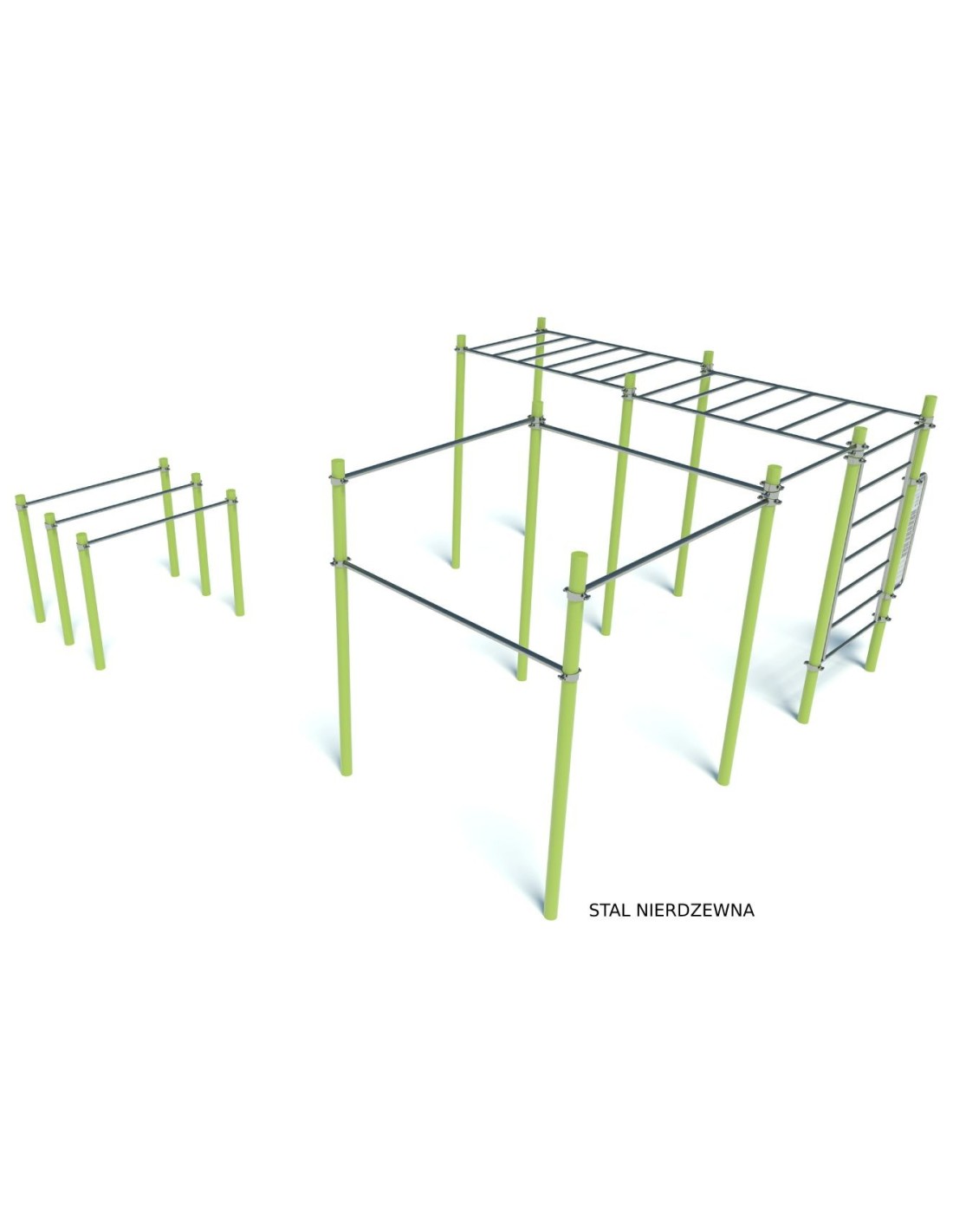

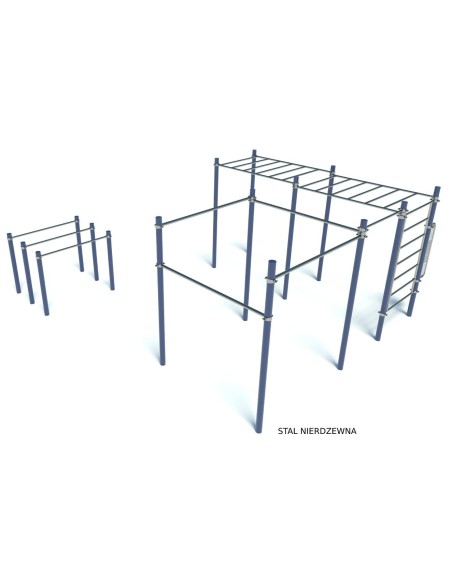

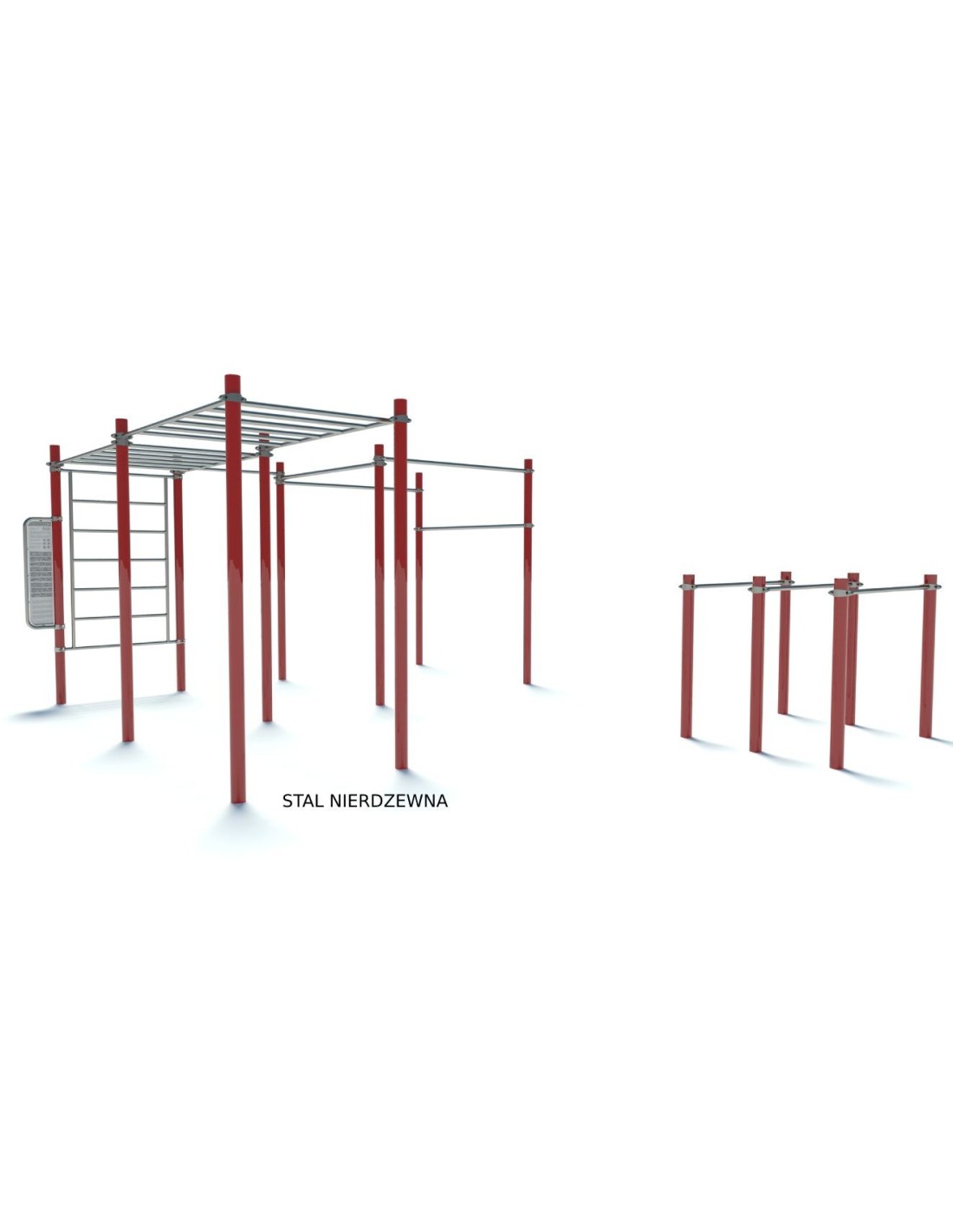

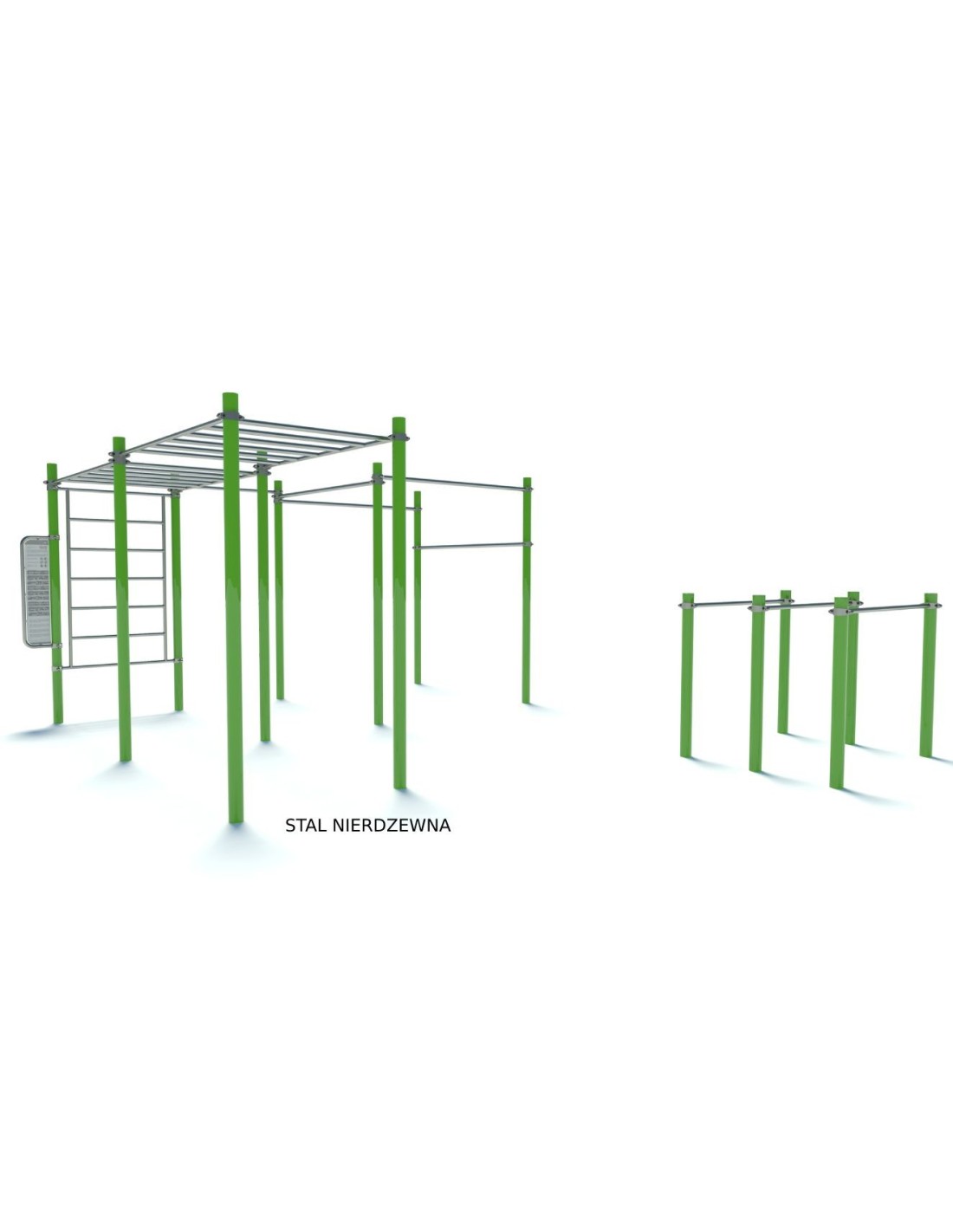

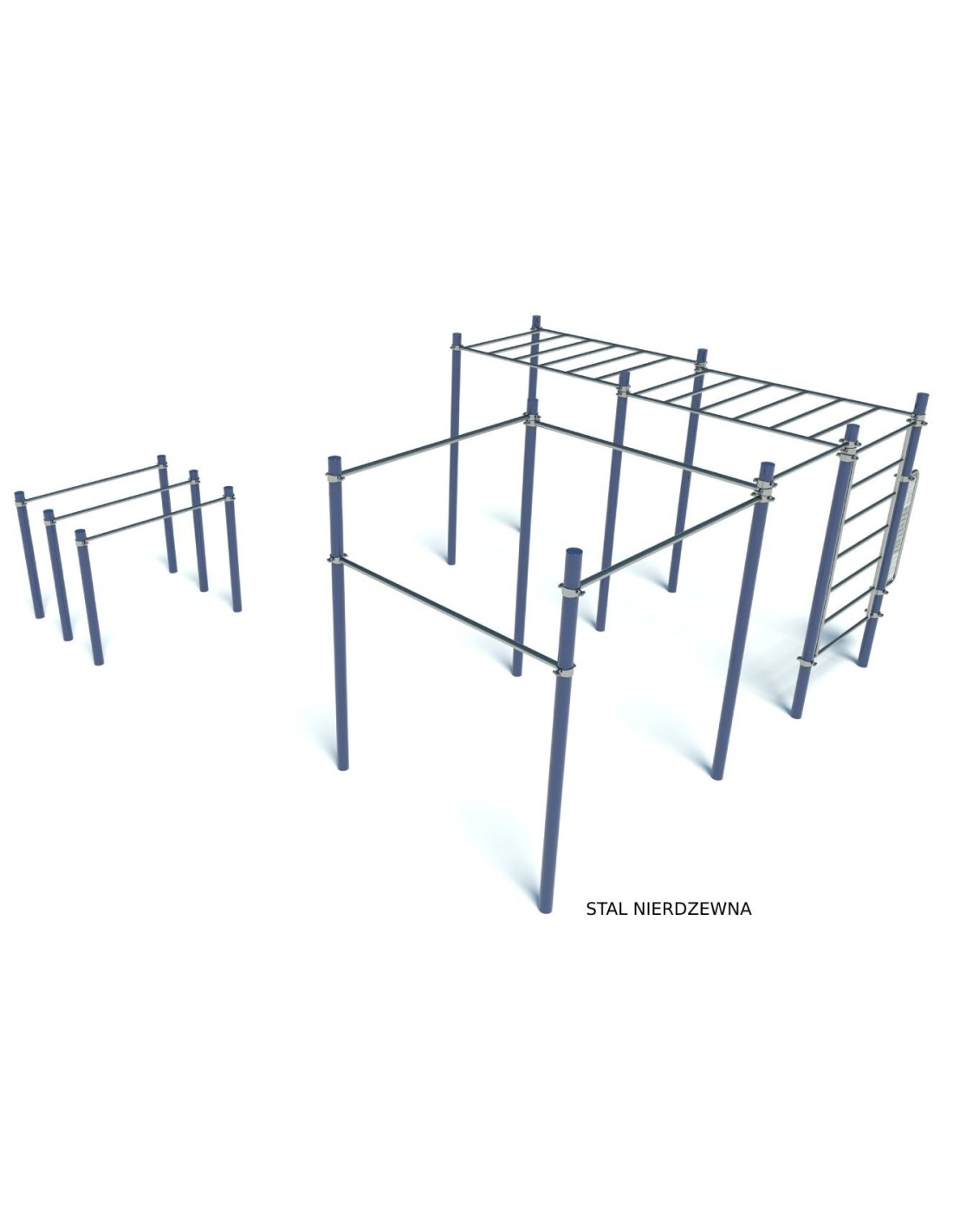

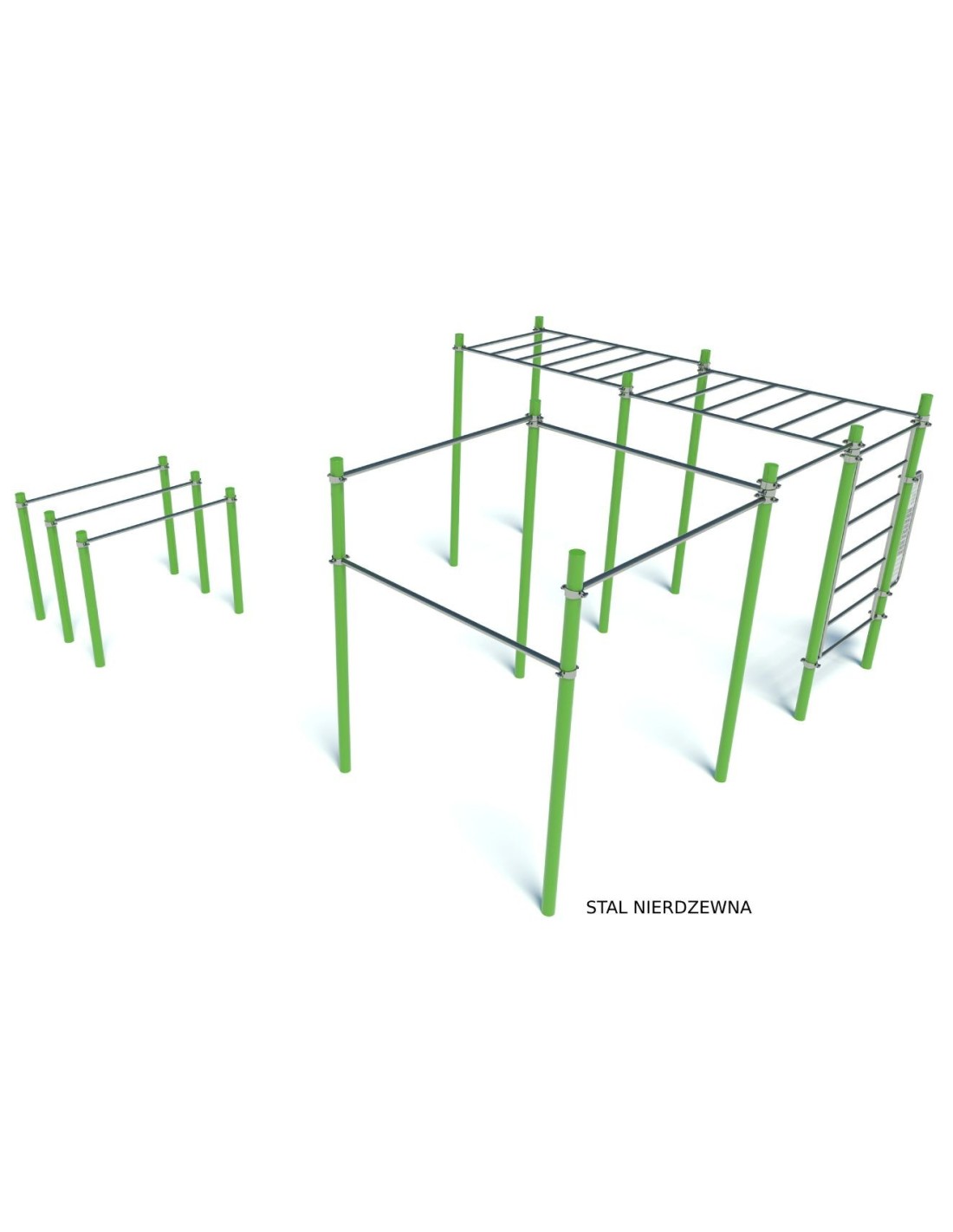

PREMIUM VERSION IN STAINLESS STEEL AVAILABLE - bars, ladders, handrails are made of stainless steel, posts are hot-dip galvanized and powder-coated.
The devices we offer are robust, reliable, resistant to damage and work perfectly in our weather conditions. By changing your neighborhood, you will improve the lifestyle of its residents.
The device sets were developed based on the PN-EN 16630-2015-06 standard. For this reason, they can be used in schools and public recreation areas. They are perfectly suited to the development of public spaces, including: parks, schools, sports fields, beaches and residential areas.
We'd be happy to help you plan your local fitness park - CONTACT US AND JOIN THE WORLD OF OUTDOOR FITNESS!
Free fall height
1.50 m
Set dimensions (length/width/height)
6.38 x 6.04 x 2.50 m
Safety zone
8.38 x 9.64 m (area 65.2 m²)
- Construction pole 2.5 mx 10 pcs.
- Construction pole 1.3 mx 6 pcs.
- Vertical ladder x 1 pc.
- Horizontal ladder x 2 pcs.
- Bar 1.2 mx 1 pc.
- Bar 1.5 mx 3 pcs.
- Bar 2.0 mx 4 pcs.
- Information board on a pole x 1 pc.
Technical parameters- Steel posts: cross-section 88.9, wall thickness 3.6 mm, painted with a double layer of powder paint in any color from the RAL palette
- Other elements (rods, handrails, etc.): cross-section from 33.7 mm to 48.3 mm depending on rod length/wall thickness, similarly from 2.6 mm to 4 mm
- Columns: painted with a double layer of powder paint in any color from the RAL palette
- Posts and other elements: made of hot-dip galvanized steel (without painting) or stainless steel
- Exercise stations: devices are attached to poles using special 5 mm thick clamps, secured with M12 stainless steel screws
- All posts and pipes: plugged to prevent water from entering them
- Information board: hot-dip galvanized steel or stainless steel construction
- Information surface: made by printing on a metal sheet
Additional information- Warranty: 2 years - for device structure and metal elements
- Safety standard: Manufactured in accordance with PN-EN 1176-1:2017-12 and PN-EN 16630-2015-06 standards. Device set developed based on PN-EN 16630-2015-06 standard
- Country of manufacture: Devices made 100% in Poland!
- Foundation method: each column is filled with semi-dry concrete B25 to a depth of 80 cm.
- Safe surface: For devices with a height of more than 1 m, a safe surface with a layer thickness of 30 cm is recommended (bark, gravel, sand, chips or synthetic surface)
- Foundations: are at least 30 cm below ground level to prevent accidental or intentional discovery of the foundation. Volume of the base of a single column foundation: min. 0.125 m3
Safe surface- Sand: fraction from 0.2 to 2 mm, thickness min. 300 mm
- Gravel: fraction from 2 to 8 mm, thickness min. 300 mm
- Bark: fraction from 20 to 80 mm, thickness min. 300 mm
- Chips: fraction from 5 to 30 mm, thickness min. 300 mm
- Synthetic surfaces: (cast EPDM, EPDM tiles, overgrowth mats) manufactured according to PN-EN 1177:2017 standard
