Street workout outdoor exercise equipment.
Remember the ladders on the school playground? Our sets are a new, expanded version. Streetworkout equipment is especially popular among young people and adults. Both men and women want to show off their skills among their peers.

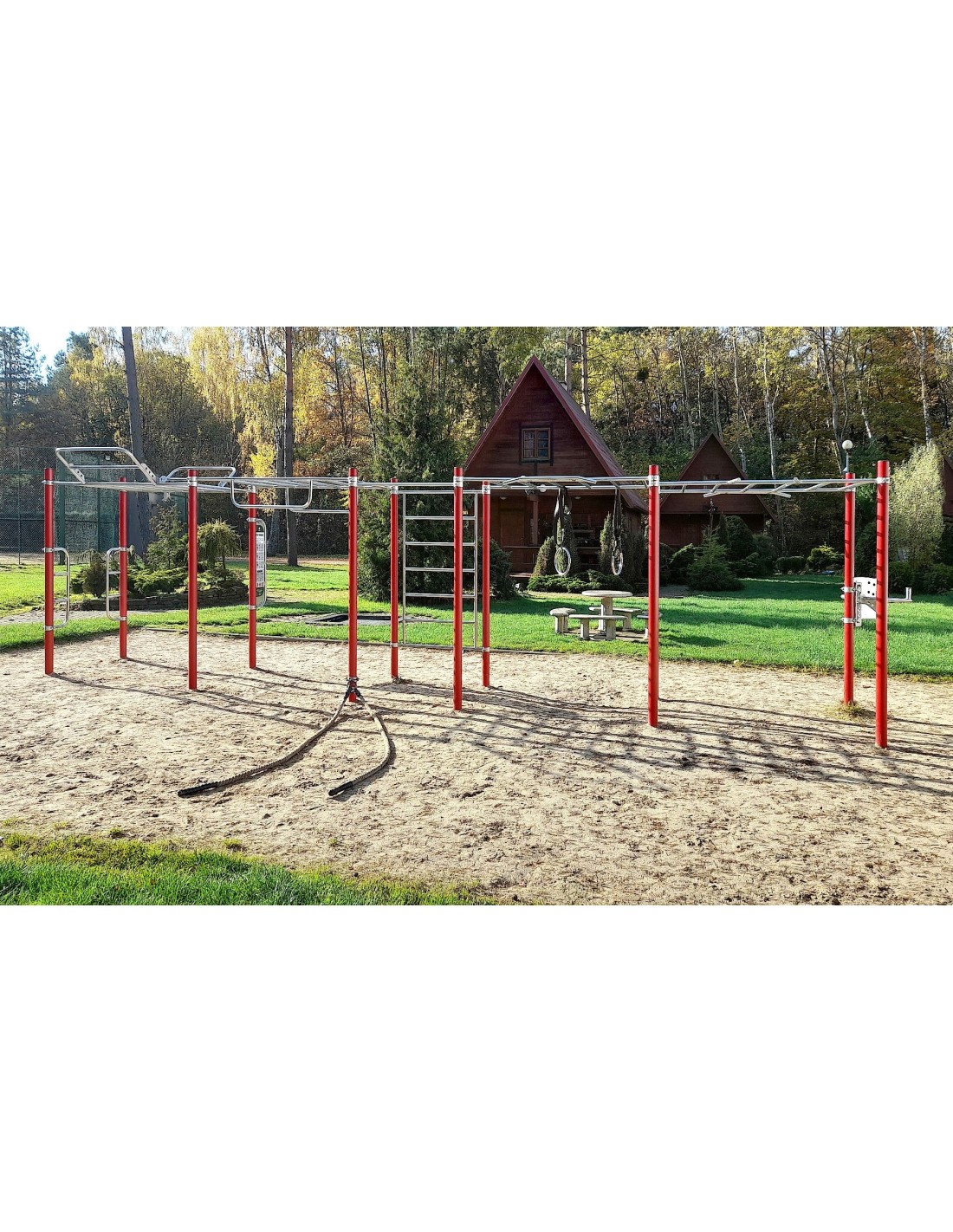

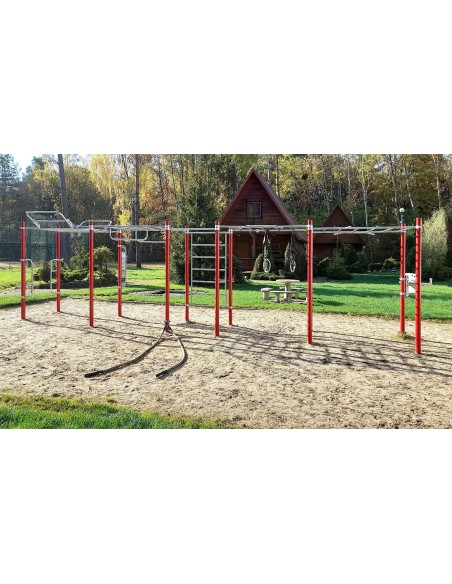

The CrossFit Station set is a powerful training set that combines CrossFit and streetworkout. Various exercise elements will provide a huge dose of adrenaline for demanding users. Expansion is possible with additional equipment such as benches, low rails and many others.
Usage : Slowly step onto the platform, grab the handrails and pull-up bar with your hands, and begin exercising at any pace. The exercises can also be performed without holding onto the handrails.
Exercise difficulty : difficult.

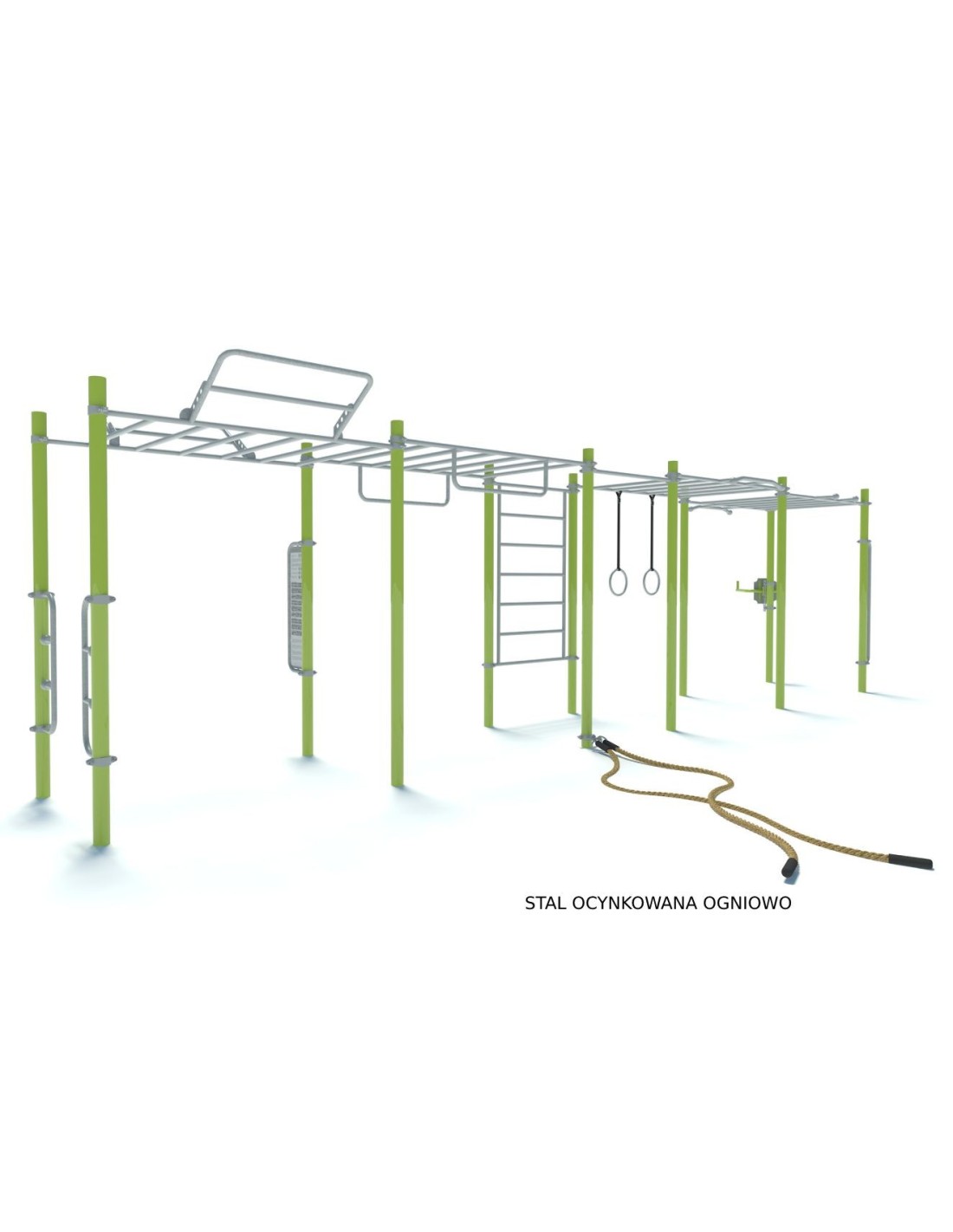

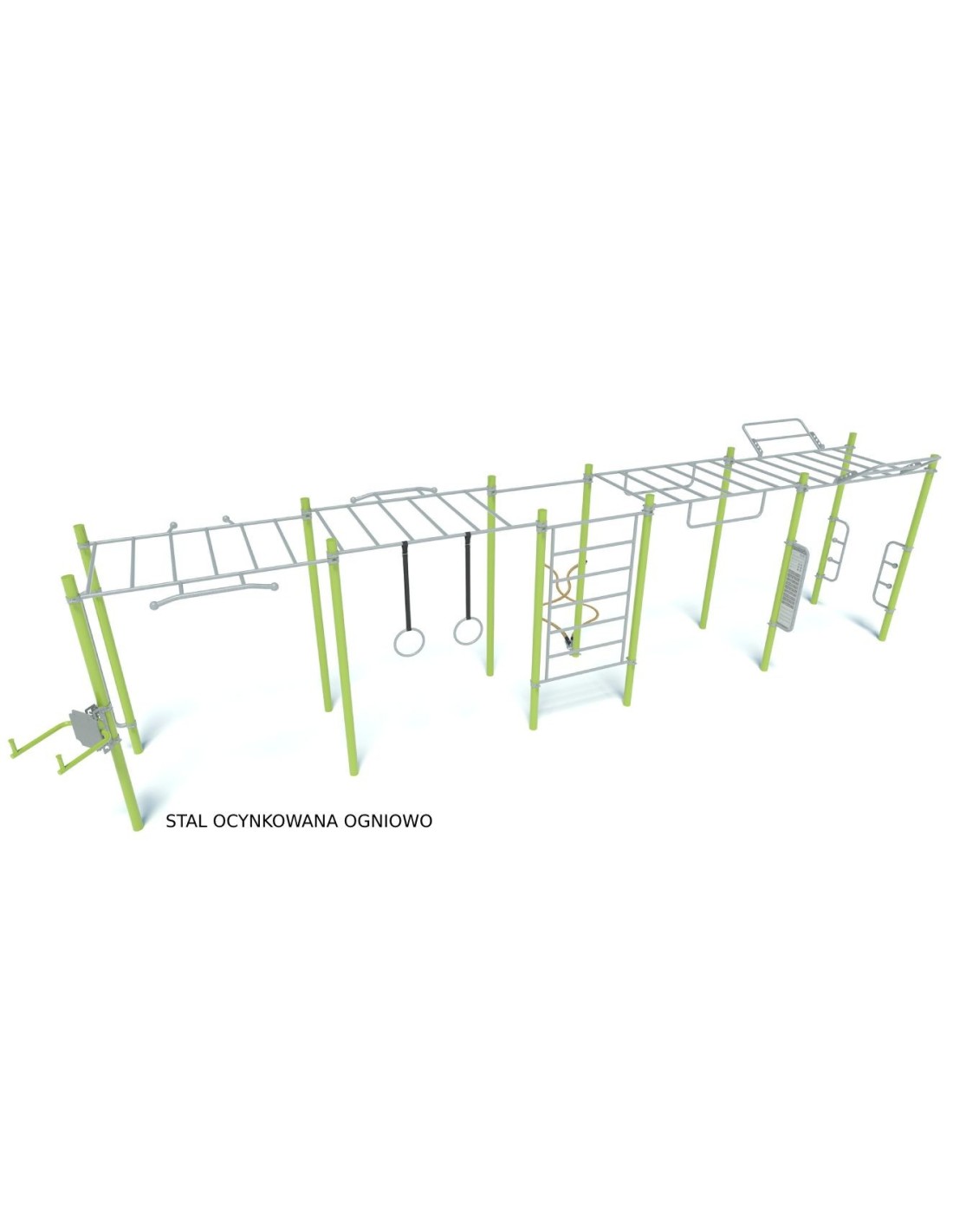

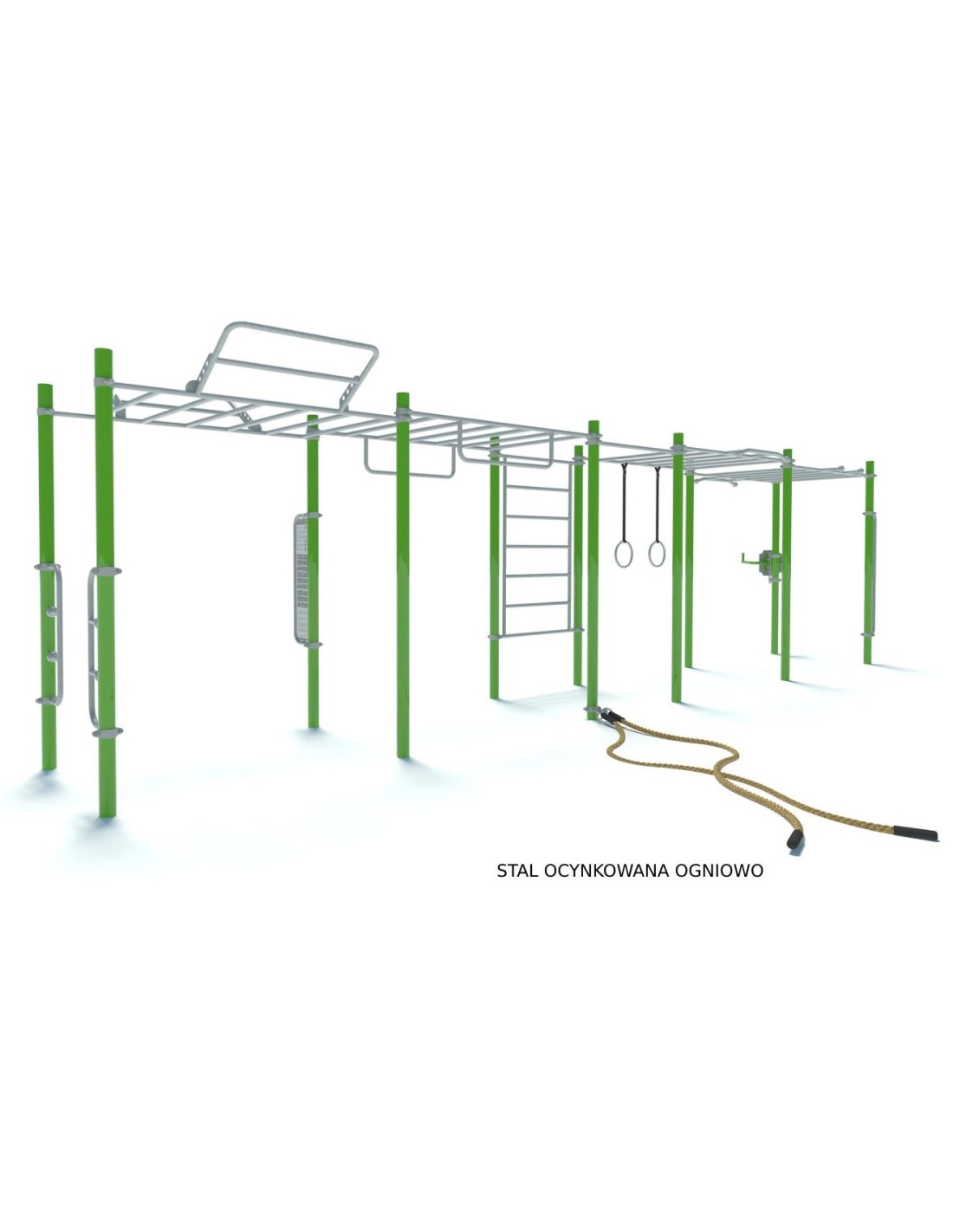

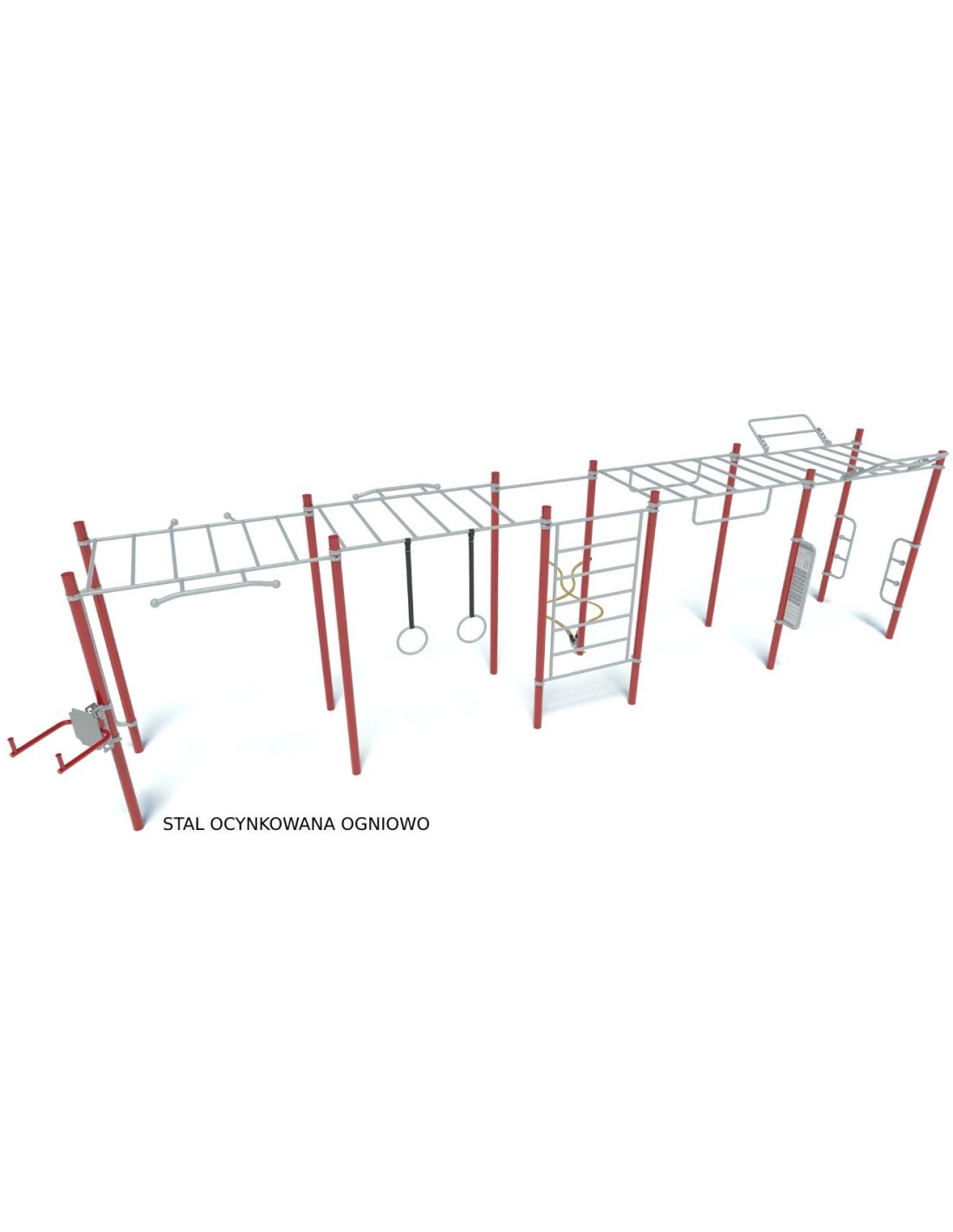

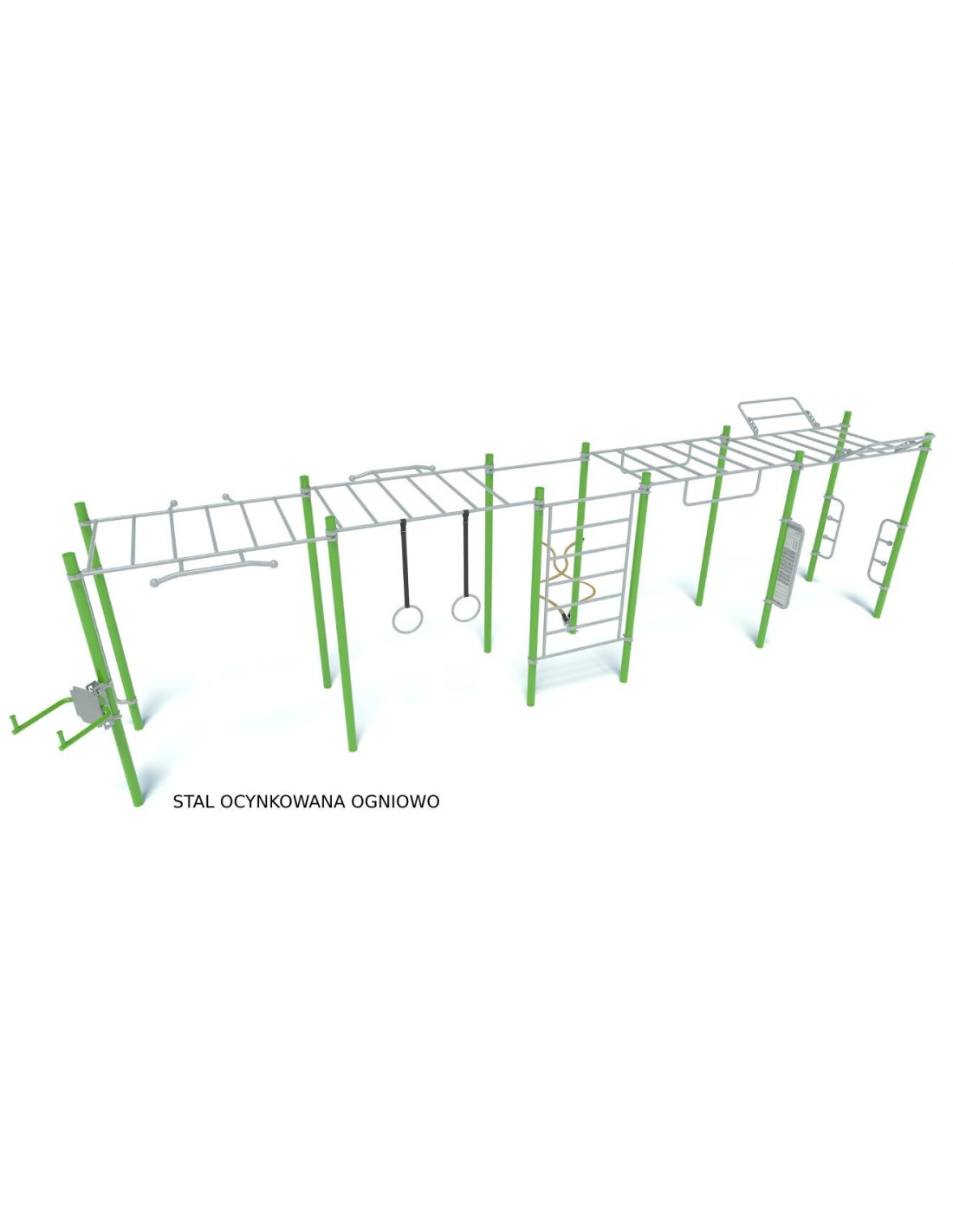

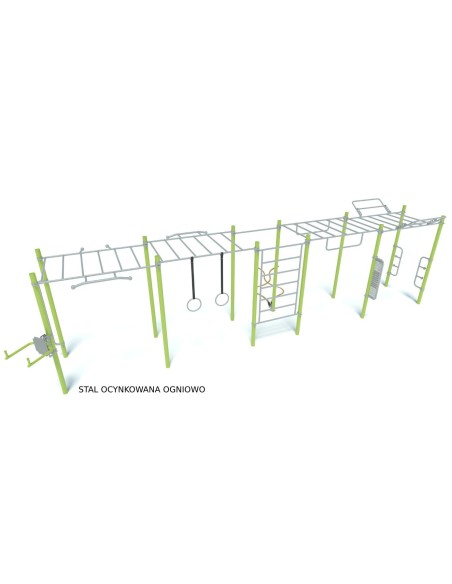

In the basic version, the posts are hot-dip galvanized and powder-coated, while other elements, i.e. bars, ladders, railings, are hot-dip galvanized without painting.

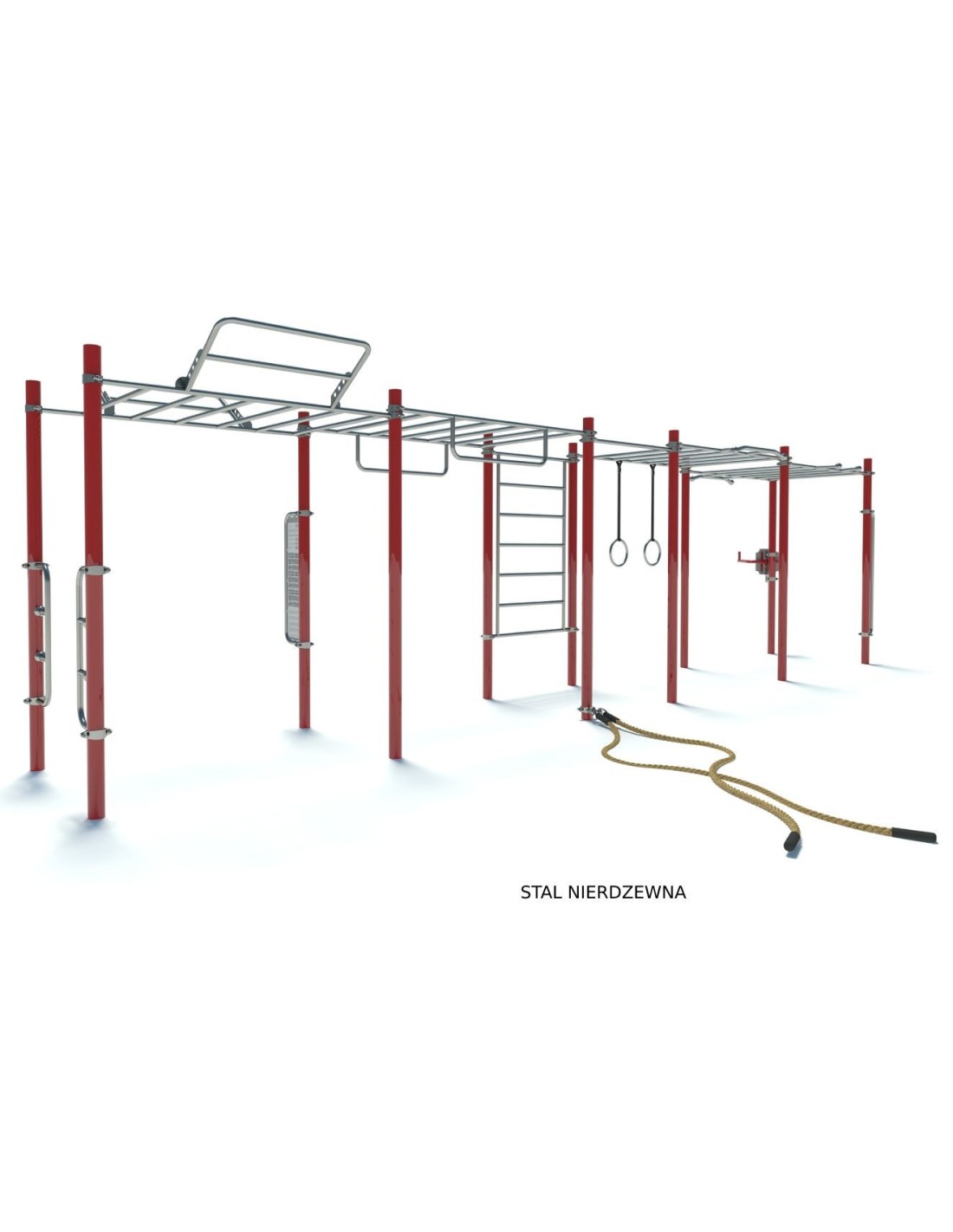

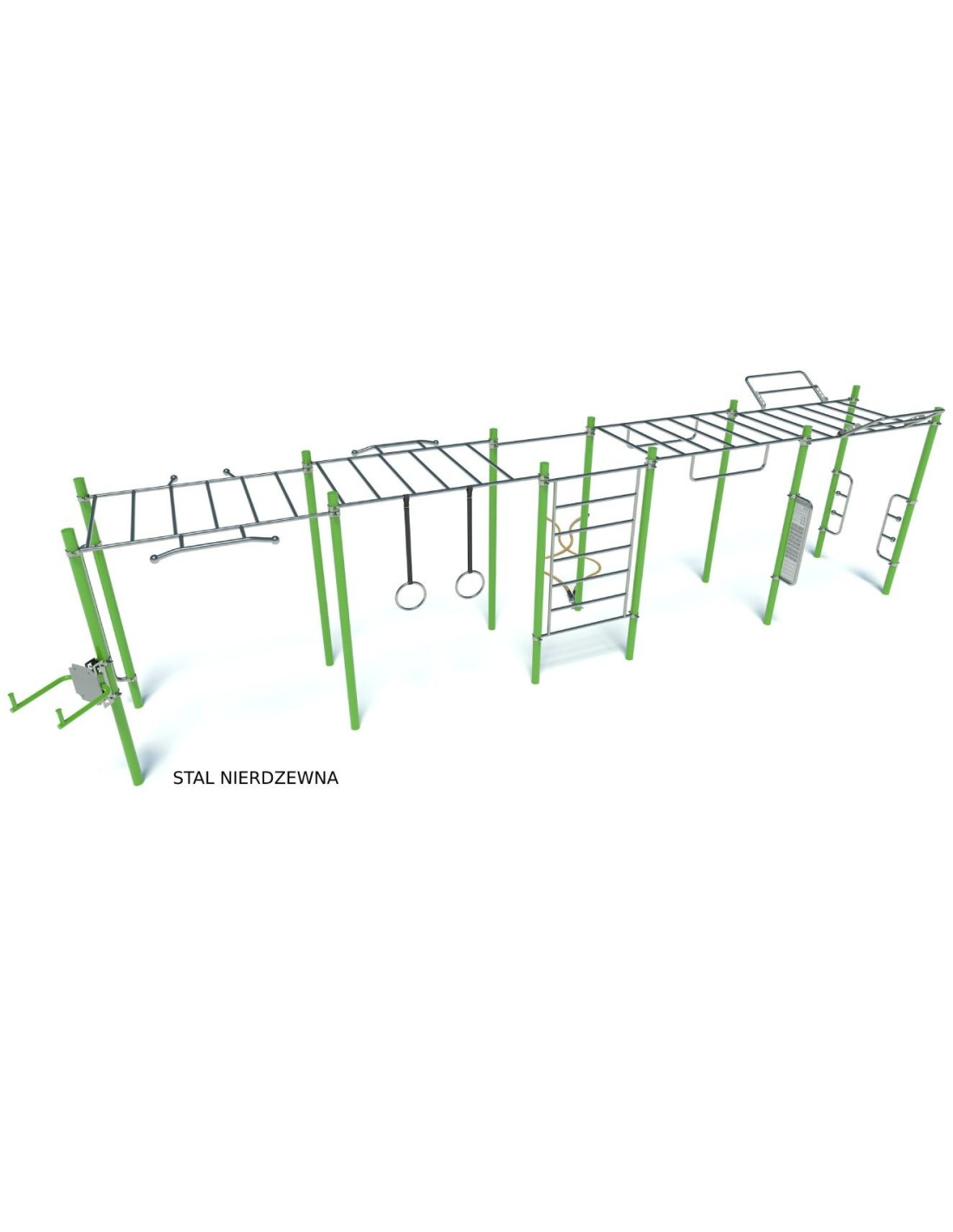

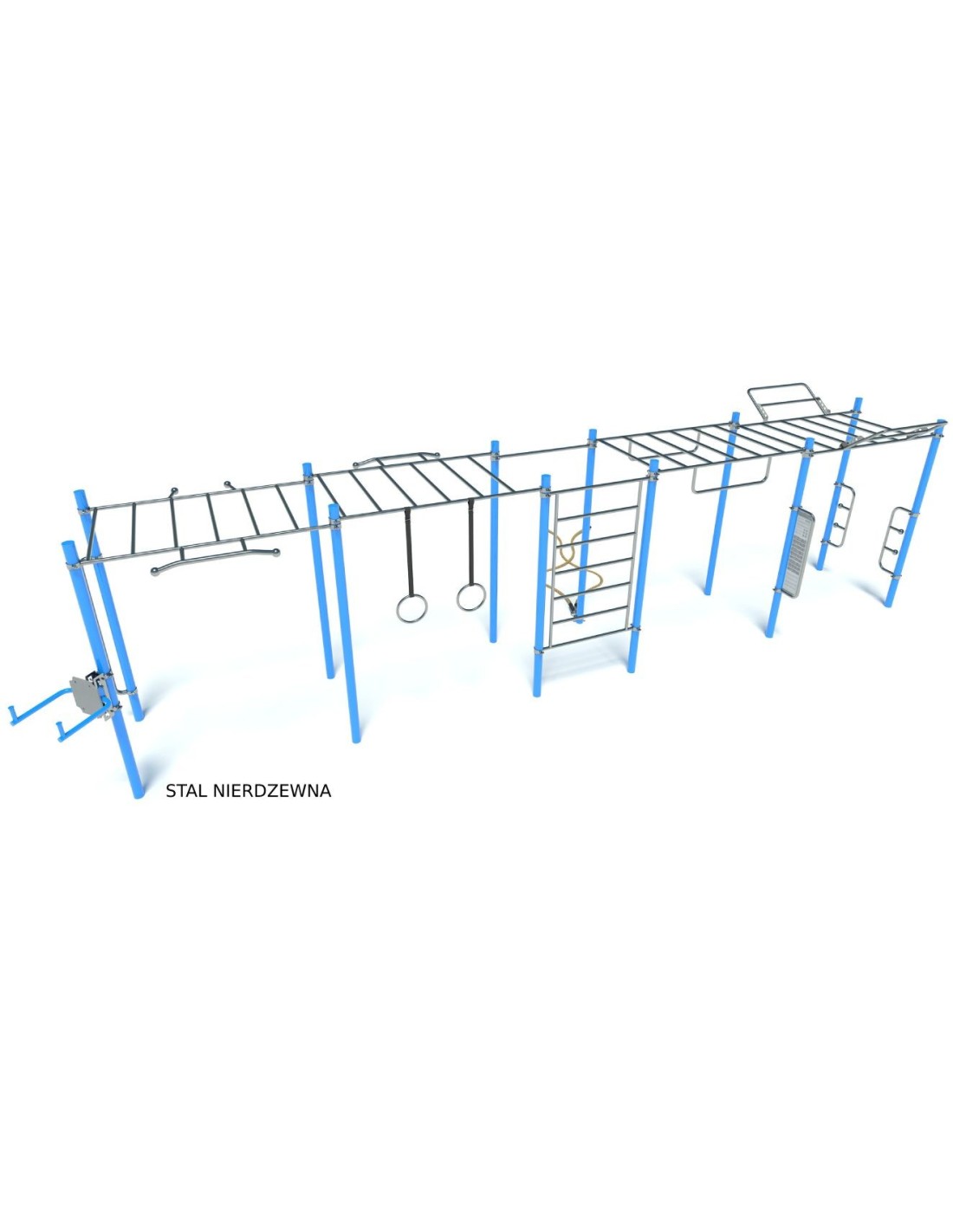

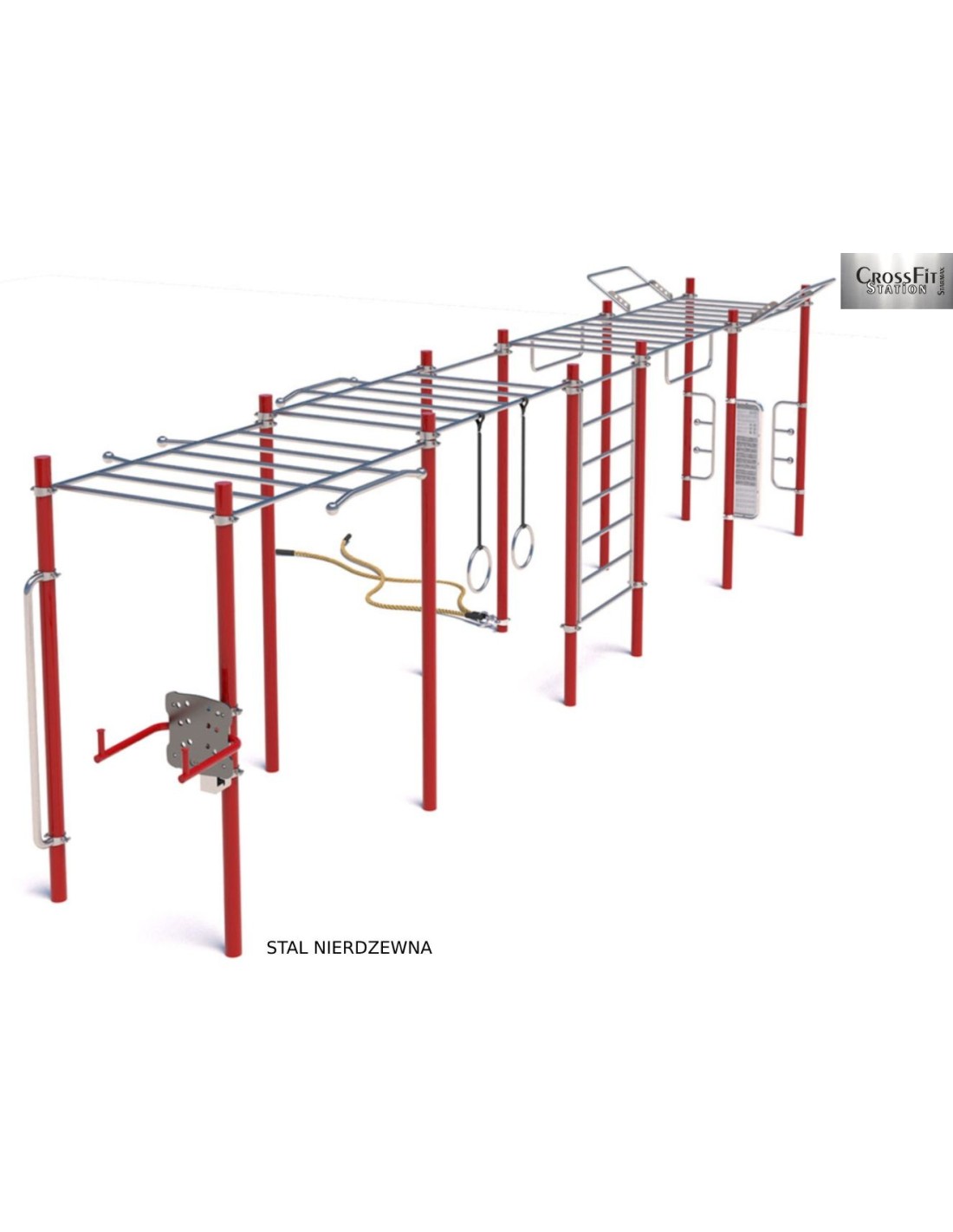

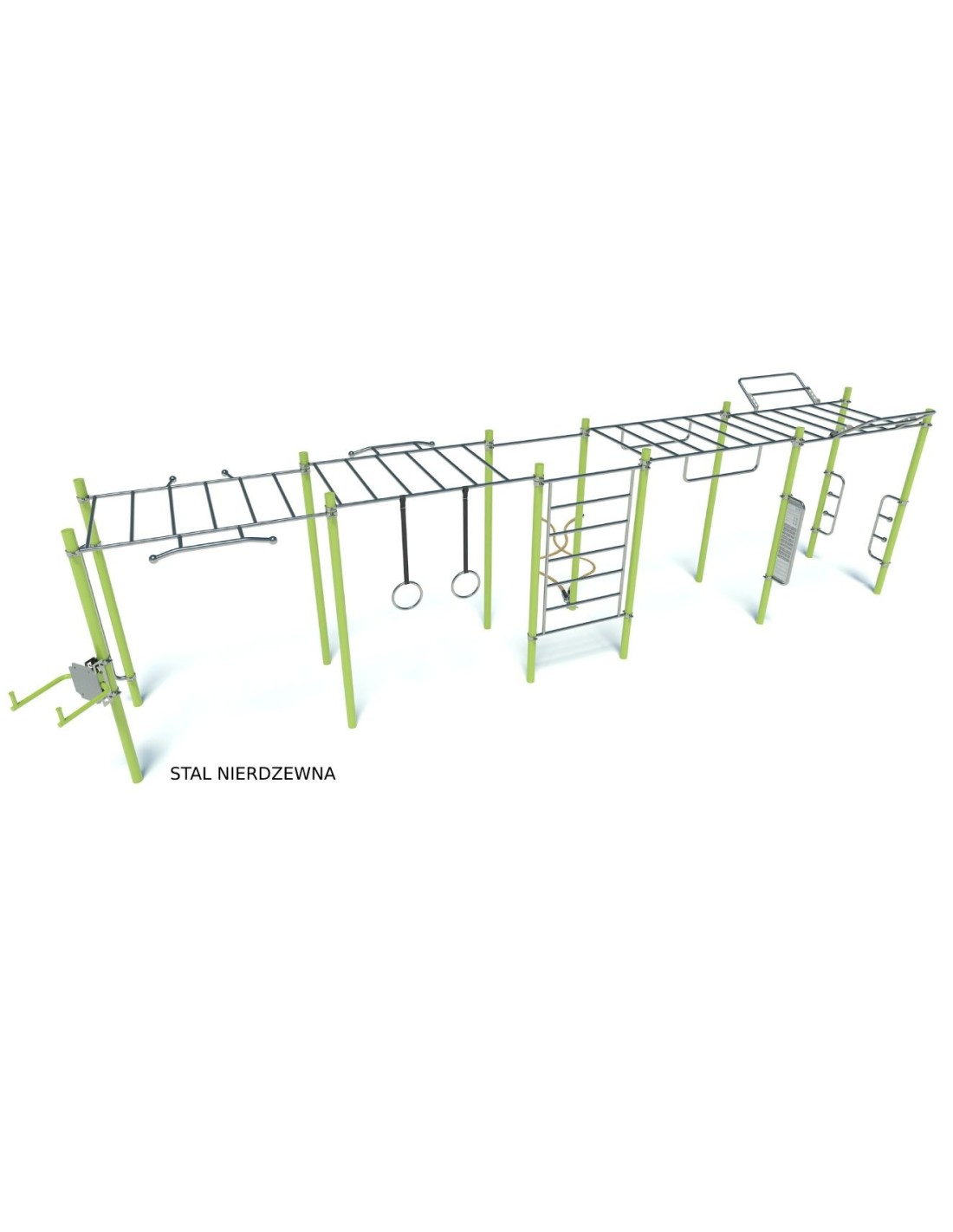

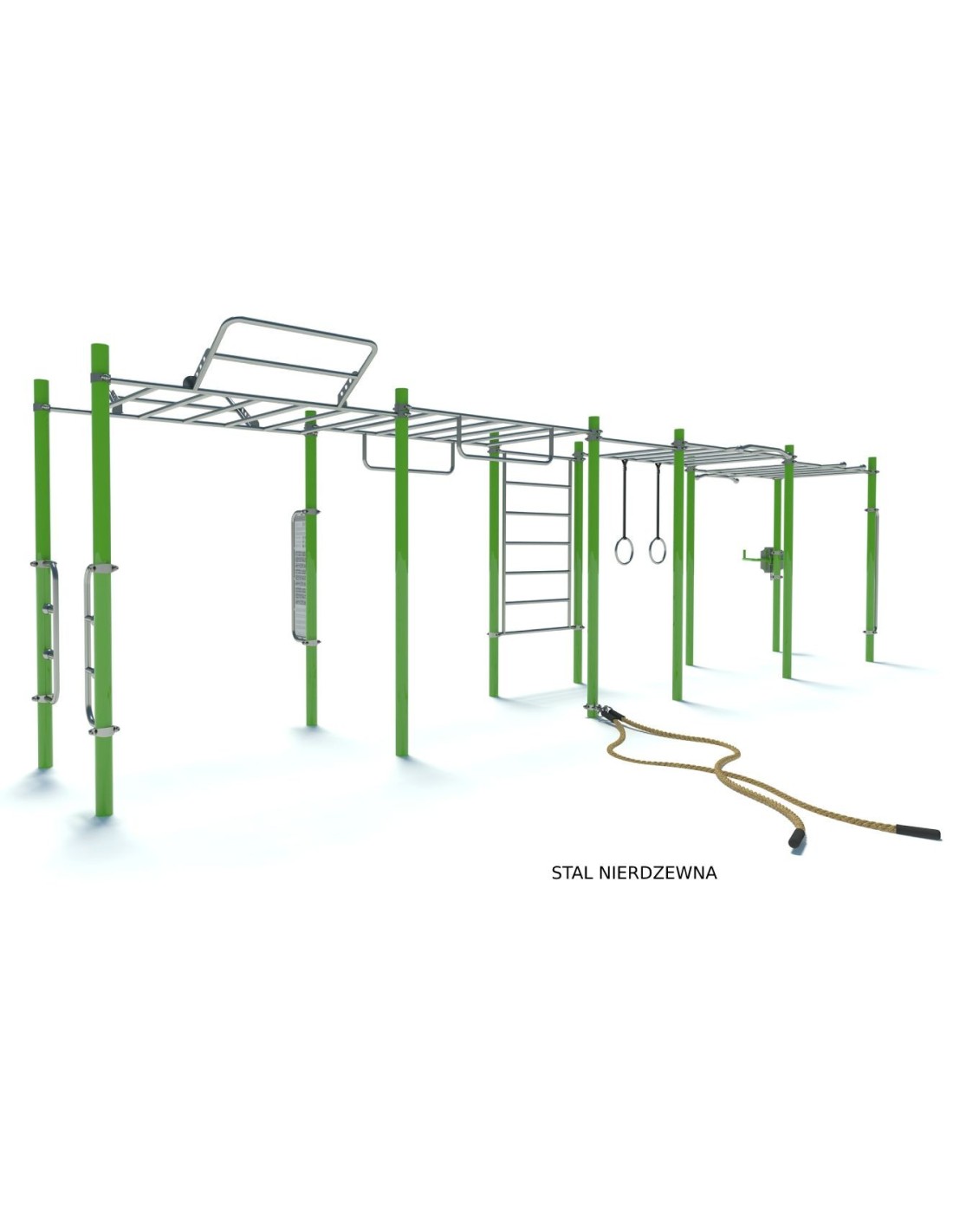

PREMIUM VERSION IN STAINLESS STEEL AVAILABLE - bars, ladders, handrails are made of stainless steel, posts are hot-dip galvanized and powder-coated.
The devices we offer are robust, reliable, resistant to damage and work perfectly in our weather conditions.
The device sets were developed based on the PN-EN 16630-2015-06 standard. For this reason, they can be used in schools and public recreation areas. They are perfectly suited to the development of public spaces, including: parks, schools, sports fields, beaches and residential areas.
By changing your neighborhood, you will improve the lifestyle of its residents. We will be happy to help you plan a local fitness park - CONTACT US AND JOIN THE WORLD OF OUTDOOR FITNESS!
Free fall height
1.65 m
Set dimensions (length/width/height)
9.95 x 2.35 x 2.50 m
Safety zone
12.95 x 7.17 m (area 69.5 m2)
- Construction pole 2.5 mx 12 pcs.
- Vertical ladder x 1 pc.
- Barbell/Pull bar horizontal ladder x 1 pc.
- Hammer horizontal ladder x 1 pc.
- Overhead horizontal ladder x 1 pc.
- Horizontal ladder Up x 1 pc.
- Bar 1.2 mx 1 pc.
- Height-adjustable handrail x 1 pc.
- Push-up handrails, set. x 1 pc.
- Gymnastics rings for hanging x 1 pc.
- Battle rope x 1 pc.
- Information board on a pole x 1 pc.
Technical parameters- Steel posts: cross-section 88.9, wall thickness 3.6 mm, painted with a double layer of powder paint in any color from the RAL palette
- Other elements (rods, handrails, etc.): cross-section from 33.7 mm to 48.3 mm depending on rod length/wall thickness, similarly from 2.6 mm to 4 mm
- Columns: painted with a double layer of powder paint in any color from the RAL palette
- Posts and other elements: made of hot-dip galvanized steel (without painting) or stainless steel
- Exercise stations: devices are attached to poles using special 5 mm thick clamps, secured with M12 stainless steel screws
- Fillings and backrests: made of 12 mm thick HDPE board
- All posts and pipes: plugged to prevent water from entering them
- Handrails with individual height adjustment: powder-coated hot-dip galvanized steel or stainless steel elements
- Information board: hot-dip galvanized steel or stainless steel construction
- Information surface: made by printing on a metal sheet
Additional information- Warranty: 2 years - for device structure and metal elements
- Safety standard: Manufactured in accordance with PN-EN 1176-1:2017-12 and PN-EN 16630-2015-06 standards. Device set developed based on PN-EN 16630-2015-06 standard
- Country of manufacture: Devices made 100% in Poland!
- Foundation method: each column is filled with semi-dry concrete B25 to a depth of 80 cm.
- Safe surface: For devices with a height of more than 1 m, a safe surface with a layer thickness of 30 cm is recommended (bark, gravel, sand, chips or synthetic surface)
- Foundations: are at least 30 cm below ground level to prevent accidental or intentional foundation exposure. Volume of single column foundation base: min. 0.125 m3
Safe surface- Sand: fraction from 0.2 to 2 mm, thickness min. 300 mm
- Gravel: fraction from 2 to 8 mm, thickness min. 300 mm
- Bark: fraction from 20 to 80 mm, thickness min. 300 mm
- Chips: fraction from 5 to 30 mm, thickness min. 300 mm
- Synthetic surfaces: (filled EPDM, EPDM tiles, overgrowth mats) manufactured according to PN-EN 1177:2017 standard
