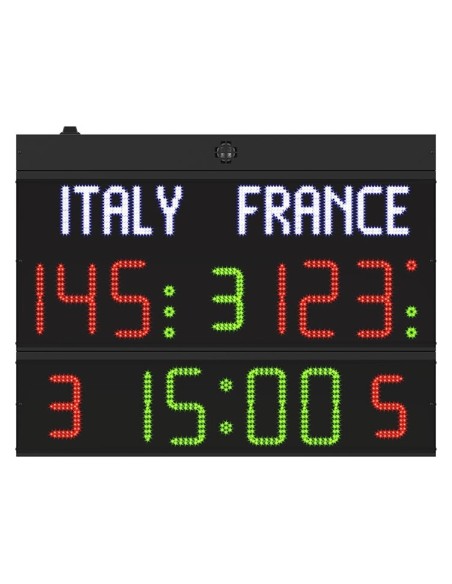

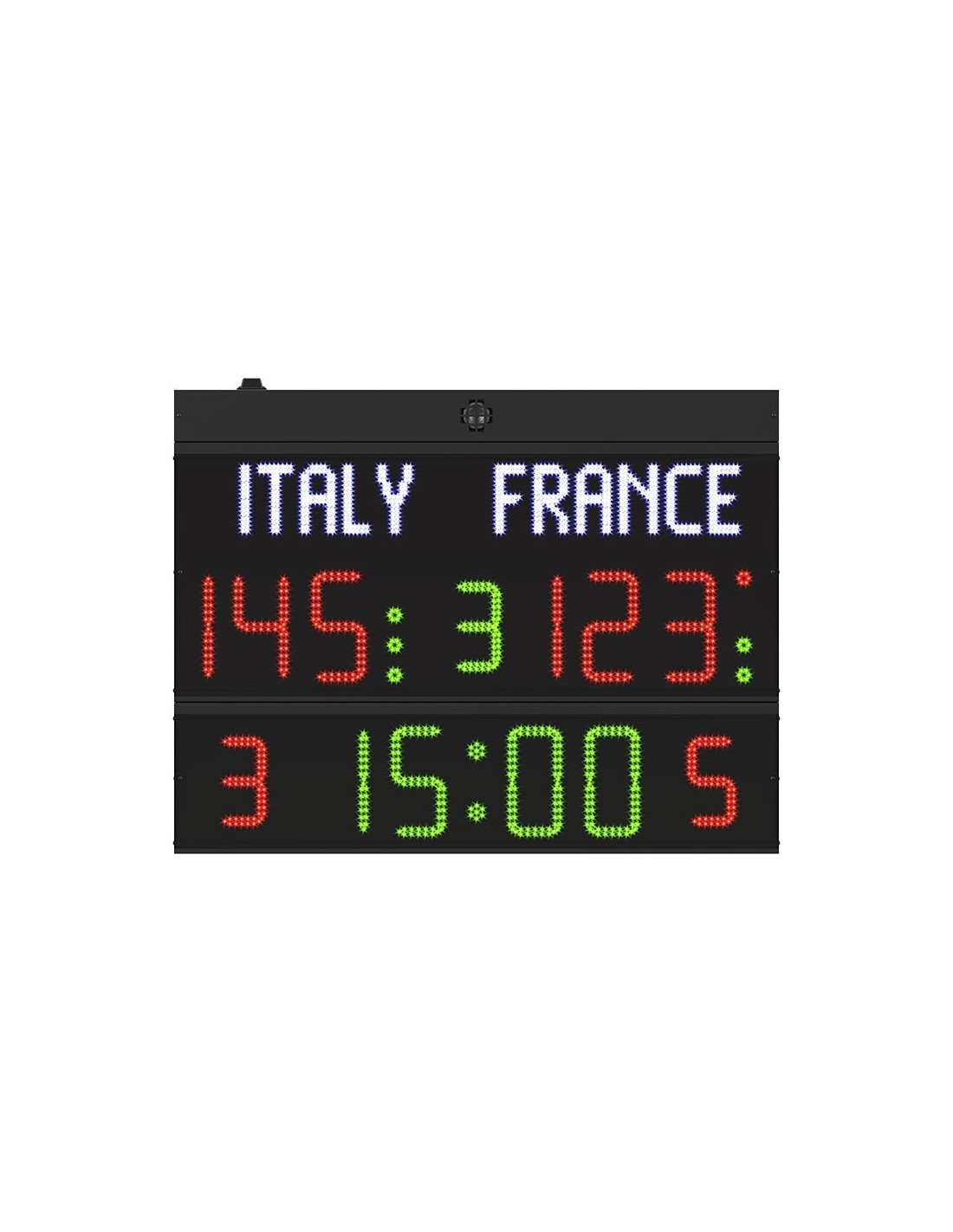

Display readings:
Programmable team names (6 characters per team) – 16 cm high,
Game time (00:00 – 99:59) – 25 cm high,
Team points (0 – 199) – 25 cm high,
Quarter (0 – 9, E) – 15 cm high,
Team penalty points/winning series (0 – 9): 20 cm high,
Breaks (3 light indicators for each team) – 2.5 cm diameter,
Ball possession/passes/turnover (1 light indicator per team) – 2.5 cm diameter.
Features:
Visibility angle: 150°,
Screen displays: team points, game time, timeouts, team fouls, half, ball possession,
Ball impact resistant according to DIN 18032-3 and UNI 9554:1989 standards,
No cover is required on the front – this not only saves you money, but also maintains clear visibility and easy access to the scoreboard,
Wired or wireless control can be connected (depending on which control console you purchase additionally),
Time of day display,
Audible signal,
Suitable for indoor use,
Mounted on the wall, mounting brackets included,
Multifunctional, suitable for use in small gyms,
FIBA approved, level 2,
Visibility: 25 cm high – 110 meters, 20 cm high – 90 meters,
Visibility angle – 150°,
Easy installation,
Clock function – displays the time, even when the control console is disconnected,
The audible signal can be triggered manually or automatically after a timeout. It emits a loud signal (120 dB(A) at 1 m). The intensity and duration are adjustable,
Durable aluminum frame construction with powder coating. Front covered with polycarbonate, which does not reflect the sun,
To ensure easy access for maintenance, all internal parts can be accessed from the front,
Large, high-quality SMT LED digits with a lifespan of approximately 100,000 hours,
Power supply: 100-240VAC, 50/60 Hz, 160 VA. Cable and plug included,
Warranty – 2 years,
Dimensions: 140 x 108 x 9 cm,
Weight: 33 kg.
Lightbox included with wireless CONCOLE-700

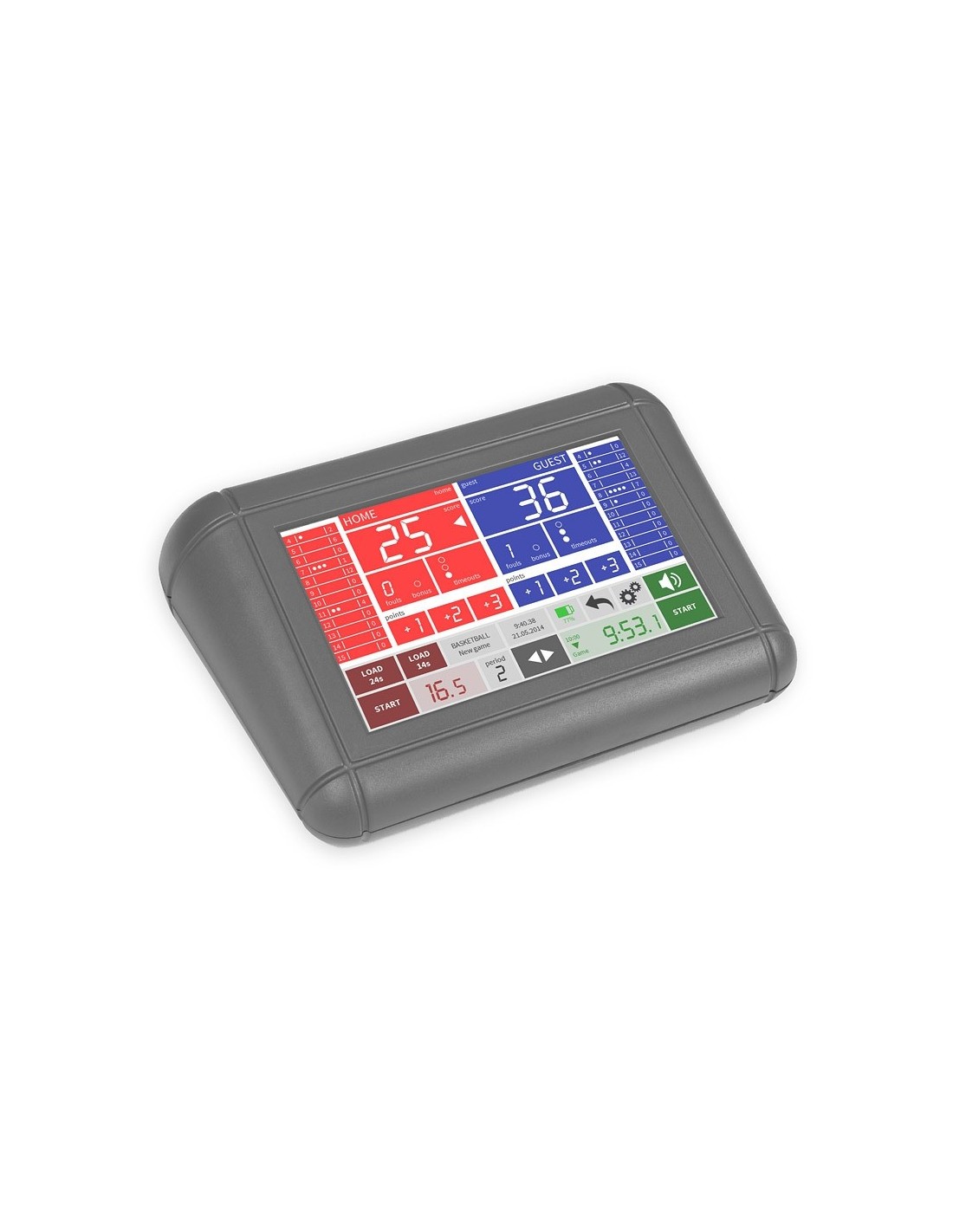

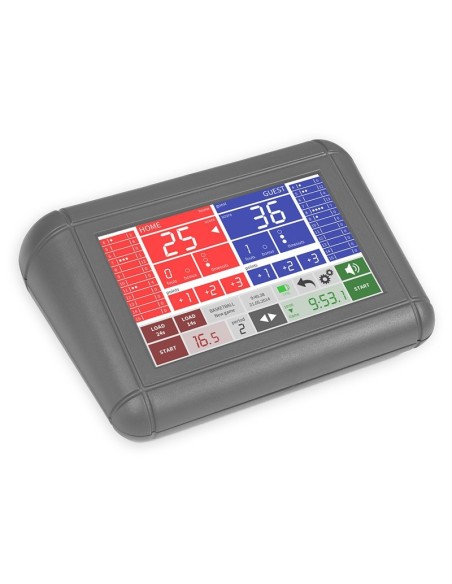

CONSOLE-700 features:
Designed for controlling multifunctional sports scoreboards
7" (18 cm) diagonal color touchscreen
Intuitive control
Can operate for 14 hours without recharging, uses rechargeable lithium batteries
Uses 2.4GHz frequency for data transmission to avoid interference with other devices
USB port for software updates when game rules change
Environmentally resistant according to EN-60950 standard
Modern and ergonomic design suitable for use on a table or in the hand
Battery charger and power cord included
Warranty - 2 years
