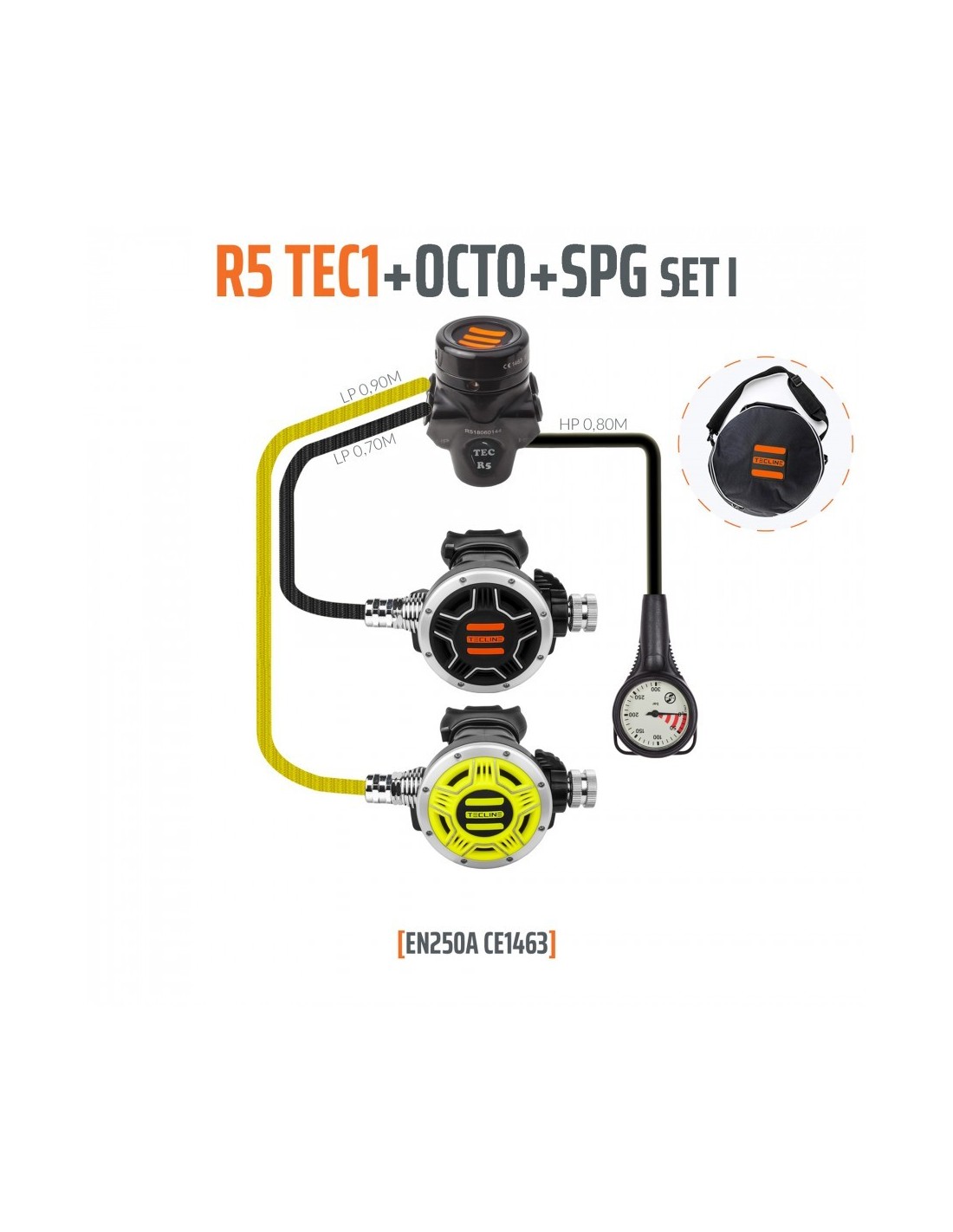

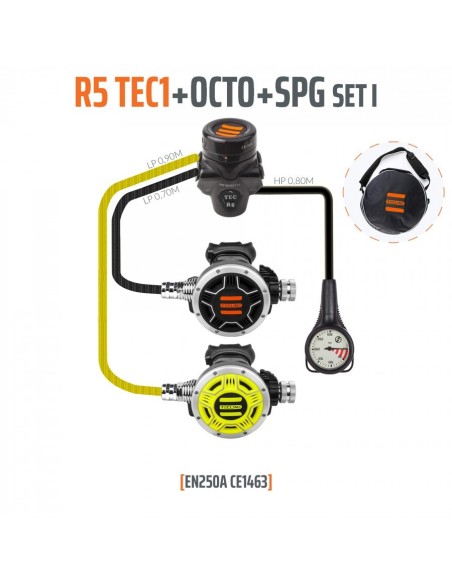

TecLine R5 TEC1 series of diaphragm regulators has proven itself in practice and in tests. Test results show that these regulators fully comply with EN 250A; CE1463, which meet the requirements of cold water standards. The Ice dry chamber thermal protection is separated from the main diaphragm and the optional Cold Kit diaphragm, making the regulator particularly resistant to the coldest water conditions. These regulators are convenient to use with both standard BCDs and wing-type buoyancy compensators. This design allows TecLine R5 TEC1 to be used with one or two cylinders. TecLine R5 TEC1 second stage has both breathing resistance and Venturi flow control. The heat exchanger improves thermal regulation in cold water, reducing the risk of icing. The breathing resistance of approximately 1 J/l reduces breathing effort and helps reduce gas consumption. This shows the high level of performance you expect from a world-class regulator. TecLine R5 TEC1 regulators are thoroughly tested in extreme environmental conditions, from ice diving to cave diving in muddy environments and the tropics. After assembly and adjustment, all regulators are checked by two independent technical experts to ensure compliance with standards and quality. This regulator model is suitable for use with Nitrox mixtures with an oxygen content of up to 40%. The manufacturer provides a 10-year warranty to the first owner, guaranteeing that the regulator is free from manufacturing and material defects. The warranty is valid provided that timely maintenance is carried out in authorized centers at least once a year or after 50 dives with this regulator. Overall, TecLine R5 TEC1 regulator is of high quality and meets the needs of even the most demanding divers.

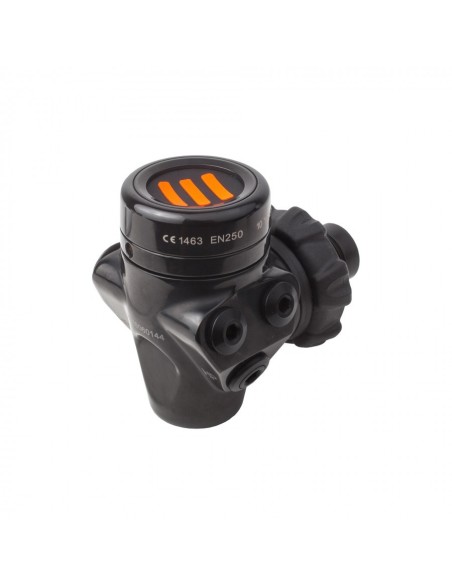

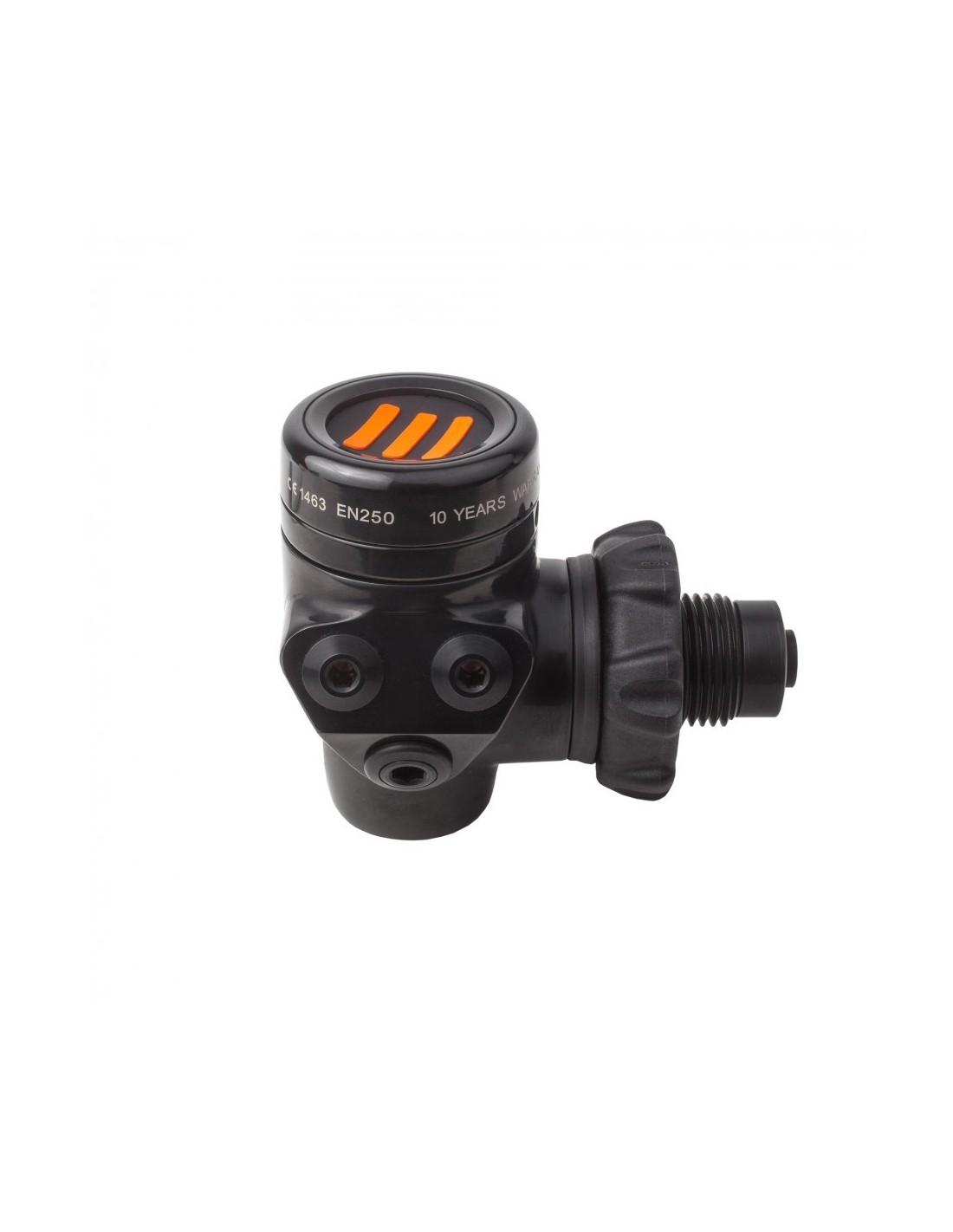

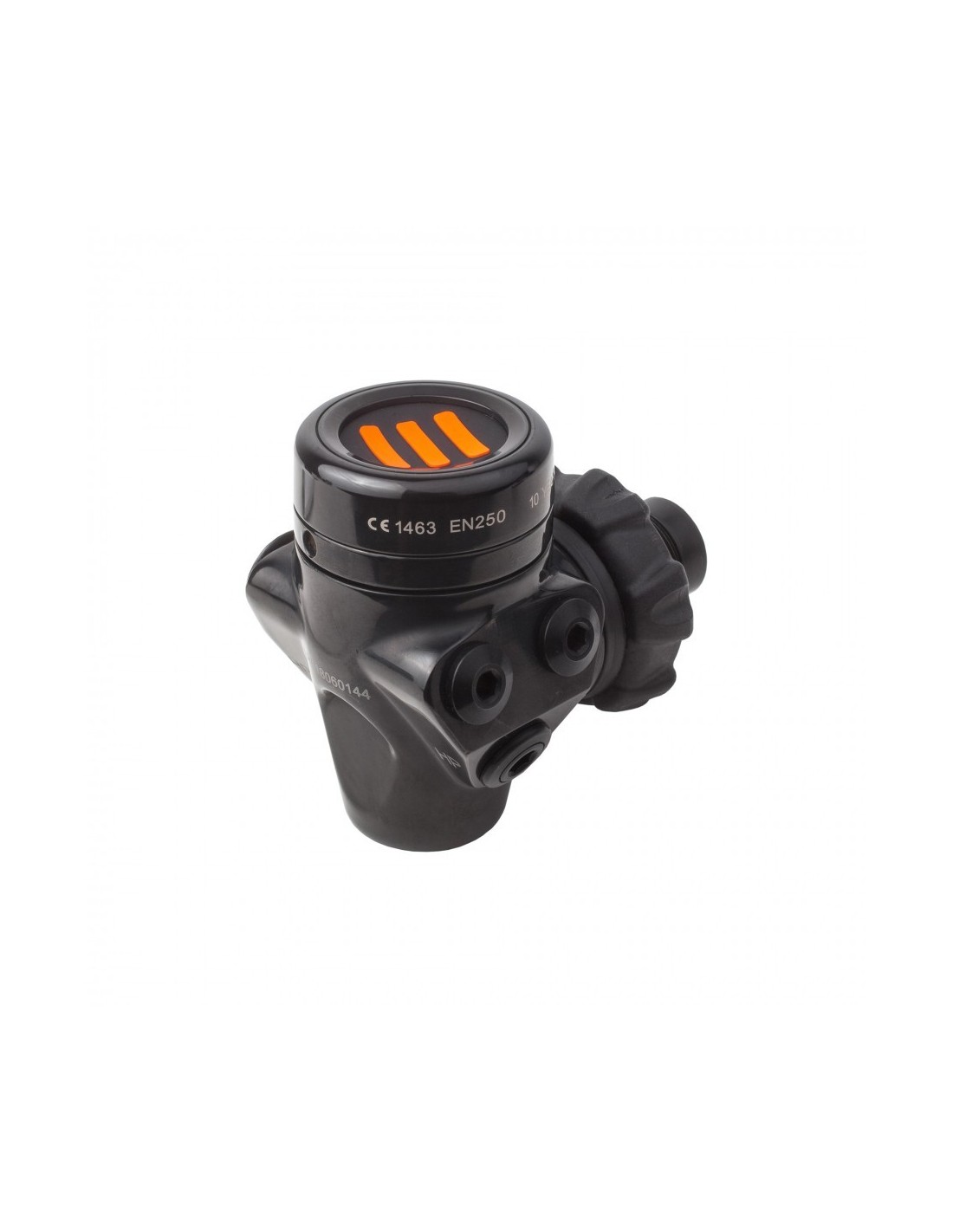

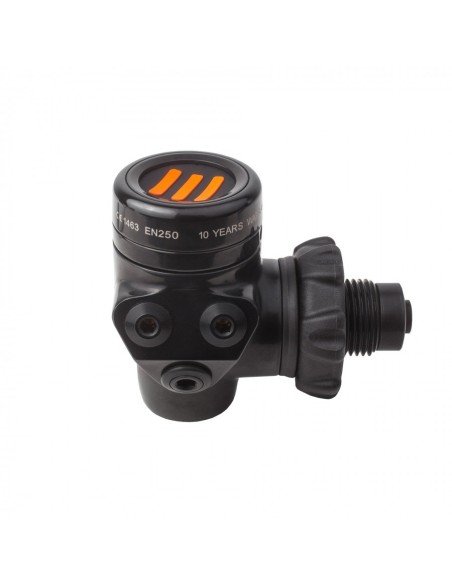

Stage 1:
Regulator type - balanced diaphragm
"V" type hose arrangement
Additional dry chamber "COLD KIT" for use in cold water.
Number of outputs: 4 low pressure (LP) ports, 2 high pressure (HP) ports.
Maximum working pressure: 300 bar.
Maximum flow at 20 MPa: 3823 l/min.
Intermediate pressure: 9.0 bar.
Breathing resistance: 0.983–1.004 J/
Can be used with Nitrox up to 40%
Conforms to EN 250A; CE1463
Weight: 822 g.

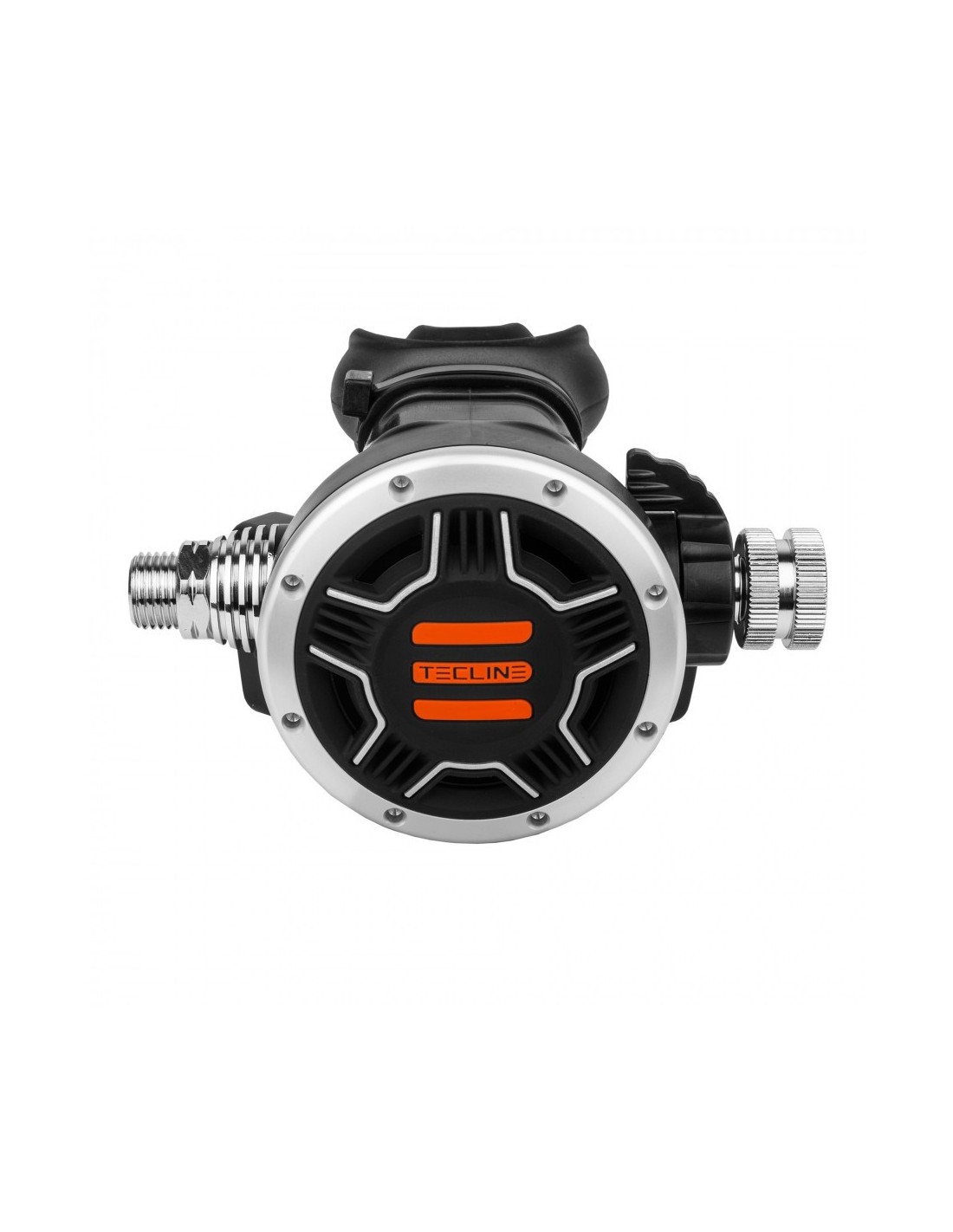

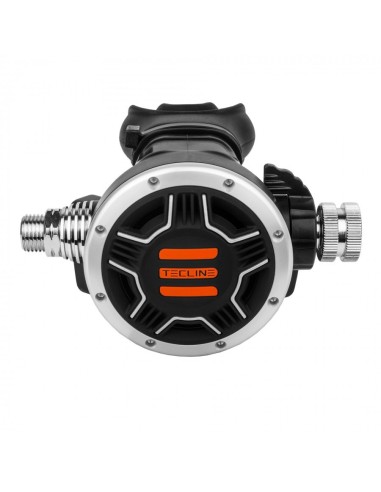

Stage 2:
Balanced.
Venturi effect adjustment.
Inspiratory resistance adjustment. Respiratory resistance: 0.983–1.004 J/l.
Flow rate at 20 MPa: 850 l/min.
Material: Polyamide.
Heat exchanger that protects against freezing in cold water.
Can be used with up to 40% nitrox.
Meets EN 250A requirements.
Weight: 250 g.

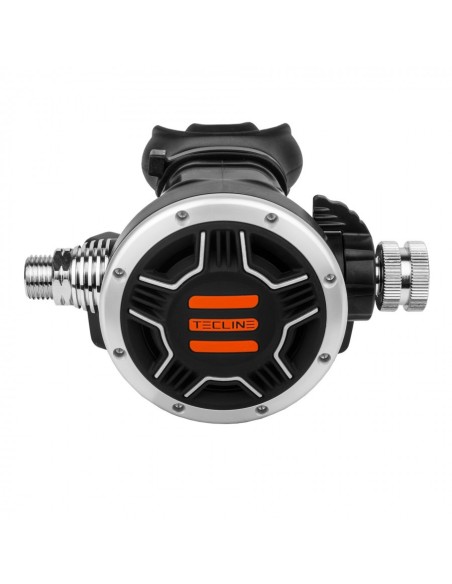

TecLine "TEC1" Octopus – EN250A
Innovative design = best breathing control.
Minimalist design = reliability in all conditions, easy maintenance.
Reliable materials = resistance to temperature, mechanical and chemical influences.
Certified to EN250:2014.
Balanced
Venturi effect adjustment.
Inspiratory resistance adjustment.
Stainless steel outer ring.
Additional heat exchanger for cold water diving. Maximum flow at 20 MPa: 850 l/min.
Respiratory resistance: 0.983–1.004 J/l.
Material: polyamide (resistant to large temperature fluctuations).
Suitable for use with up to 40% nitrox.
Weight: 250 g.
