TecLine R5 TEC2 series of diaphragm regulators has proven itself in practice and in tests. Test results show that these regulators fully comply with the requirements of EN 250A; CE1463, which meet the cold water standards. The dry chamber thermal protection "Ice" is separated from the main diaphragm and the optional "Cold Kit" diaphragm, making the regulator particularly resistant to the coldest water conditions. These regulators are convenient to use with both standard BCDs and wing-type buoyancy compensators. This design allows TecLine R5 TEC2 to be used with one or two cylinders. The second stage of TecLine R5 TEC2 regulator has both breathing resistance and Venturi flow control. The heat exchanger improves thermal regulation in cold water, reducing the risk of icing. The breathing resistance of approximately 1 J/l reduces breathing effort and helps reduce gas consumption. The second stage of the TEC2 has both resistance and Venturi flow control. The unique features of this regulator compared to the TEC1 include a more frost-resistant housing, Teflon-coated internal metal parts to prevent ice build-up, a larger heat exchanger and a direct-flow gas supply system. This demonstrates the high level of performance you expect from a world-class regulator. TecLine R5 TEC2 regulators are rigorously tested in extreme environmental conditions, from ice diving to cave diving in muddy environments and the tropics. After assembly and adjustment, all regulators are inspected by two independent technical experts to ensure compliance with standards and quality. This regulator model is suitable for use with Nitrox mixtures with an oxygen content of up to 40%. The manufacturer provides a 10-year warranty to the original owner, ensuring that the regulator is free from defects in workmanship and materials. This warranty is valid provided that timely maintenance is carried out at authorized centers at least once a year or every 50 dives with the regulator.
Overall, TecLine R5 TEC2 regulator offers high-quality performance and meets the needs of even the most demanding divers.

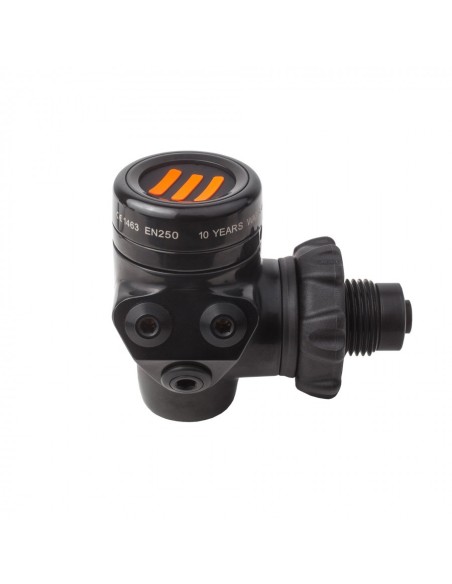

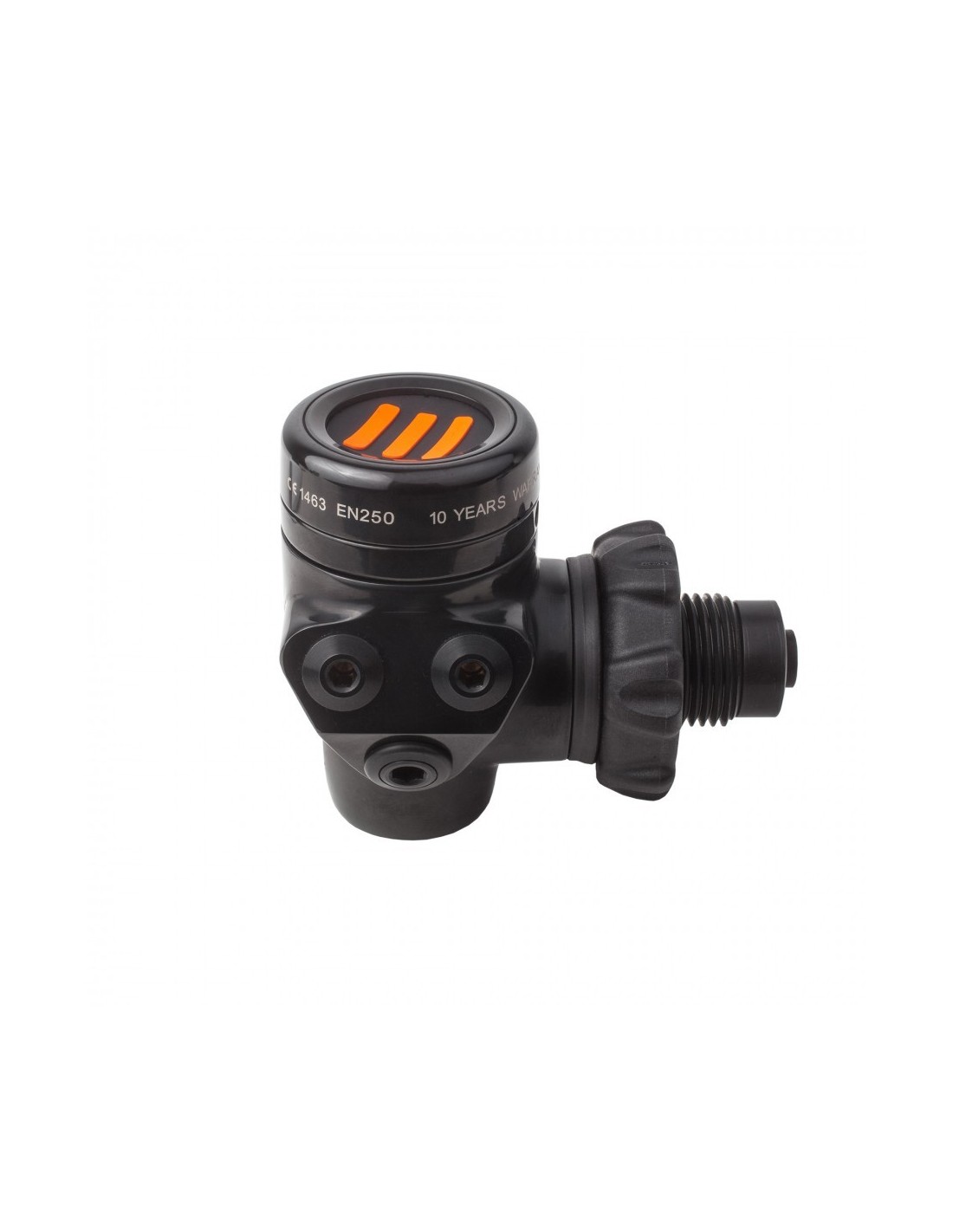

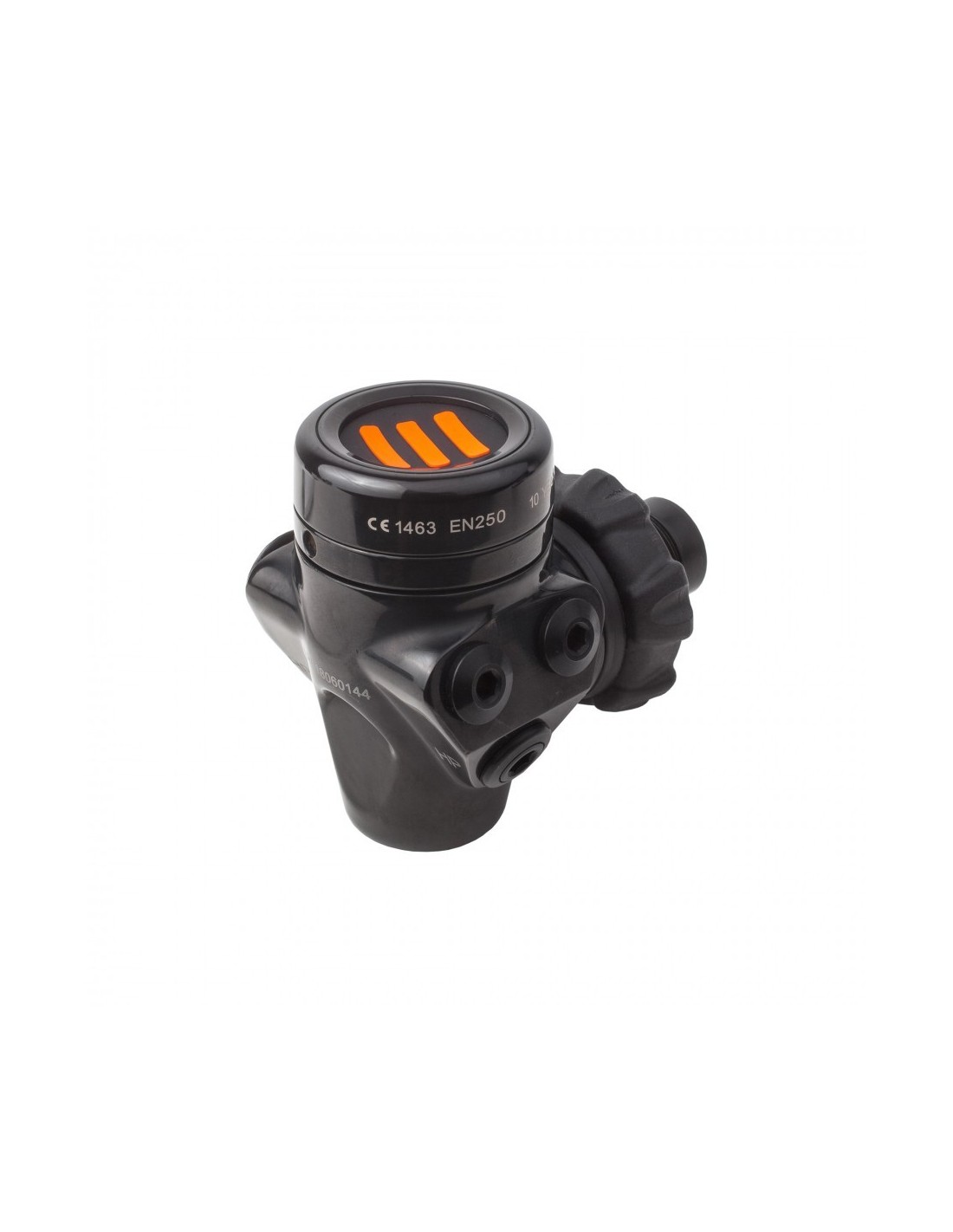

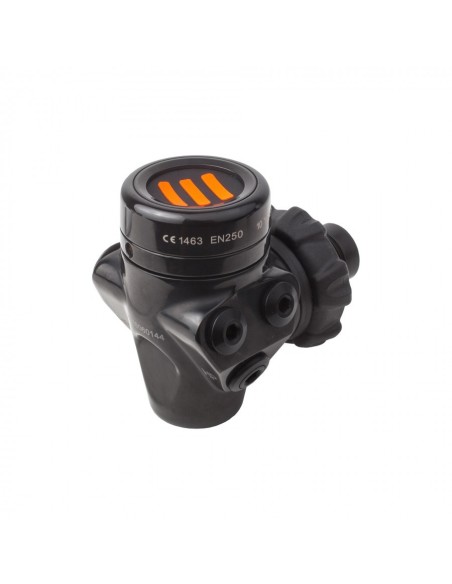

First stage:
Balanced diaphragm
"V" shaped hose arrangement
Additional dry chamber "COLD KIT" for use in cold water.
number: 4 low pressure (LP) ports, 2 high pressure (HP) ports.
Maximum working pressure: 300 bar.
Maximum flow at 20 MPa: 3823 l/min.
Intermediate pressure: 9.0 bar.
Breathing resistance: 0.983–1.004 J/
Can be used with up to 40% nitrox
Meets EN 250A requirements; - CE1463
Weight: 822 g

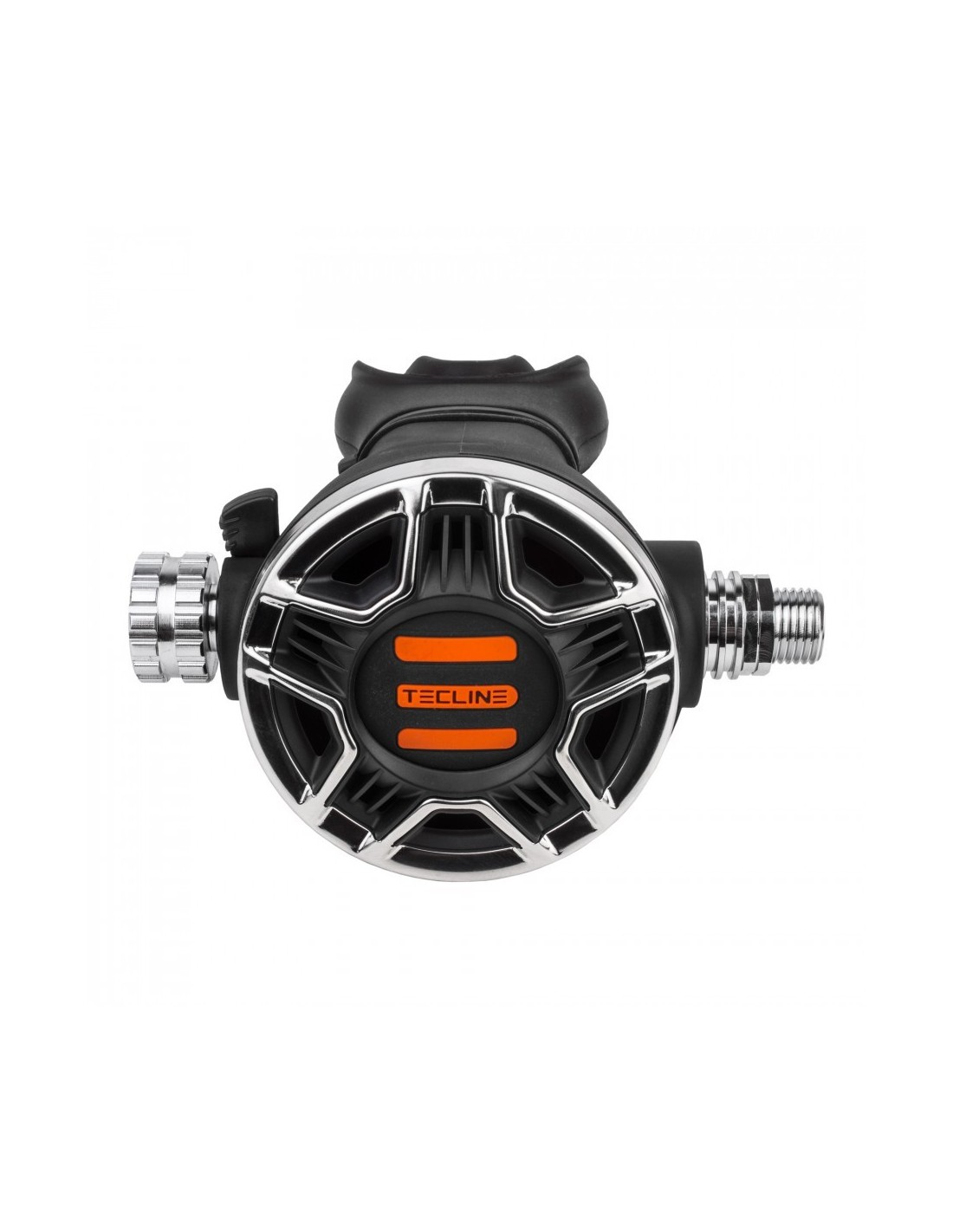

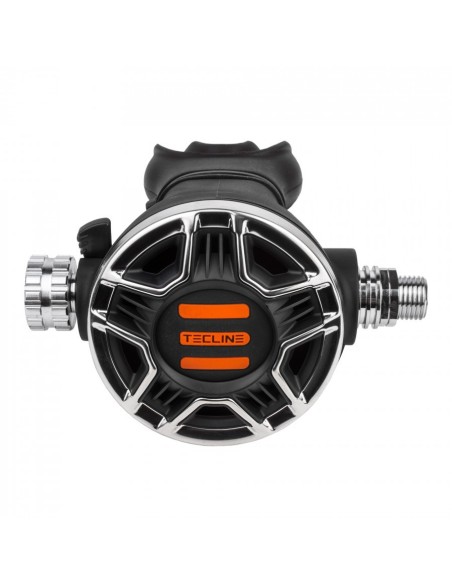

Second stage:
Balanced
Venturi effect adjustment.
Breathing resistance adjustment knob.
DFS (Direct Flow System): Direct flow breathing air supply system.
The housing is made of extremely durable plastic, highly resistant to extremely low temperatures. It does not become brittle even in extreme cold and retains its operational properties.
The outer ring is made of stainless steel.
The metal parts inside are coated with Teflon, so ice does not accumulate.
The enlarged radiator, which is largely recessed into the housing, prevents freezing even in extreme cold.
Ergonomic mouthpiece. Weight: 260 g
TecLine "TEC2" octopus:
Innovative design = best breathing control.
Minimalist design = reliability in all conditions, easy maintenance.
Durable materials = resistance to temperature, mechanical stress and chemical attack.
Certified to EN250A:2014.
Balanced
Venturi effect adjustment.
Inspiratory resistance adjustment.
DFS – Direct Stream System.
Stainless steel outer ring.
All metal parts are coated with Teflon.
Additional heat exchanger for cold water diving.
Maximum flow at 20 MPa: 850 l/min.
Respiratory resistance: 0.983–1.004 J/l.
Material: polyamide (resistant to large temperature fluctuations).
Suitable for use with up to 40% nitrox. LP 90 cm Proflex hose.
Weight: 260 g.
