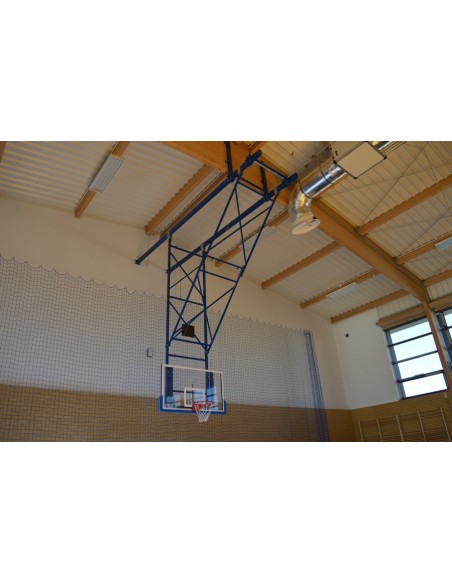

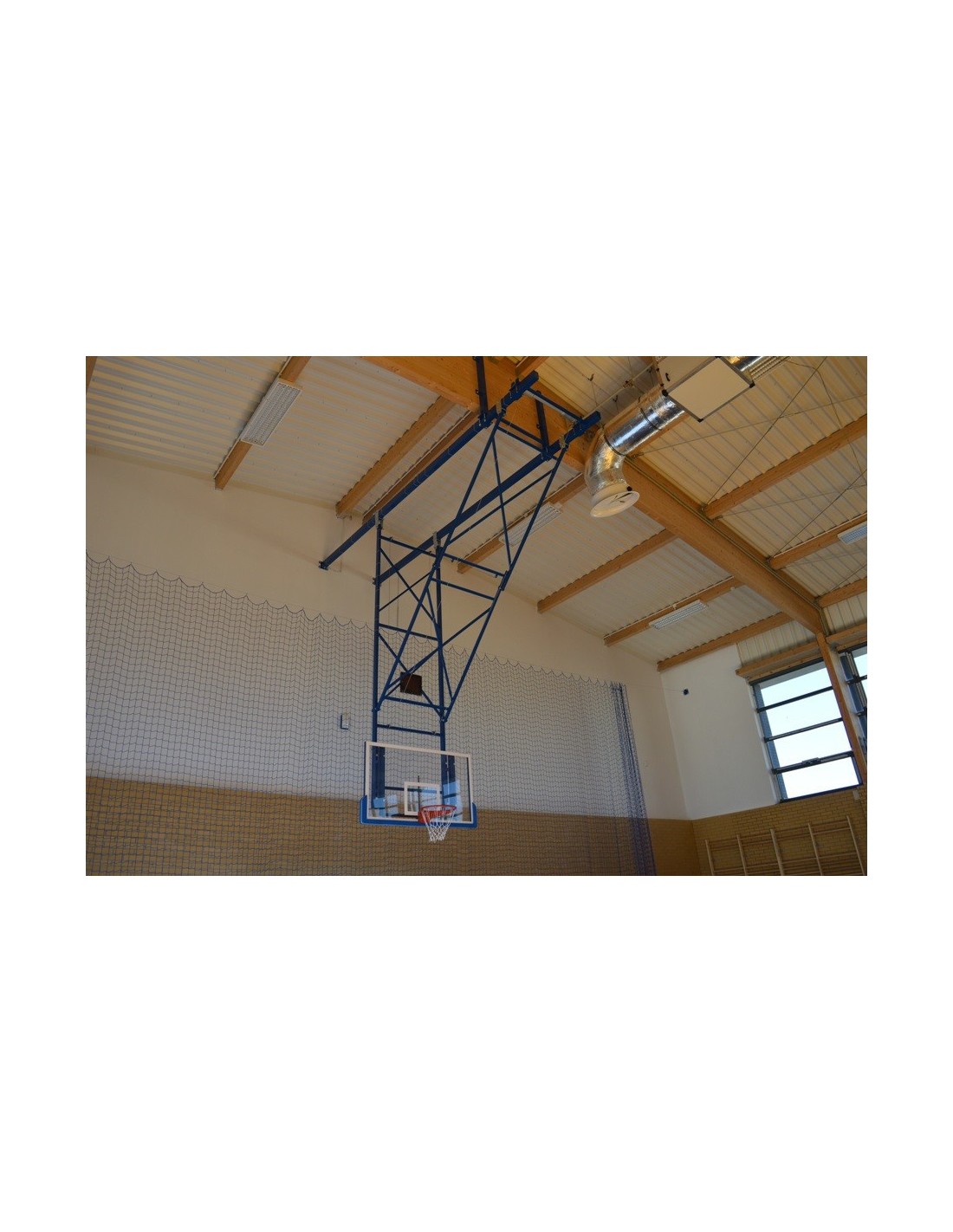

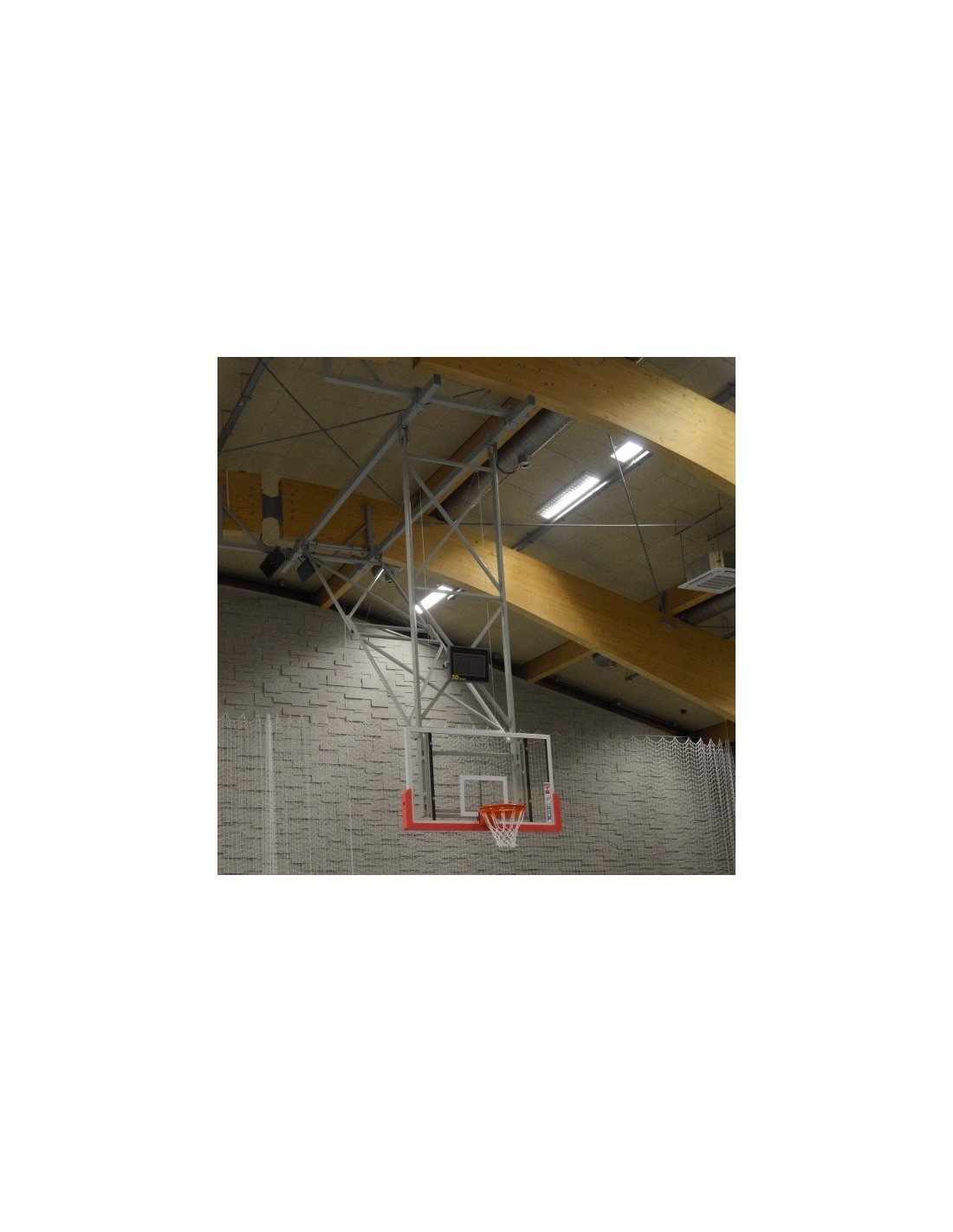

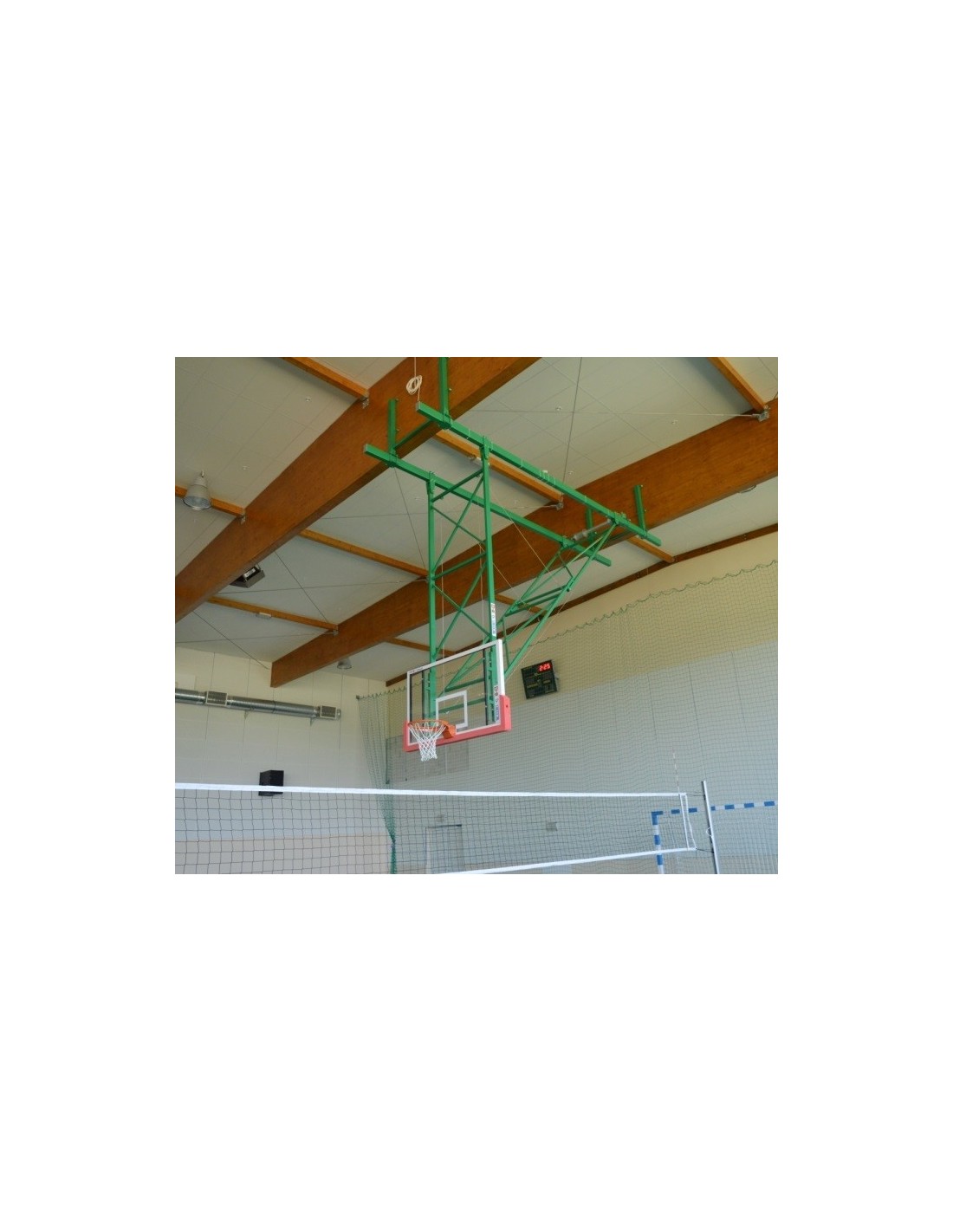

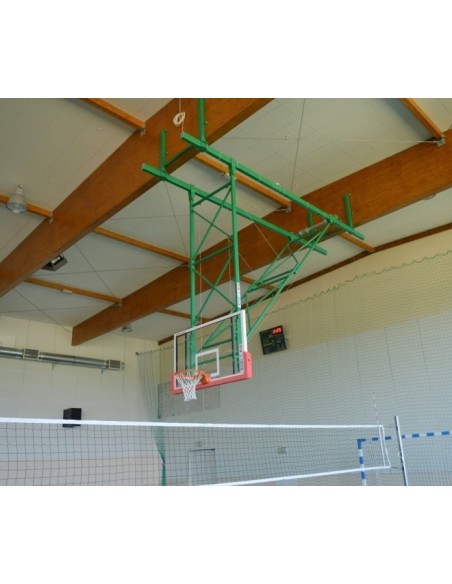

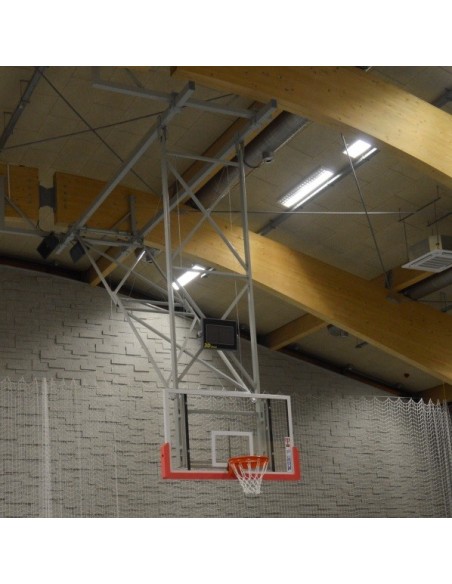

The basket structure is mounted to the main roof structures. It is folded forward or backward with the help of an electric motor. The structure is made of steel profile. It is connected in the folding areas so that it remains stable under heavy loads. The structures are always adapted to the individual project and ceiling geometry.

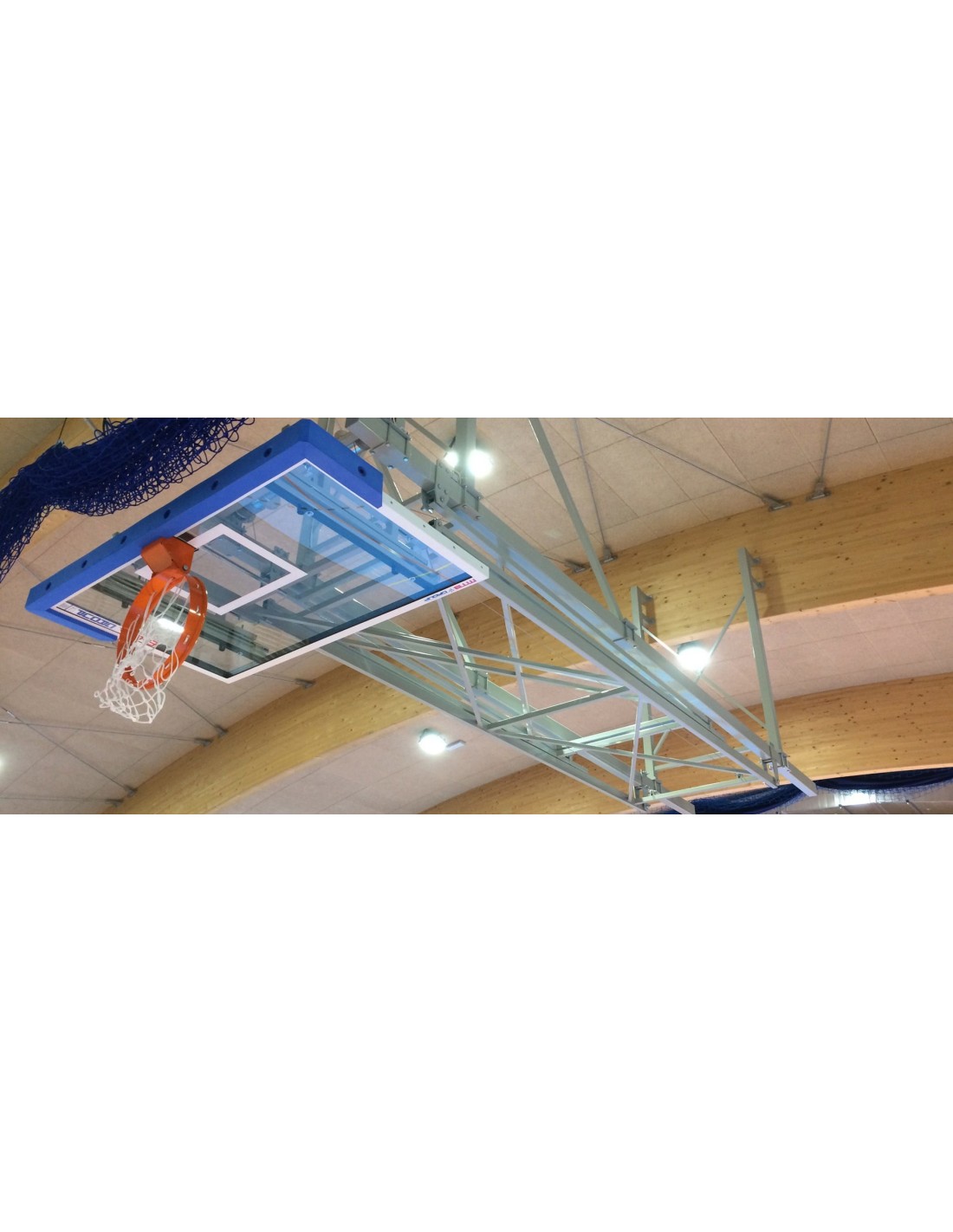

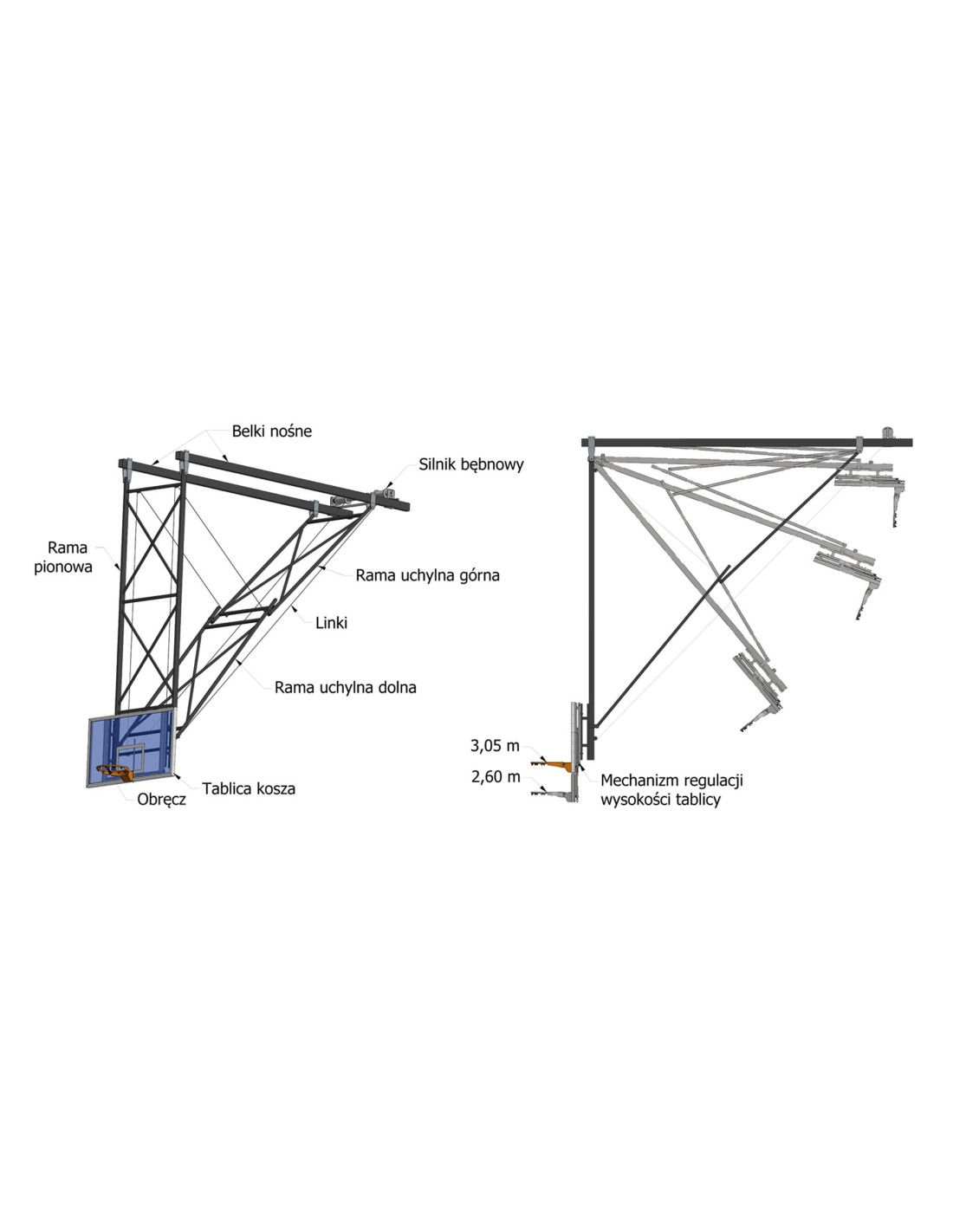

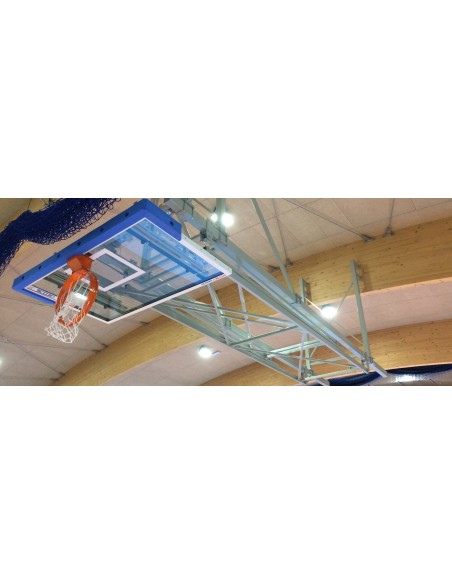

The folding of the structure is carried out by a 450W Somfy cylindrical motor winding a steel cable on an axis, which is controlled either by a two-position button or by a remote control. It is possible to synchronize all the electrical mechanisms of the sports equipment in the hall for different configurations. When the structure is folded into the usable state, the height of the arch is 305 cm. The height of the board can be adjusted from 260 cm to 305 cm.
The main supporting structure beams are made of 120x80x3 mm steel profile, the vertical frame is made of 80x40x2 mm steel profile, the crossbars are made of 30x30x2 mm steel profile. The rear folding structure is made of 40x40x2 mm with 30x30x2 mm crossbars. All elements are made of S235 steel painted with a mitel method. The connecting parts between the main beams and the frame are made of 8 mm thick plates. The thickness of the steel cables is 4 mm. Somfy motor LT60 Taurus, shaft length 705 mm. Power supply 230V/50Hz. Torque power 120Nm, speed 12 revolutions per minute.
