ORCATORCH FlexDive is a new generation modular diving lighting system that allows you to choose a different lamp design on a single platform according to the type of diving. The system is designed for technical diving, cave and shipwreck diving, as well as underwater photography and filming .
FlexDive is unique in that the lamp head, battery and cable system are separate components . This makes it easy to change the battery or choose a different configuration according to the needs of a specific dive.

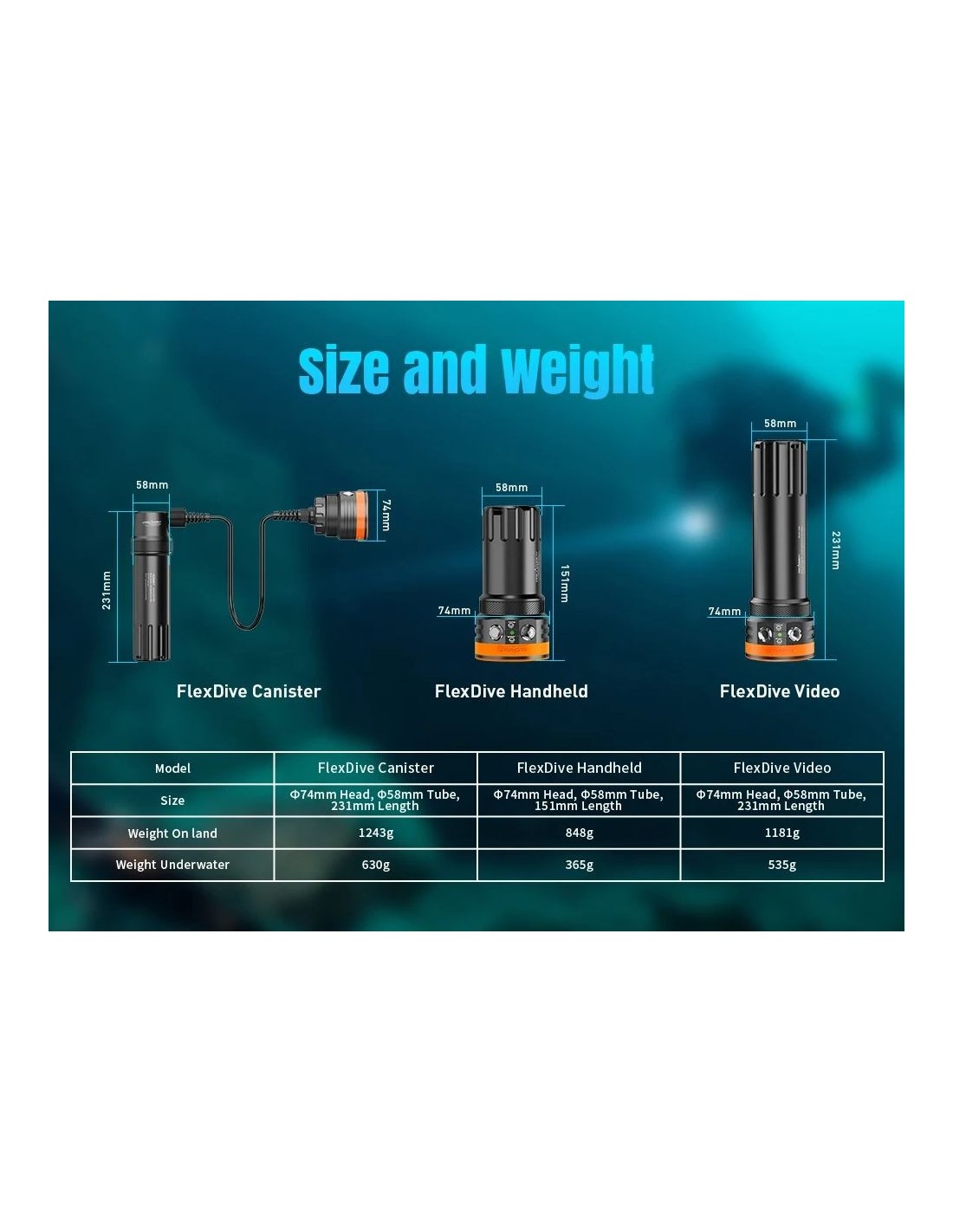

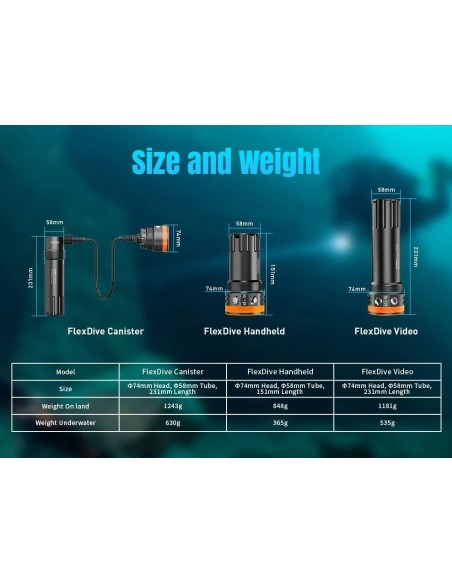

There are three versions to choose from:
• FlexDive Handheld – a more compact handheld version.
• FlexDive Canister – a version for technical diving with a separate battery canister.
• FlexDive Video – a wide-angle version for underwater photography and videography.
Battery: B 49, 49 Wh / 14,8 V / 3310 mAh
B 98.

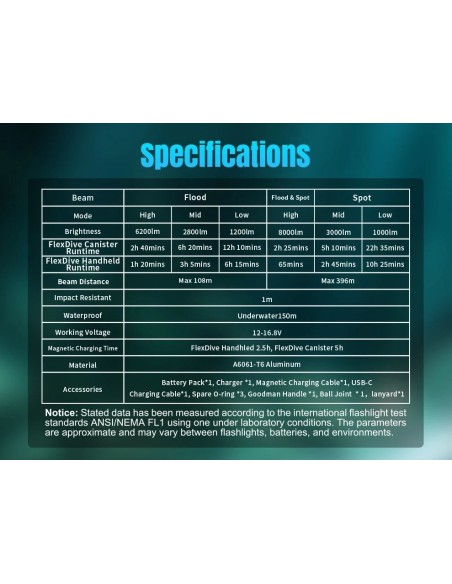

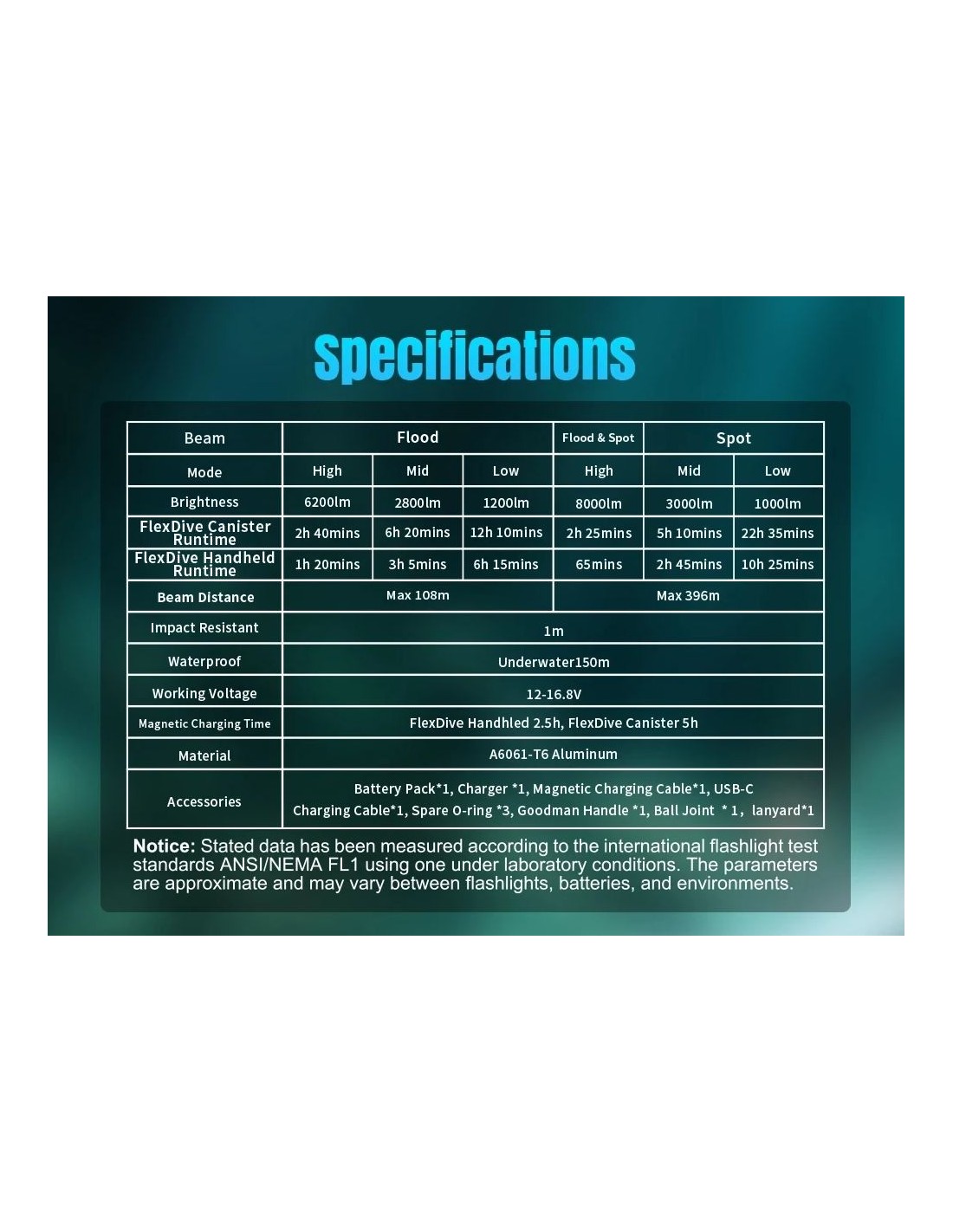

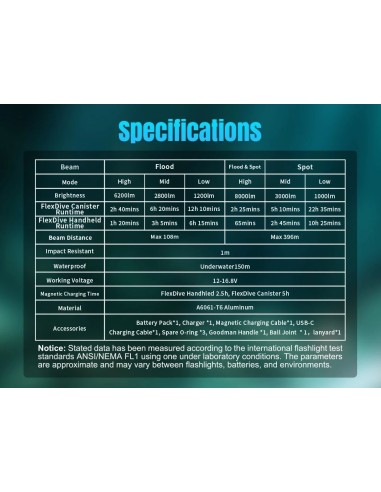

| Mode | Luminous flux | Operating time |
|---|---|---|
| Flood LOW | 1200 lumens | 6 hours 15 minutes |
| Flood MID | 2800 lumens | 3 hours 5 minutes |
| Flood HIGH | 6200 lumens | 1 hour 20 minutes |
| Spot LOW | 1000 lumens | 10 25 |
| Spot MID | 3000 lumens | 2 hours 45 minutes |
| Flood + Spot HIGH | 8000 lumens | 65 minutes |
Battery: B 98, 98 Wh / 14,8 V / 6620 mAh
| Mode | Luminous flux | Operating time |
|---|---|---|
| Flood LOW | 1200 lumens | 12 hours 10 minutes |
| Flood MID | 2800 lumens | 6 hours 20 minutes |
| Flood HIGH | 6200 lumens | 2 hours 40 minutes |
| Spot LOW | 1000 lumens | 22 35 |
| Spot MID | 3000 lumens | 5 hours 10 minutes |
| Flood + Spot HIGH | 8000 lumens | 2 hours 25 minutes |
Battery: B 98, 98 Wh / 14,8 V / 6620 mAh .
Since the Video version uses the same FlexDive light head and B 98 battery, its stated runtimes correspond to the B 98 configuration parameters :
| Mode | Luminous flux | Operating time |
|---|---|---|
| Flood LOW | 1200 lumens | 12 hours 10 minutes |
| Flood MID | 2800 lumens | 6 hours 20 minutes |
| Flood HIGH | 6200 lumens | 2 hours 40 minutes |
| Spot LOW | 1000 lumens | 22 35 |
| Spot MID | 3000 lumens | 5 hours 10 minutes |
| Flood + Spot HIGH | 8000 lumens | 2 hours 25 minutes |

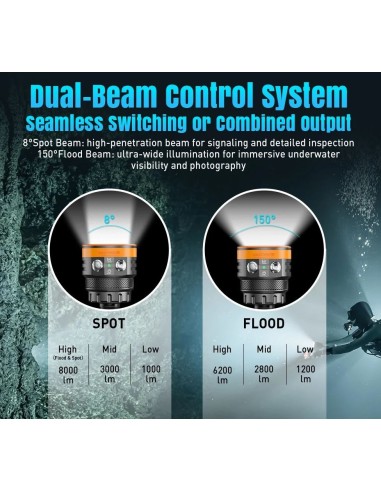

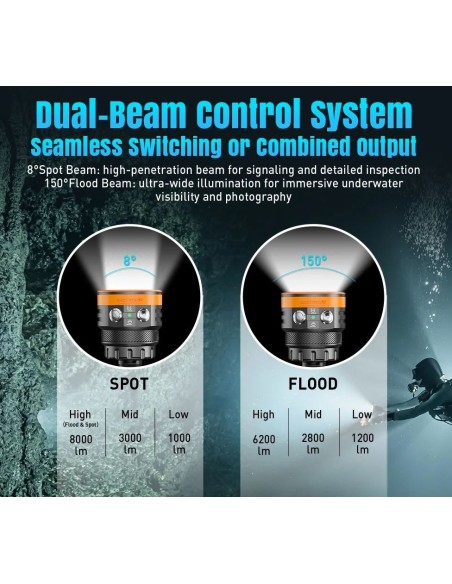

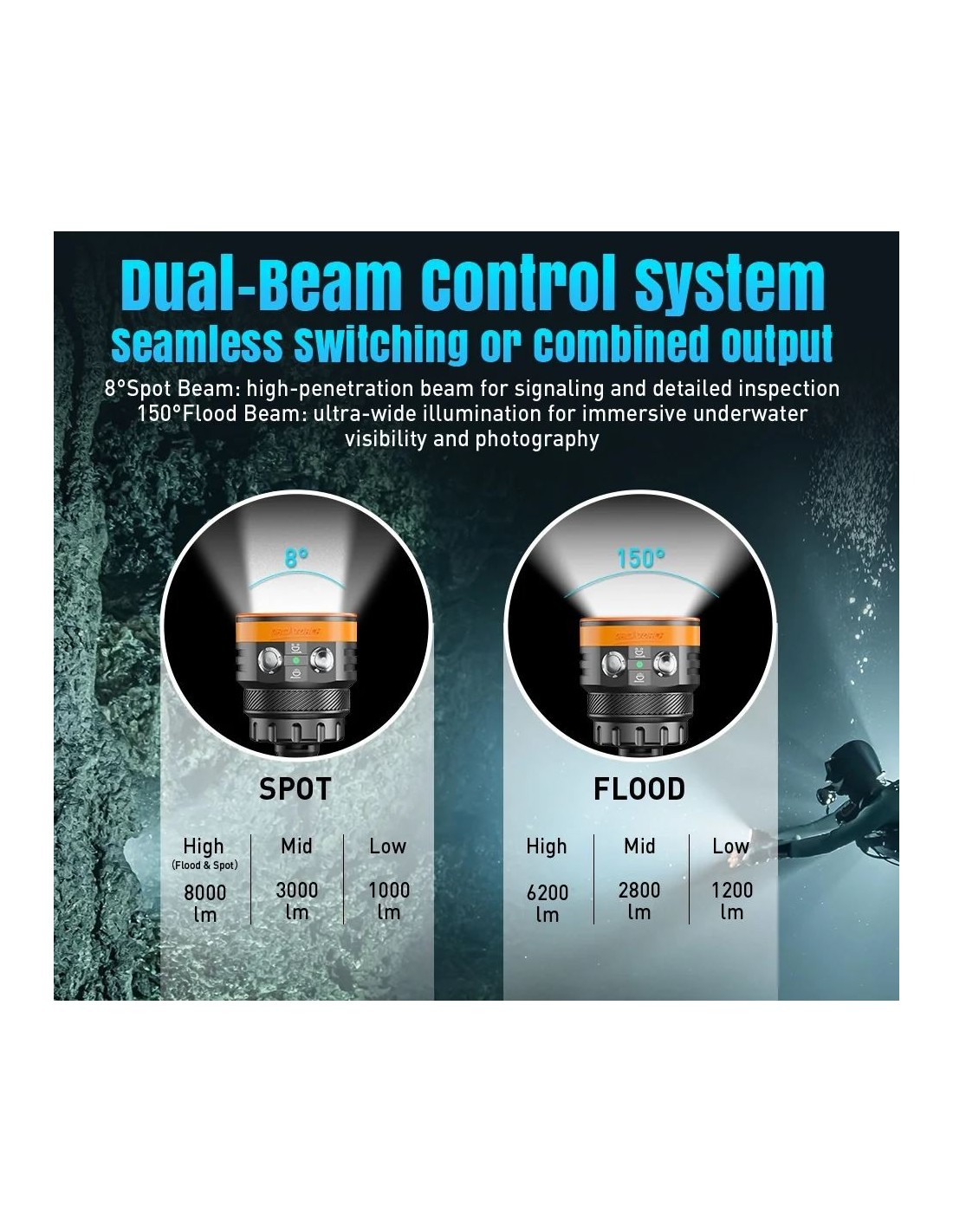

The FlexDive system allows the use of two different types of lighting:
8 ° Spot – a narrow, concentrated beam designed for navigation, signaling, cave diving, wreck diving, and illuminating specific objects.
150 ° Flood – an ultra-wide beam that evenly illuminates a large area. It is especially suitable for underwater photography and filming.
Both beams can be used separately or together. When both beams are turned on at maximum mode, a total luminous flux of up to 8000 lm is achieved.
The FlexDive system can use two batteries with different capacities:
B 49 – 49 Wh
B 98 – 98 Wh
Both batteries can also be used as a Power Bank .
The integrated Constant Output technology maintains a constant light intensity. The lamp does not switch to a dimmer light as the battery runs low, ensuring a stable light output during diving.
FlexDive construction is adapted to difficult diving conditions:

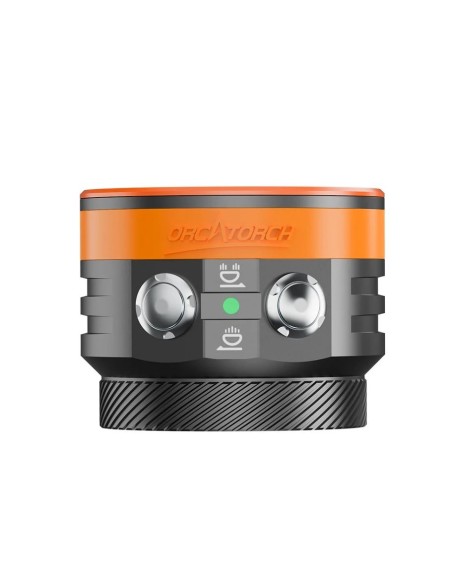

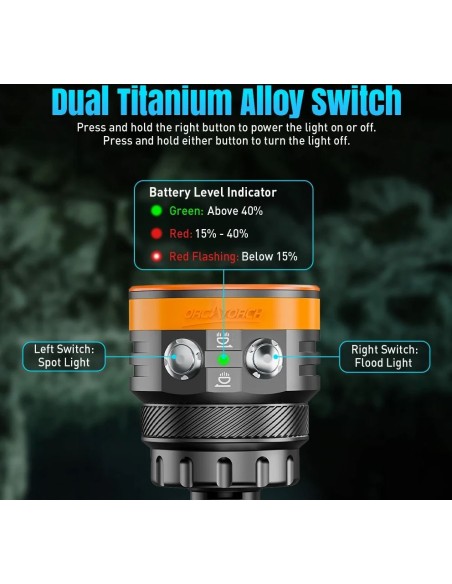

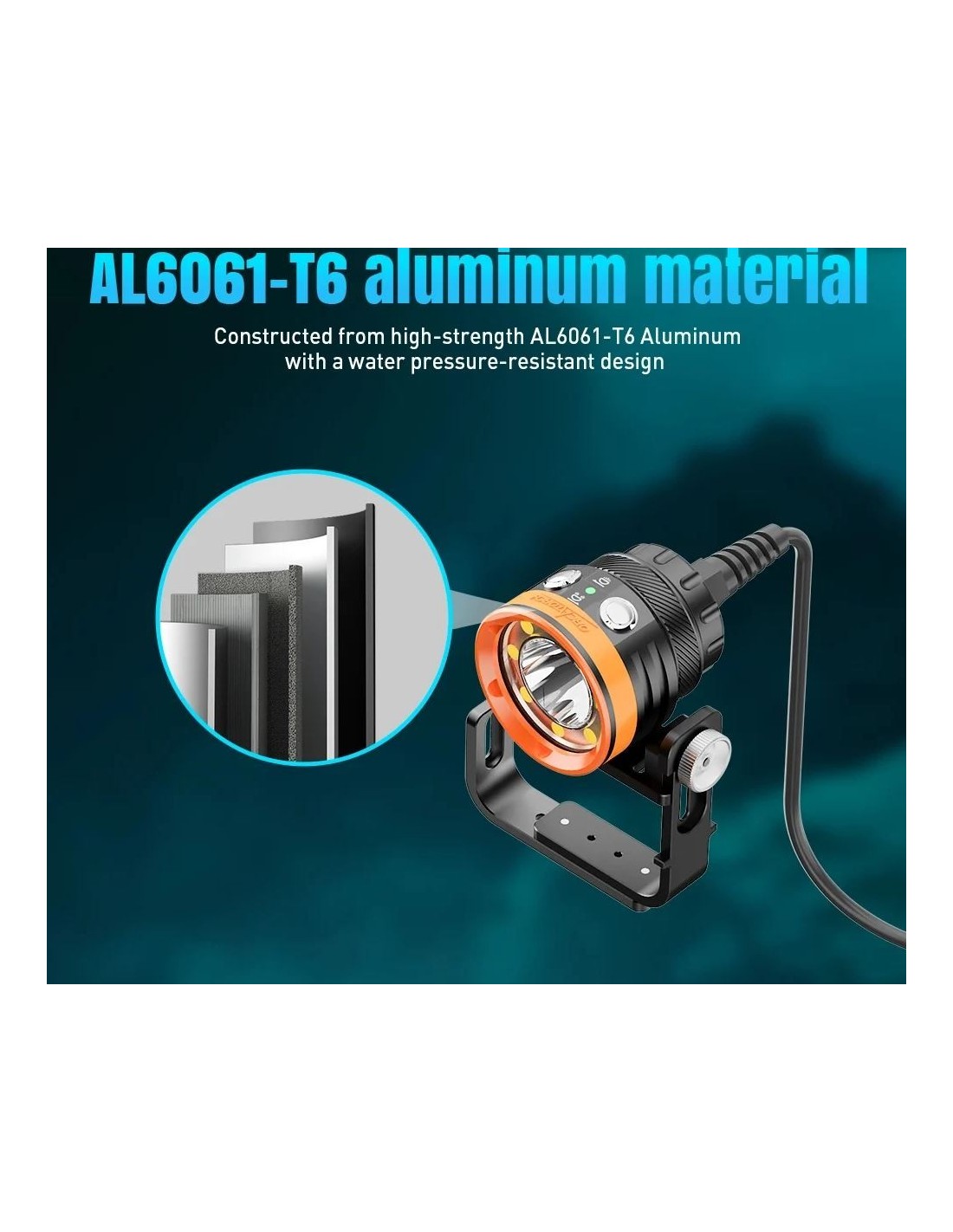

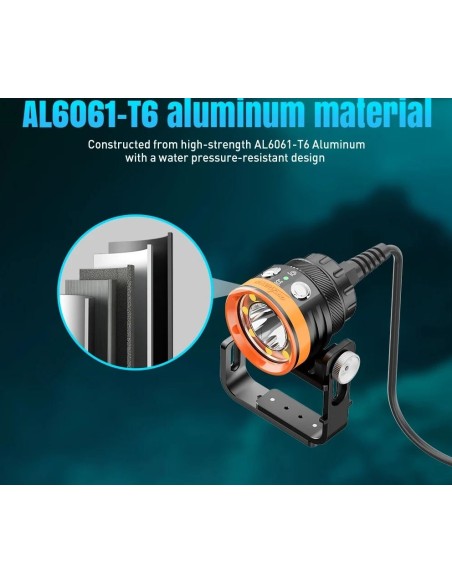

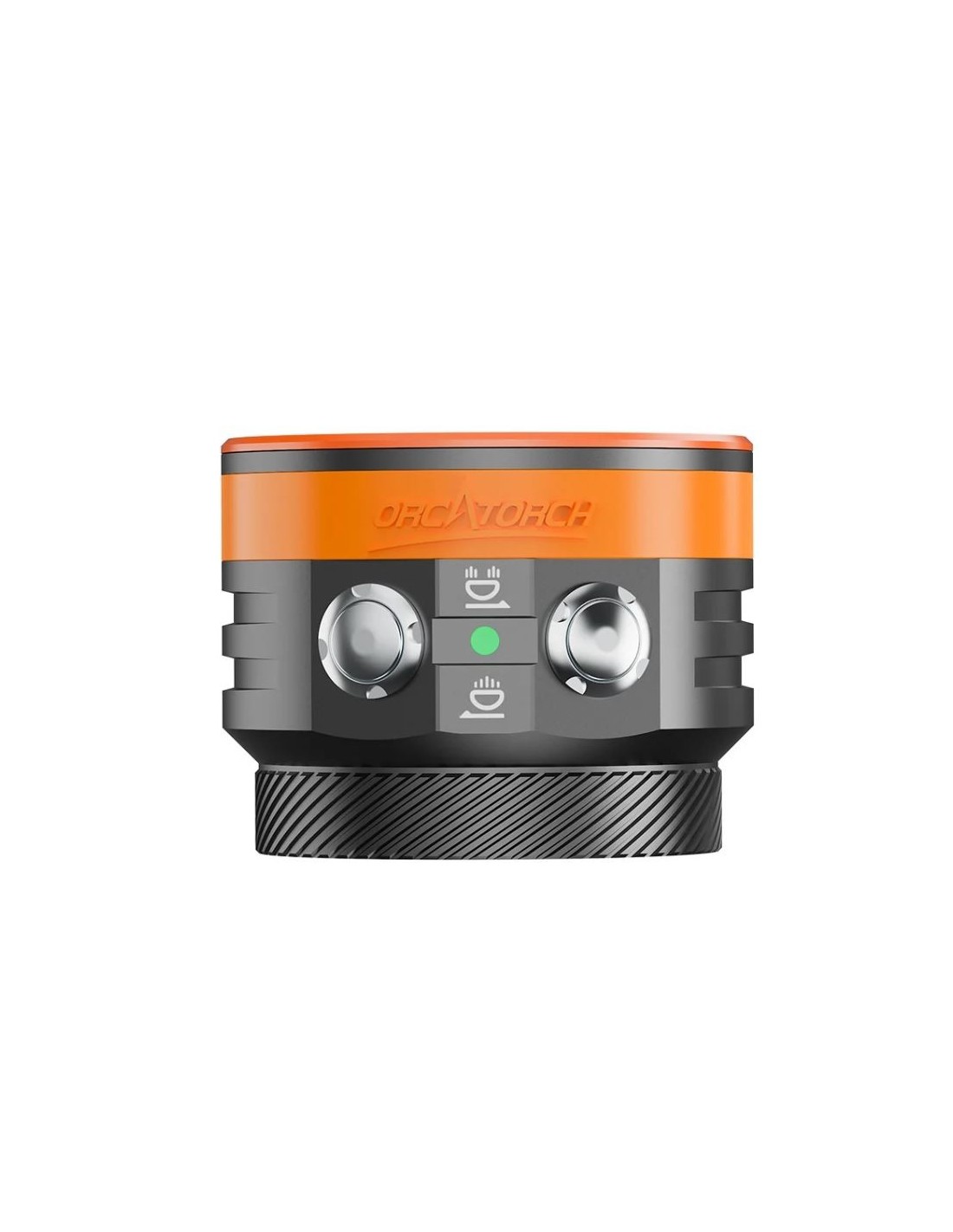

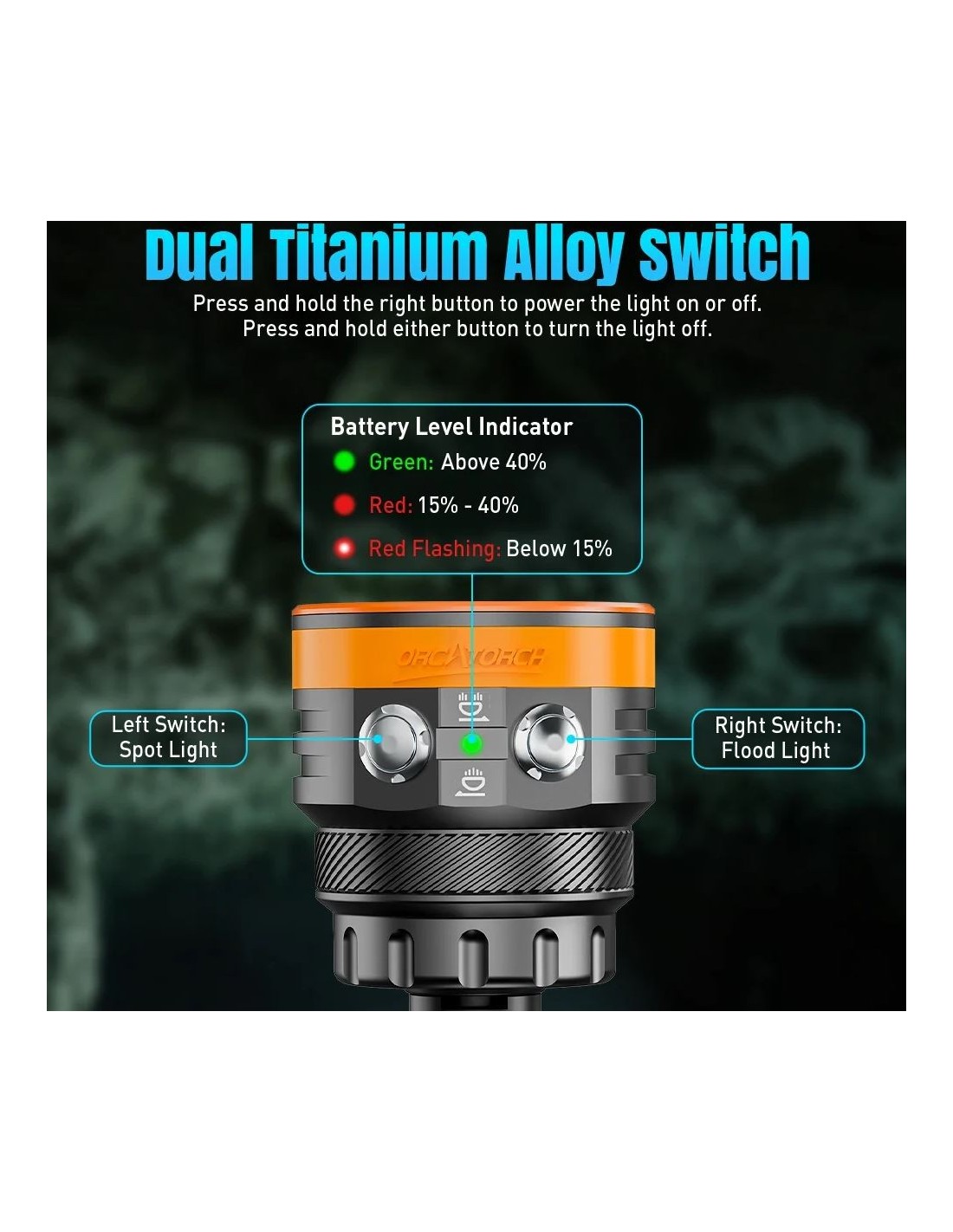

The lamp body is made of AL 6061- T 6 aluminum , titanium alloy control buttons are used, integrated overheating protection is provided, and the design is suitable for diving up to 150 m depth .
✓ Modular system
✓ 3 different configurations
✓ Up to 8000 lm
✓ 8 ° Spot + 150 ° Flood
✓ Beams can be used separately or together
✓ Interchangeable B 49 and B 98 batteries

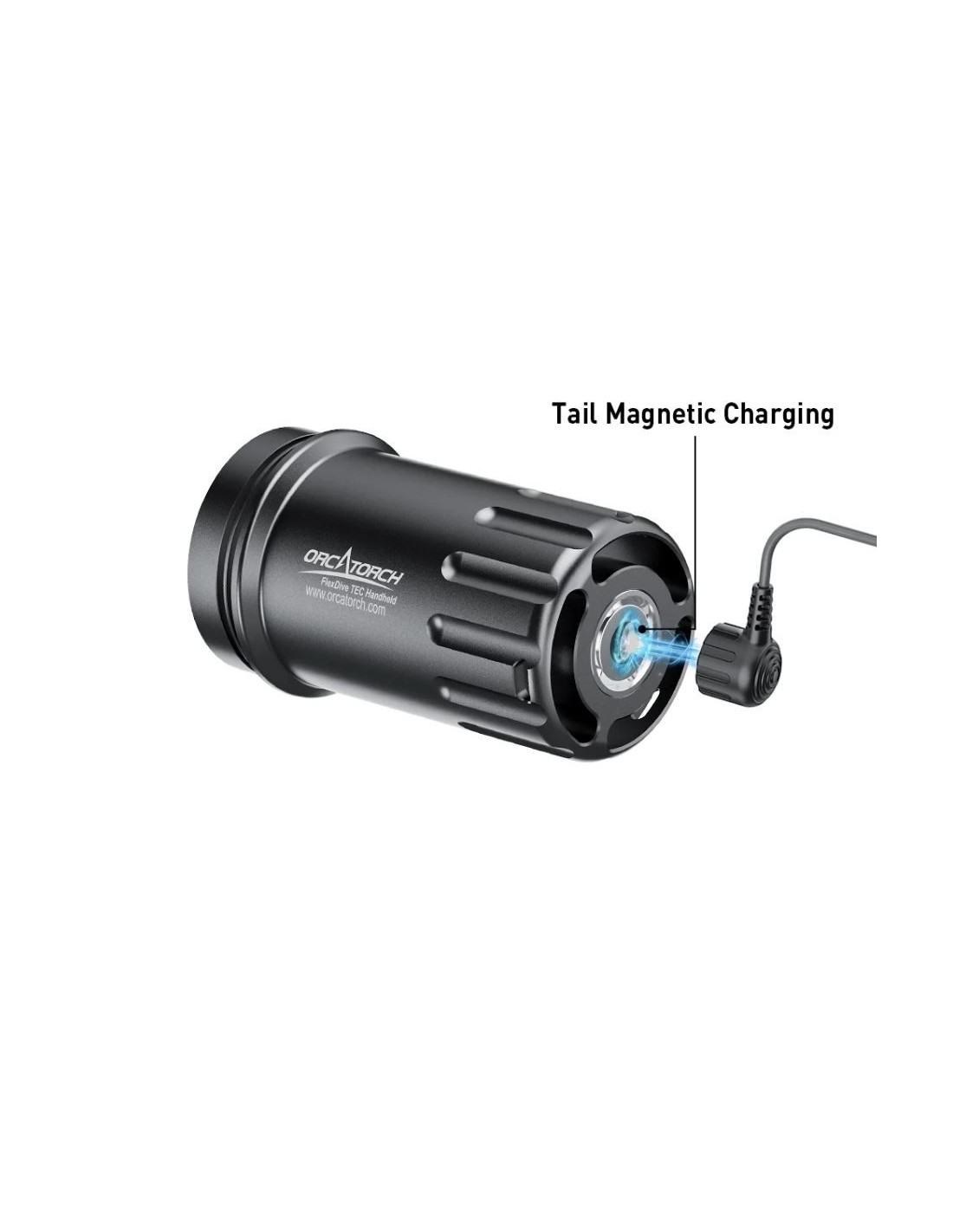

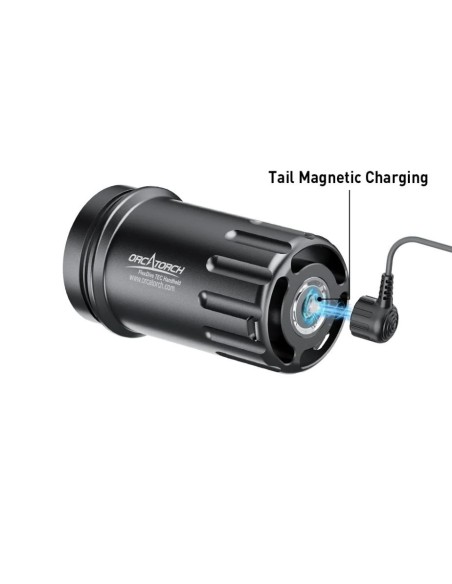

✓ USB-C and magnetic charging
✓ Power Bank function
✓ Constant light intensity
✓ Up to 150 m depth
✓ Suitable for technical, cave and wreck diving
ORCATORCH FlexDive – one modular system that adapts to different diving needs.

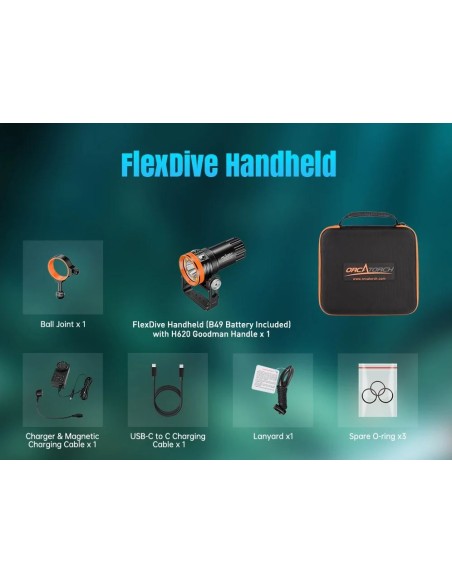

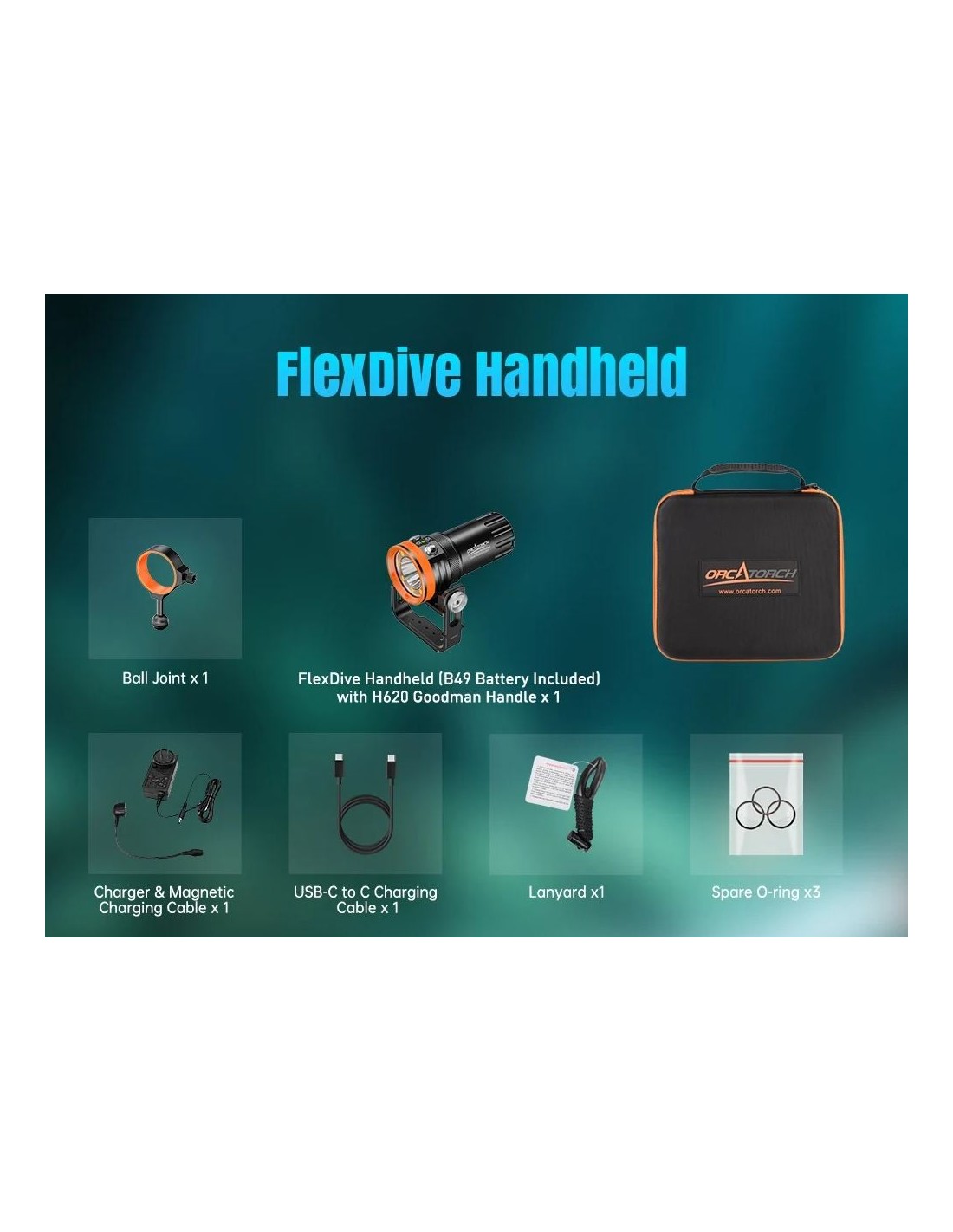

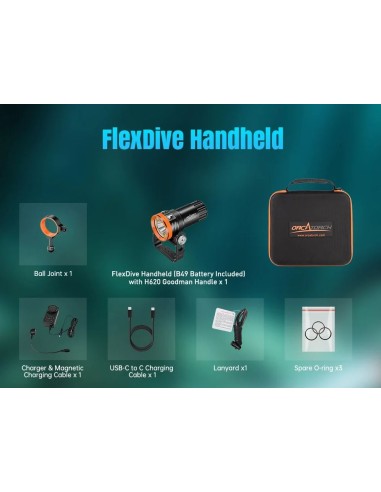

FlexDive Handheld is a compact version of the modular FlexDive system, designed for divers who need a powerful and versatile lamp without a separate canister.
It is a good choice for recreational, night, technical and wreck diving , when it is important to have a light source that is conveniently controlled in your hand.
FlexDive Handheld is a versatile choice for the diver who wants one lamp for both everyday diving and more challenging diving conditions.
FlexDive Canister – a technical diving version of the FlexDive with a separate battery canister. This design allows the battery to be conveniently attached to the diver's equipment, and the lamp head to be used with a handle.
It is an especially good choice for technical diving, cave diving and shipwreck diving , where longer runtime and convenient lamp control are required.
The separate battery allows the lamp head to be kept more compact and conveniently operated with the Goodman-style handle. The larger capacity B 98 – 98 Wh battery is especially suitable for longer technical dives.
FlexDive Canister is the choice for divers who value longer operating time, convenient handling, and a design adapted to technical diving.
FlexDive Video – a version of FlexDive specifically designed for underwater photography and videography. Its main advantage is an extremely wide 150 ° light beam , allowing for uniform illumination of a large field of view.
The lamp is especially suitable for underwater photographers, videographers, diving instructors and professional underwater filming .
The wide 150 ° beam allows you to illuminate a large subject or an entire filming scene, reducing the difference between bright and dark areas.
FlexDive Video is perfect for filming the underwater world, shipwrecks, caves, sea animals, and other large objects.
FlexDive Video – when wide, even and powerful underwater lighting is key.
