Cooking stand - with 3 legs, GR-823

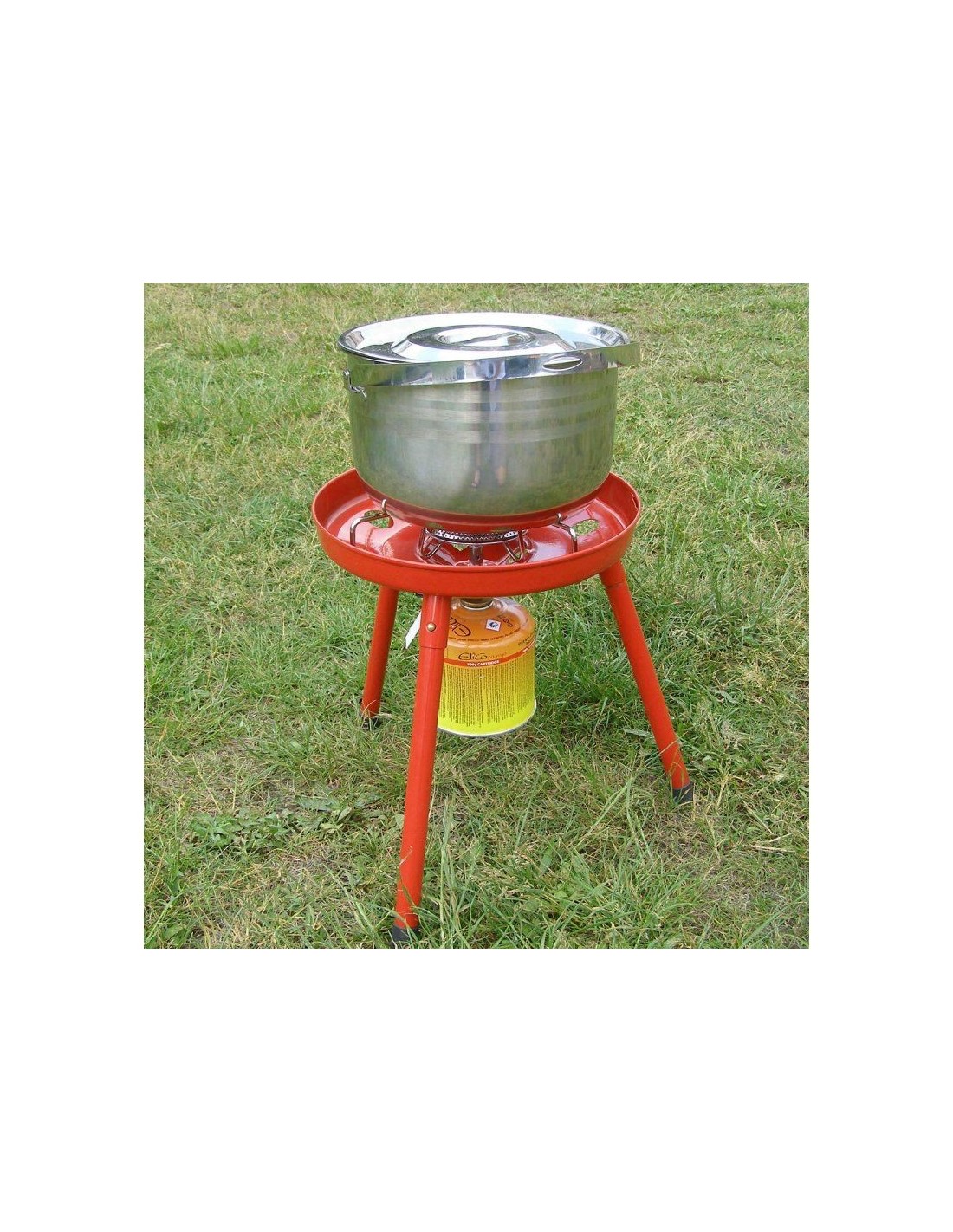

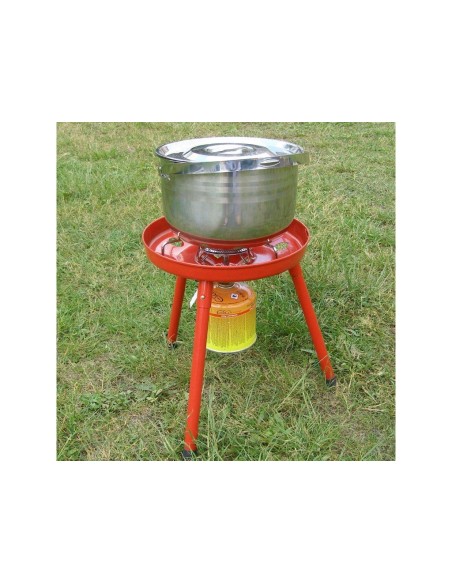

Cook, bake, grill... all in one versatile gas-powered travel stove. The stove is especially useful when traveling by car, as it is small, compact and lightweight, so it fits in any car and is easy to carry. Thanks to the large burner (11 cm diameter), the stove has high performance and can comfortably cook for the whole family. The large and deep frying pan (39.5 cm) and the flat grill plate (33.5 cm) provide plenty of space for a variety of meats and vegetables. The frying pan and grill plate are enameled. The stove can also use pots up to 45 cm in diameter.

The stove is also ideal for grilling on the balcony or terrace at home. Unlike a charcoal grill, it does not smoke and there is no risk of hot sparks flying. There is also no need to clean much after each barbecue. It is small and compact, but very stable.

The package includes a stove, 3 legs, a 33.5 cm diameter grill plate for the plancha grill and a large 39.5 cm diameter frying pan. Both are enameled.

Gas cartridges can be purchased at sporting goods stores, fishing tackle shops or hobby markets. These are 7/16'' threaded cartridges that can be purchased almost anywhere in the world. In our offer you can find cartridges with the codes SN00043 (300g) and SN00017 (500g).

Parameters

Material: steel, copper

Color: red/black

Weight: 4 kg

Size:

42 x 39.5 cm

Package size: 42.5 x 40 x 19.5 cm

Power: 3.55 kW

The GR-823 universal stove and grill is intended for heating and grilling food in outdoor environments, summer houses and garden sheds (where sufficient ventilation is guaranteed). Disposable cartridges with a direct pressure propane and butane mixture are used as fuel. Cartridges containing liquid propane-butane gas at a constant pressure in the ratio of 30:70 PB are intended for operation of this stove. The cartridge must be manufactured in accordance with EN 417 and have a self-sealing valve with a 7/16" connecting thread. The cartridges are disposable and cannot be refilled.

Please read these instructions carefully before connecting the stove to the gas cartridge. Keep these instructions in a safe place for future reference.

WARNING: A stove that is not properly operated can be very dangerous. Use only in well-ventilated areas.

Technical parameters:

Product category: high-pressure cooker and grill for disposable propane-butane cartridges

Fuel pressure connection: 0-7000 mbar.

Nozzle diameter: 0.27 mm

Power (max): 3.55 kW

Nominal temperature (max): 3.05 cal/hr

Gas consumption (max.): 275 g/h

Sealing ring: 12x8 mm

Product description and components:

The GR-823 Multipurpose Cooker & Grill is used to heat food in a pot, grill or cook food on a large frying pan. Compared to wood or charcoal grills, gas has no odor, smoke or sparks. The device is lightweight and compact, and can be easily disassembled and transported.

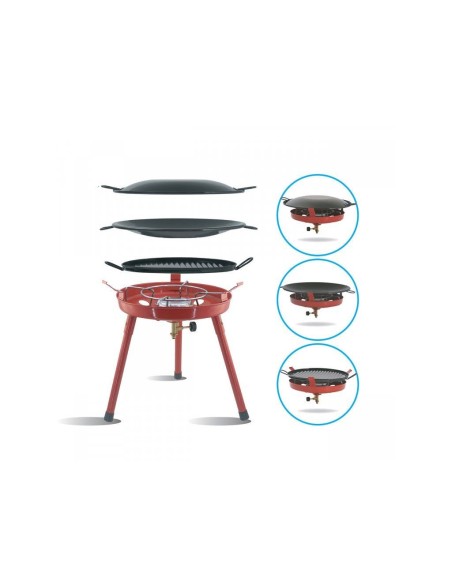

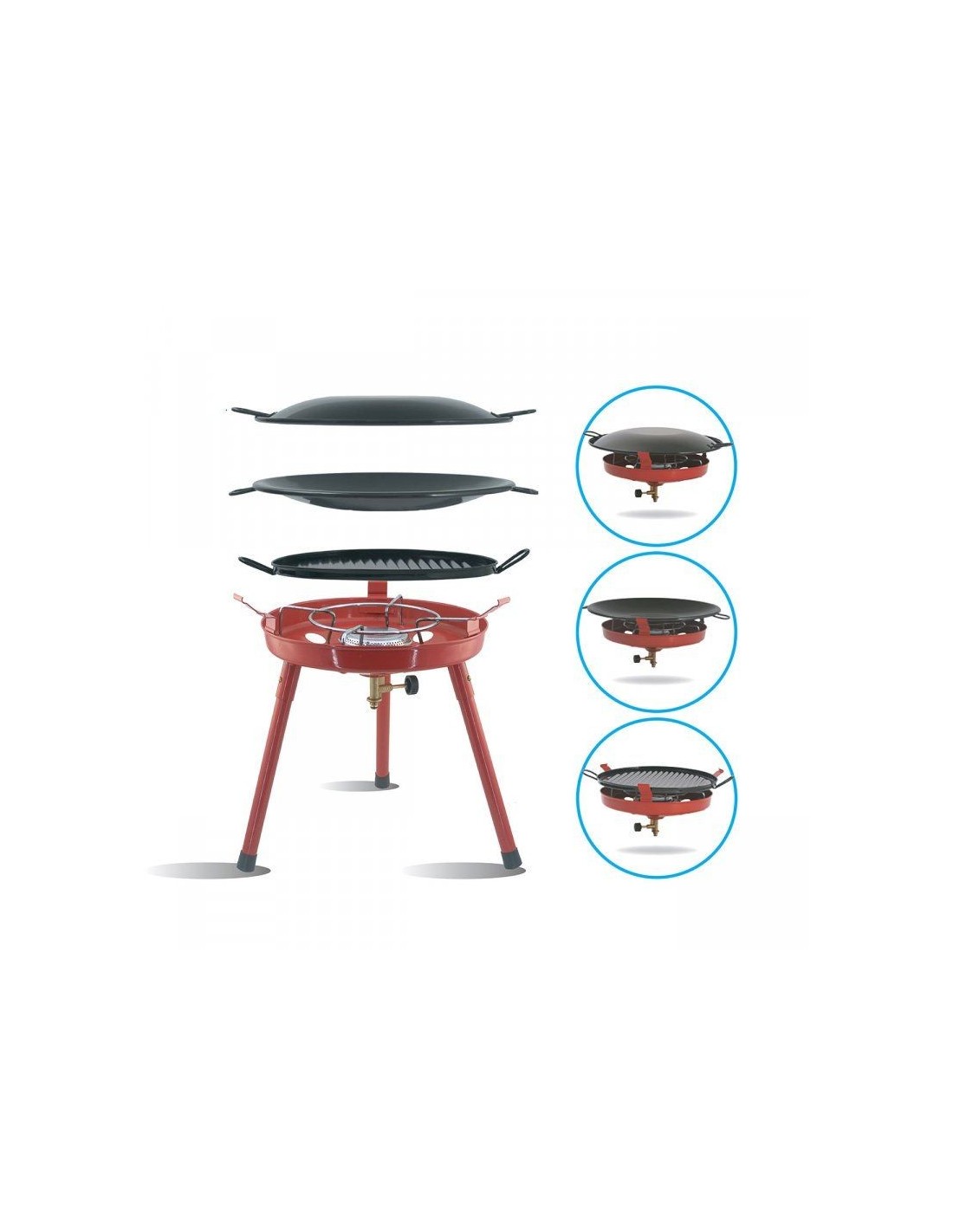

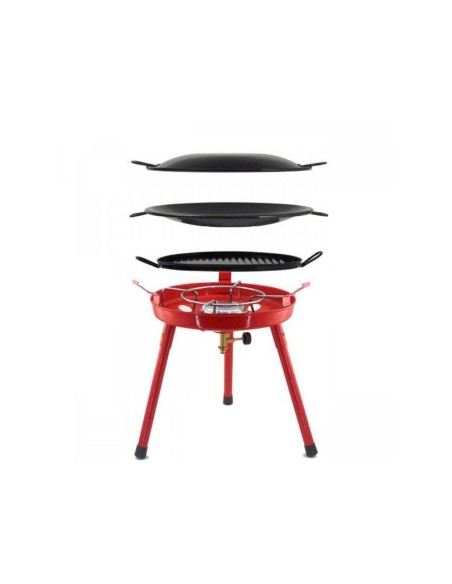

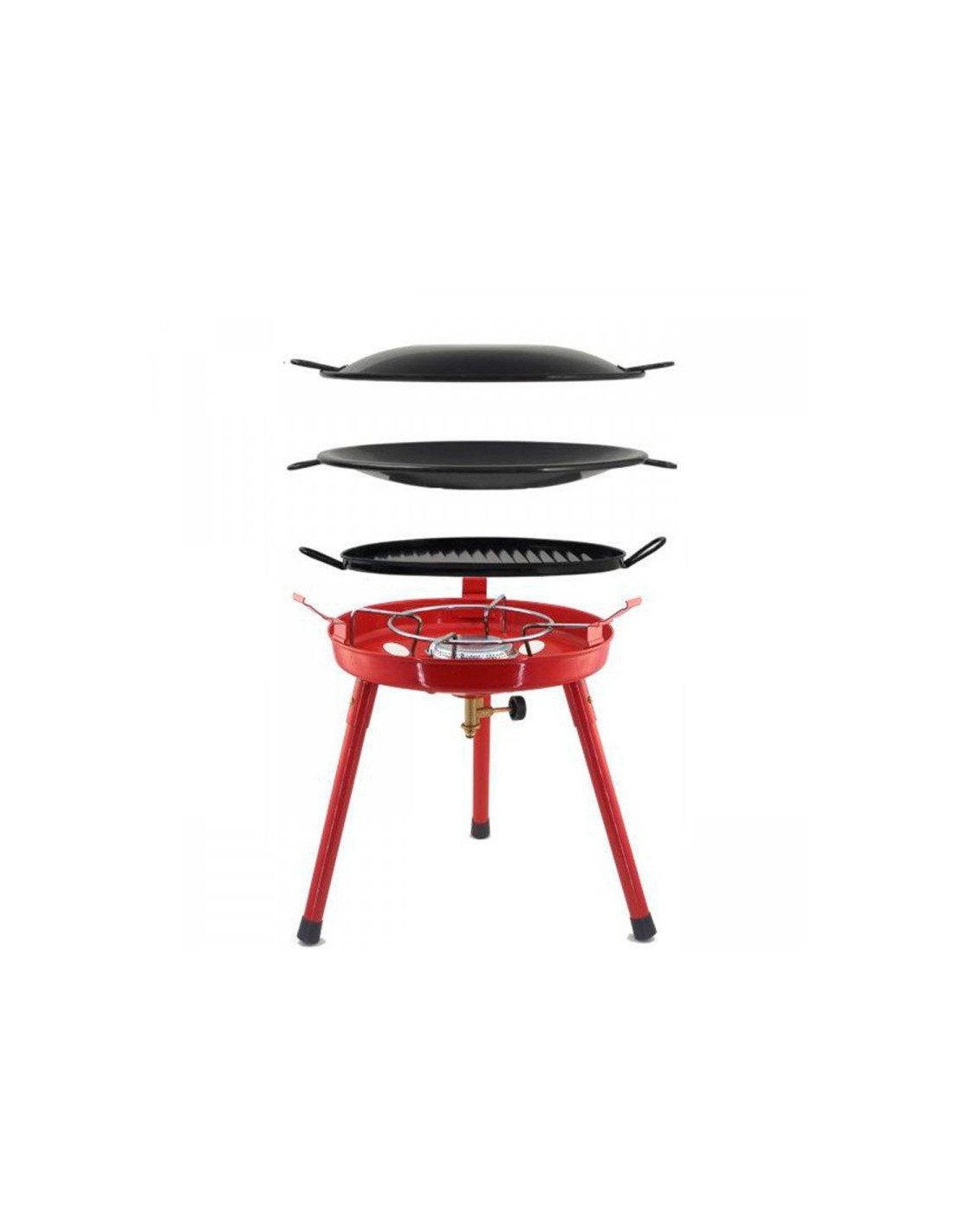

Product components:

Stove body with burner and removable legs

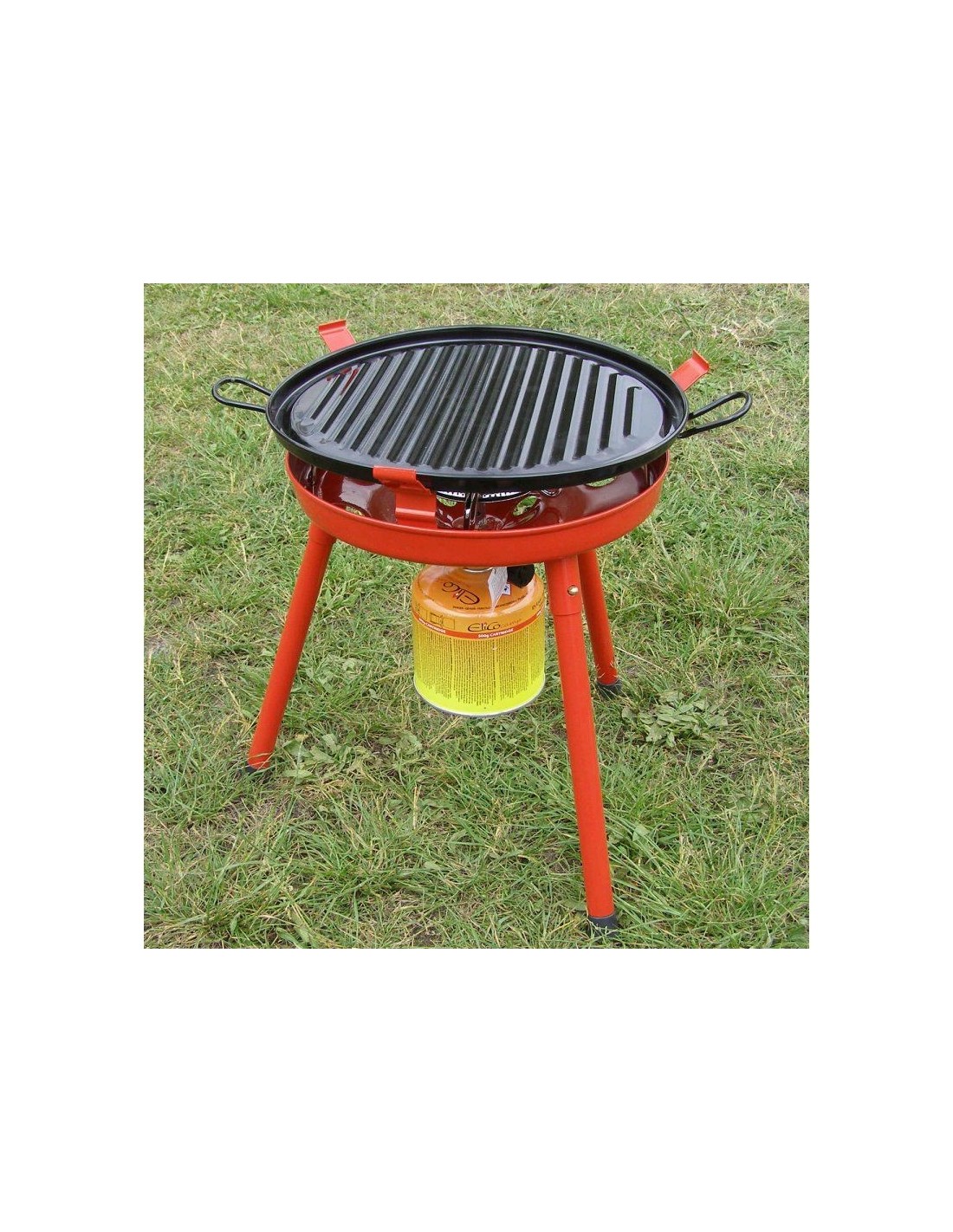

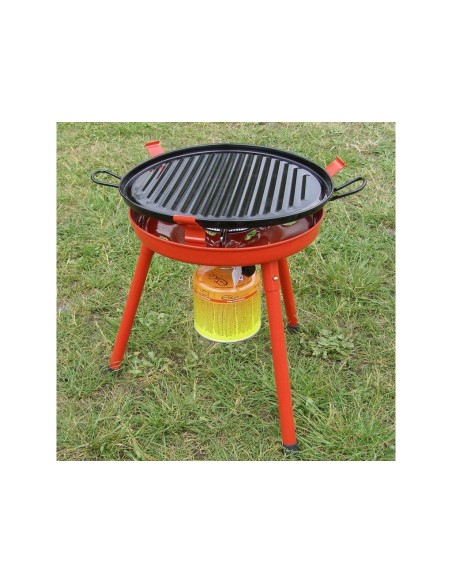

Grill plate

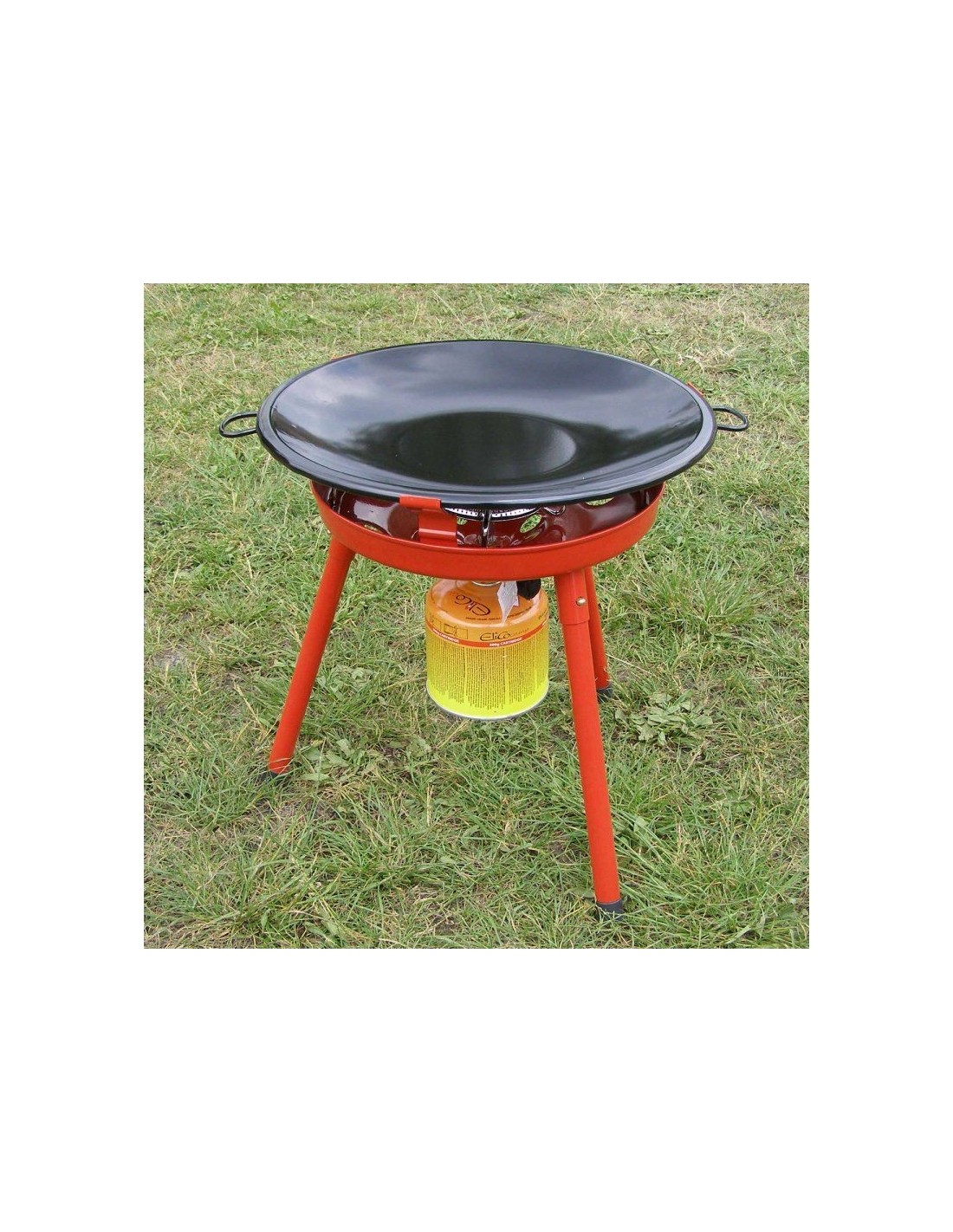

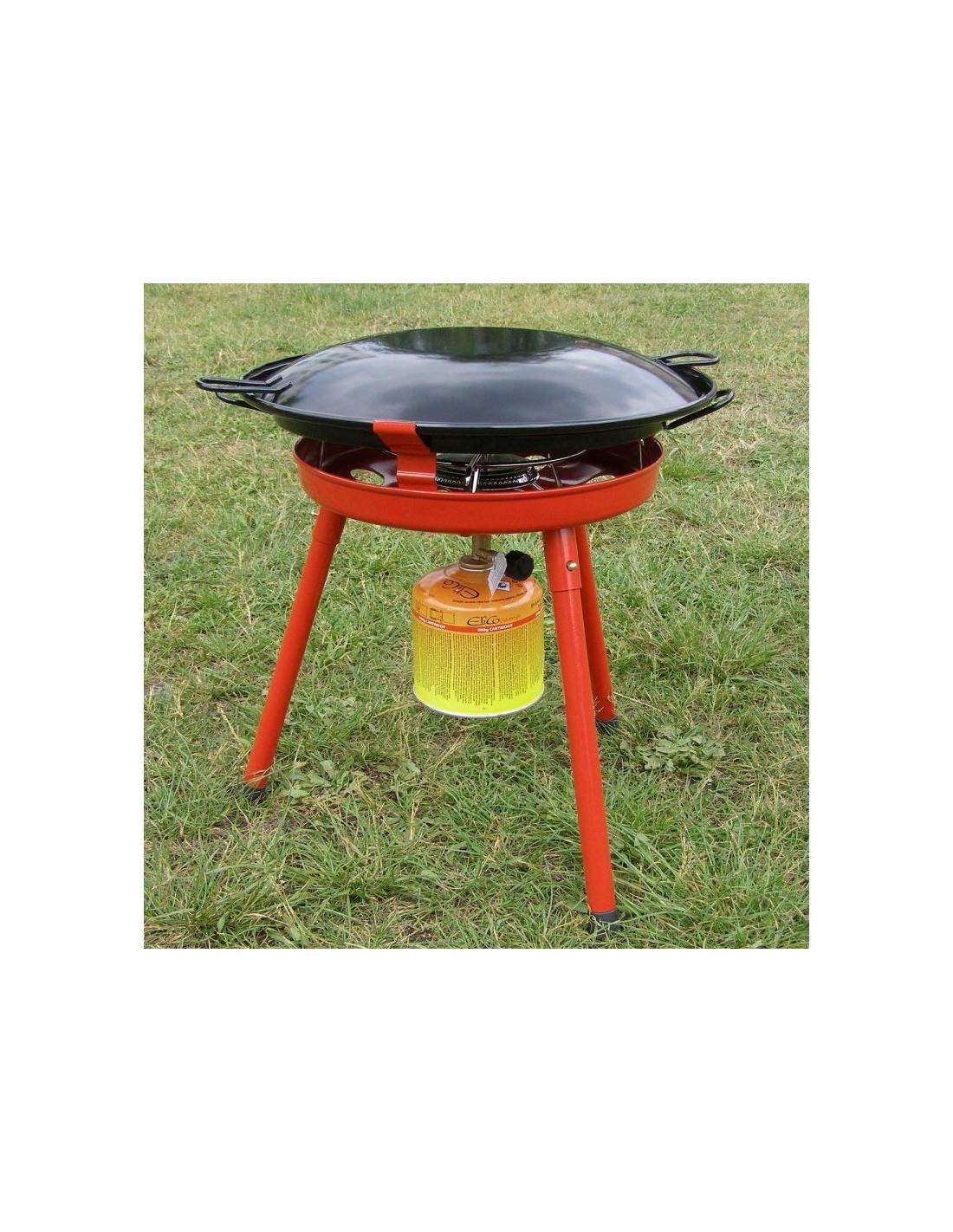

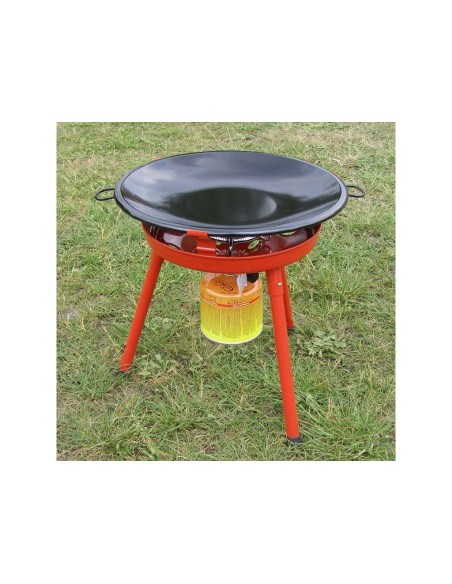

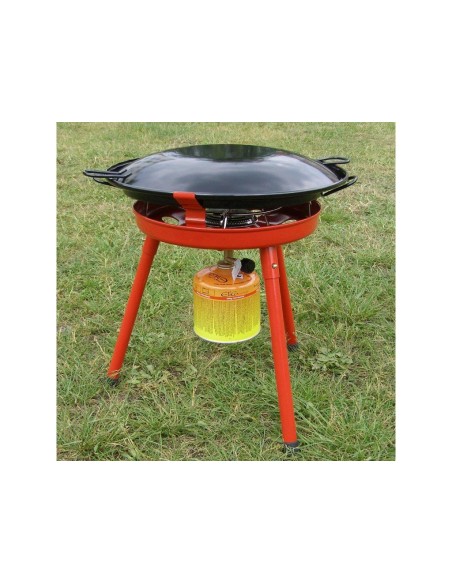

Large frying pan (also serves as a lid)

Before use:

IMPORTANT! - Safety requirements

According to these instructions, the stove may only be used by an adult over the age of 18! When operating the stove, the operator must also comply with general fire safety regulations!

Under no circumstances should children be allowed to operate the stove!

The oven must be kept out of the reach of children.

Attention: This product consumes air (oxygen) and produces carbon dioxide during operation. Do not light or use this appliance in unventilated areas, rooms, tents or vehicles. It is dangerous to heat the stove in a closed room, there is a risk of unnoticed carbon monoxide poisoning!

It is forbidden to use the device indoors and in rooms below ground level!

Use the stove only for the purpose for which it was designed (heating pots with liquids and food, grilling, cooking food in a special pan).

Keep the product at a safe distance from flammable materials.

During operation, the stove must be placed on a non-flammable mat and supervised!

Before use, make sure that all screw connections are tight. Check for tightness in a well-ventilated workshop or outdoors, away from sources of ignition/ignition and out of reach of other people!

Parts of the stove may be very hot! Keep out of reach of children! Make sure all parts are cool before disassembling the system.

Never use the product if any part is damaged or missing. Do not use the stove if it is leaking, damaged or not working properly!

If the appliance is not leak-proof (smells of gas), immediately move it outside, away from open flames and in a well-ventilated area where the leak can be detected and stopped. If you want to check the appliance for leaks, do so outdoors. To avoid detecting leaks with an open flame, use a foaming (soap) solution!
