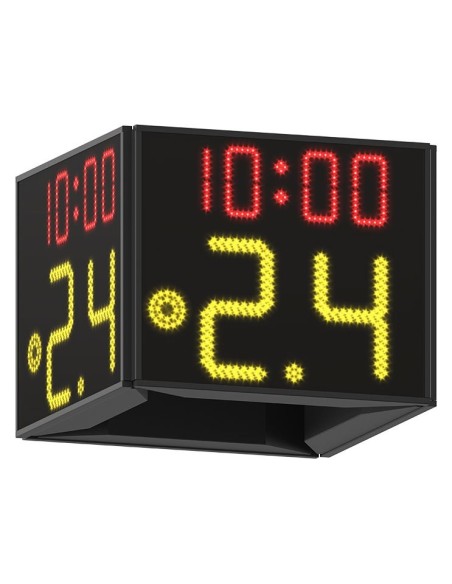

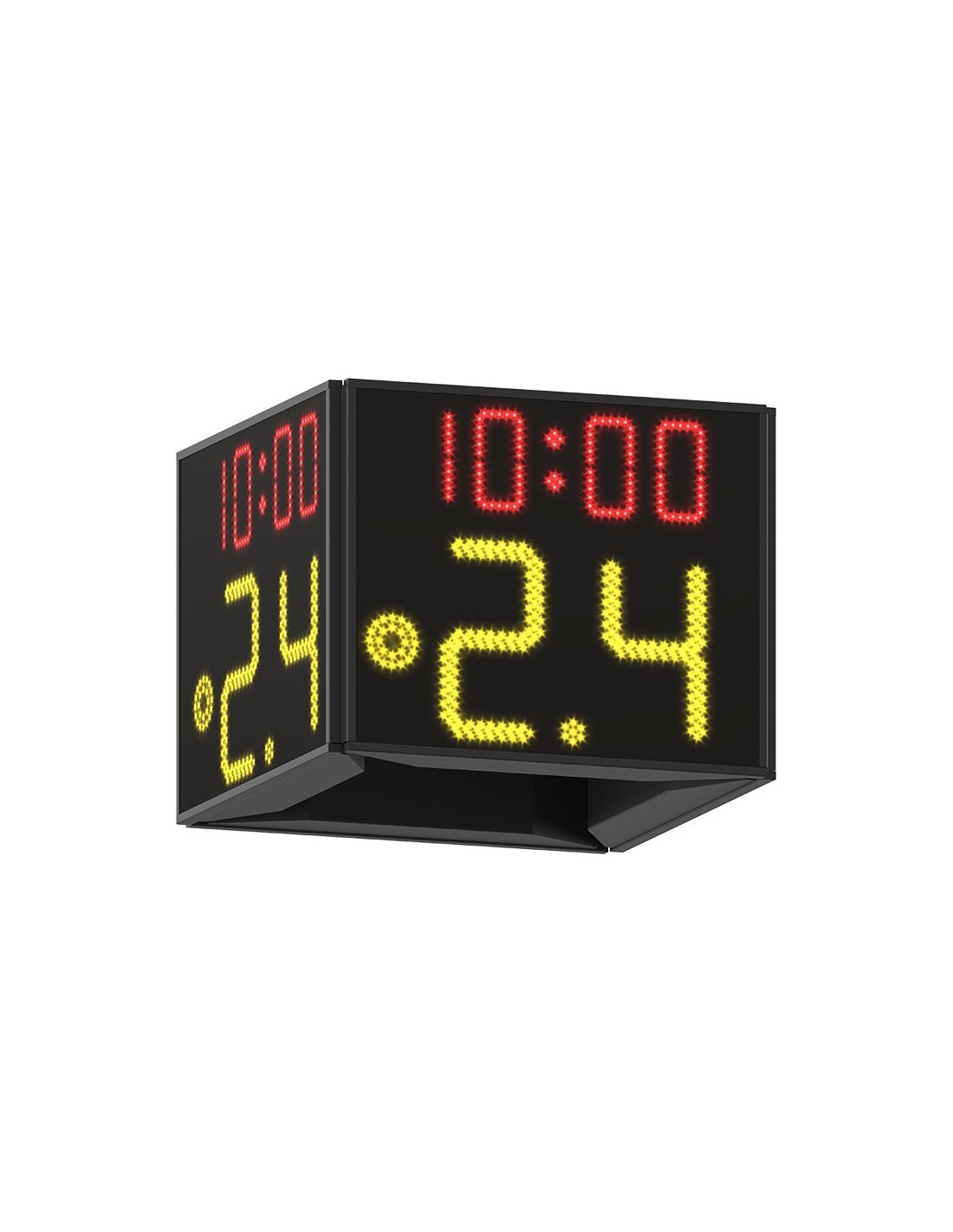

24-second clock: 0-99 seconds, number height 30 cm, visibility 130 m, 150-degree angle.
Timer: 0:00-99:59, number height 14 cm., visibility 70m., 150 degree angle.
Usage: Indoor
Audible signal: 120 dB at 1 m.
Control panel: Connects to CONSOLE700, Time-Console-03
Power supply: 100-240Vac, 50-60Hz, 110VA
Dimensions: Length 72 cm. x height 60 cm. x width 72 cm.
Weight: 38 kg.
Front coating: No additional protection required, the coating meets the requirements of DIN18032-3 and UNI 9554 standards for ball impact resistance.
Cable length: 50 m. (can be ordered with radio control, FS2 module required)
Other: The diameter of the yellow light is 8 cm.
No need for a front protective cover. Meets DIN 18032-3 and UNI 9554:1989 standards (resistant to ball impacts). This saves you money by not having to purchase a protective cover, while maintaining clear visibility and easy access to the scoreboard.
A 50 m long cable is included for connection to the control console. You can also connect the control console remotely using a radio receiver (purchased separately).
The durable frame is made of powder-coated aluminum. The front is made of anti-reflective polycarbonate.
The signboard is clearly visible, all signs are made of high-quality SMD LED bulbs with an average lifespan of 100,000 hours.
The sound signal can be triggered manually or automatically after the time has expired. The sound signal strength is 120 dB at a distance of one meter, and you can adjust the duration and intensity.
The yellow light automatically turns on at the end of the game.
Additionally, you can order a waterproof coating for electronic parts, which is recommended if you use the scoreboard in swimming pools or ice arenas.
Can be used with other light board models
Warranty – 2 years
Required power supply – 100-240Vac, 50-60Hz, 300VA.
Works with the Console700 control panel; Time-Console-03 control panel.
